3PEAK

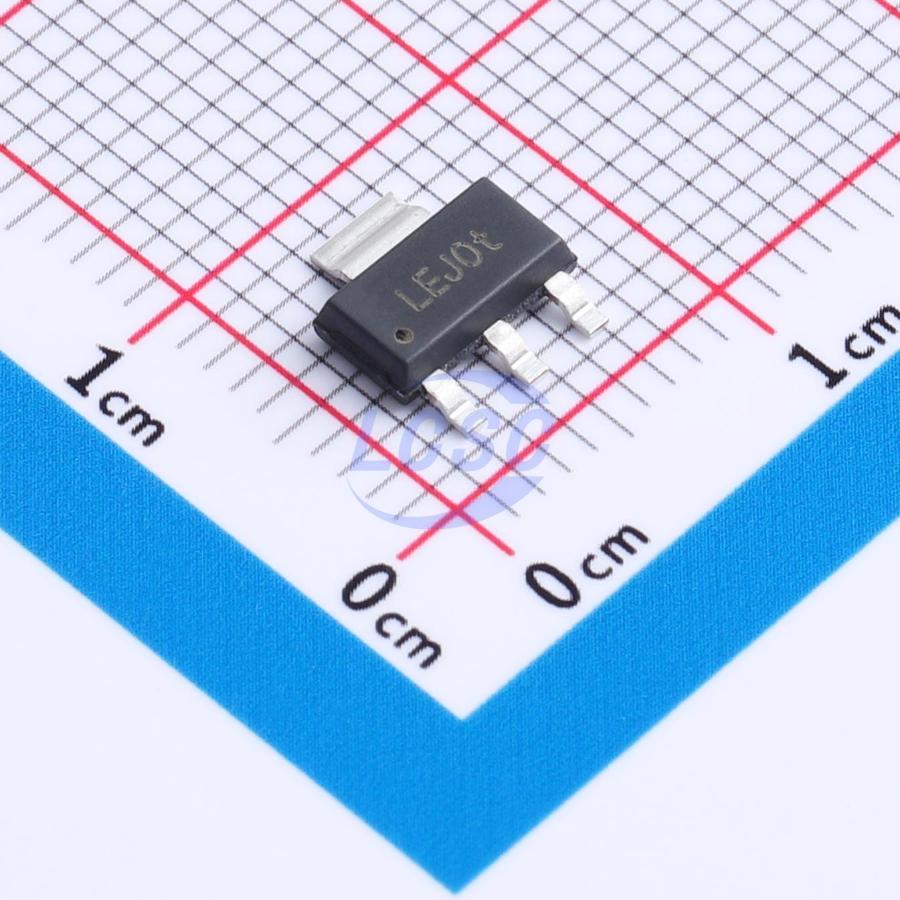

TPL508033-ST4R

3.3V Positive Fixed SOT-223-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators

SOT-223-3RoHSActive

IC REG LINEAR 3.3V 800mA SOT-223-3

Manufacturer: 3PEAK
Manufacturer part #: TPL508033-ST4R
Store part #: C48618265
Package / case: SOT-223-3
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

6,155 in stock

#C48618265

Stock & price checked 29 h ago

Quantity	Unit price	Pack price
5+	₹15.20	₹76.00
50+	₹11.75	₹587.50
150+	₹10.03	₹1,504.50
500+	₹8.75	₹4,375.00
2,500+	₹7.70	₹19,250.00
4,000+	₹7.18	₹28,720.00

Quantity (min 5, multiples of 5)

5 × ₹15.20

₹76.00

excl. GST

₹89.68 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

TPL508033-ST4R

₹76.00 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 3.3V
Number of Outputs: 1
Operating Temperature: -40℃~+125℃
Supply Current (Iq): 800uA
Output Configuration: Positive
Operating Voltage: 16V
Output Current: 800mA
Output Type: Fixed
Features: Over Current Protection;Thermal shutdown

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.354 g

Overview

The TPL5080x series is a low-dropout voltage regulator with a typical dropout voltage of 320mV at 800mA load current. The series offers two fixed output voltages: 3.3V and 5V, with current limiting and thermal shutdown protection. The TPL5080x series supports a wide range of output capacitors from 2.2μF to 1000μF, with ESR ranging from 0.001Ω to 5Ω. Additionally, the series integrates overcurrent protection and overtemperature protection. The TPL5080x series is available in a SOT223-3 package, with a guaranteed operating junction temperature range of -40°C to +125°C.

Applications

AC driver power stage module
Commercial network and server power supplies
Industrial AC/DC power supplies
Ultrasonic scanners
Servo drive control modules

Key features

Input voltage: 2.7V to 16V
Output voltage: Fixed 5V and 3.3V
Output accuracy ±1% at room temperature, ±2% over line regulation, load regulation, and full operating temperature range
Maximum output current: 800mA
Dropout voltage: 320mV typical at 800mA load current
Stable with output capacitors of 2.2μF to 1000μF, ESR range 0.001Ω to 5Ω
Junction temperature range: -40°C to +125°C
Package option: SOT223-3
