3PEAKDatasheet (PDF)

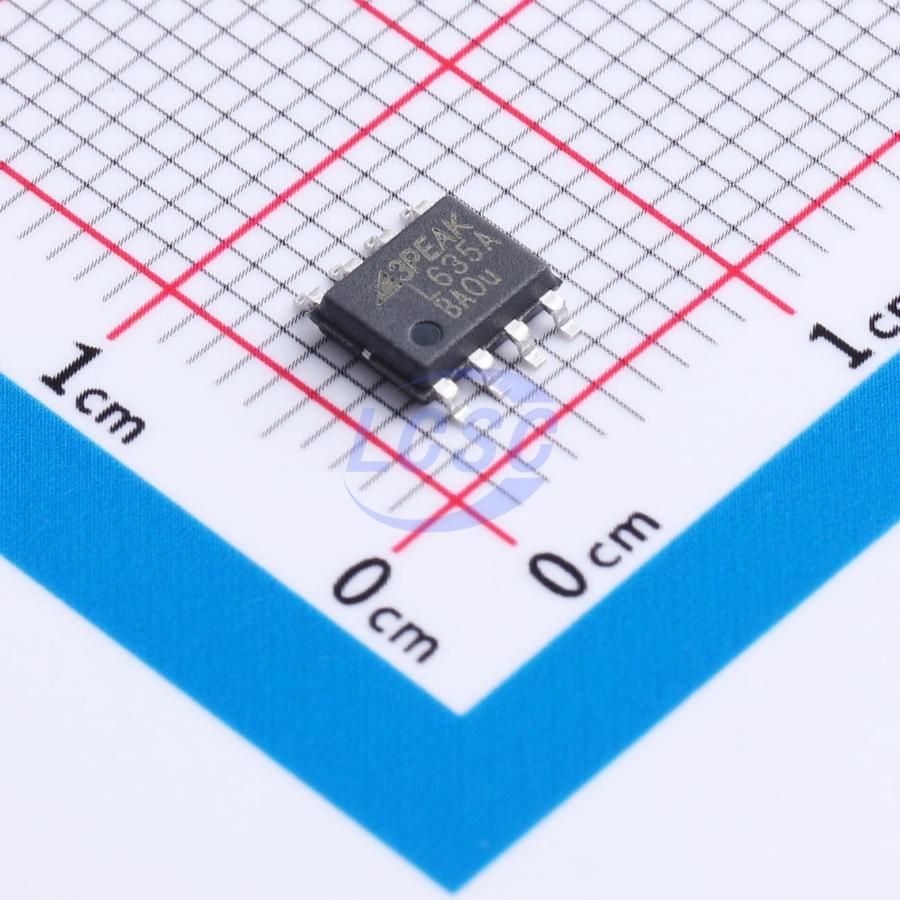

TPL6305AD-ES1R
500mV~5.2V Positive Adjustable ESOP-8 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
ESOP-8ROHS3 CompliantActive
IC REG LINEAR 500mV~5.2V 3A ESOP-8
- Manufacturer
- 3PEAK
- Manufacturer part #
- TPL6305AD-ES1R
- Store part #
- C39047511
- Package / case
- ESOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,828 in stock
#C39047511
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹134.48 | ₹134.48 |
| 10+ | ₹106.18 | ₹1,061.80 |
| 30+ | ₹92.04 | ₹2,761.20 |
| 100+ | ₹78.12 | ₹7,812.00 |
| 500+ | ₹69.85 | ₹34,925.00 |
| 1,000+ | ₹65.50 | ₹65,500.00 |
1 × ₹134.48
₹134.48
excl. GST
₹158.69 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
TPL6305AD-ES1R
₹134.48 for 1 + GST
Specifications
- Output Voltage
- 500mV~5.2V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃
- Output Configuration
- Positive
- Output Current
- 3A
- Operating Voltage
- 6.5V
- Output Type
- Adjustable
- Features
- Enable control;Built-in soft-start;Over Current Protection;Thermal shutdown;Short Circuit Protection;Input under-voltage protection
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.106 g
Overview
TPL6305 is a 3A high-current, 1.4V low-input-voltage LDO regulator with a maximum ultra-low dropout voltage of only 300mV at full load. TPL6305 supports output voltage adjustment via an external resistor divider, with a range from 0.5V to 5.2V. The low input voltage and ultra-low dropout make TPL6305 an ideal power supply for applications requiring output voltage very close to input voltage. TPL6305 integrates an enable control function for ultra-low standby power consumption. It also provides output soft-start control and excellent transient response. TPL6305 is available in a thermally enhanced 8-pin ESOP package, guaranteed for operation over a temperature range of -40°C to +125°C.
Applications
- Communications Infrastructure
- Telecom and Network Cards
- Motherboards and Peripheral Cards
- Computing Systems
Key features
- Input voltage range: 1.4V to 6.5V
- Adjustable output voltage: 0.5V to 5.2V
- ±2% accuracy over line regulation, load regulation, and operating temperature range
- Maximum output current 3A
- Low dropout voltage: 300mV maximum at 3A
- Output enable control
- Built-in output soft-start control
- Excellent transient response
- High PSRR:
- 63dB at 1kHz
- 35dB at 100kHz
- Output voltage noise 24μVRMS (100Hz to 100kHz)
- Stable with 10μF ceramic output capacitor
- Protection features:
- Overcurrent protection
- Overtemperature protection
- Output-to-ground short-circuit protection
- Package: ESOP8
- RoHS compliant
