3PEAKDatasheet (PDF)

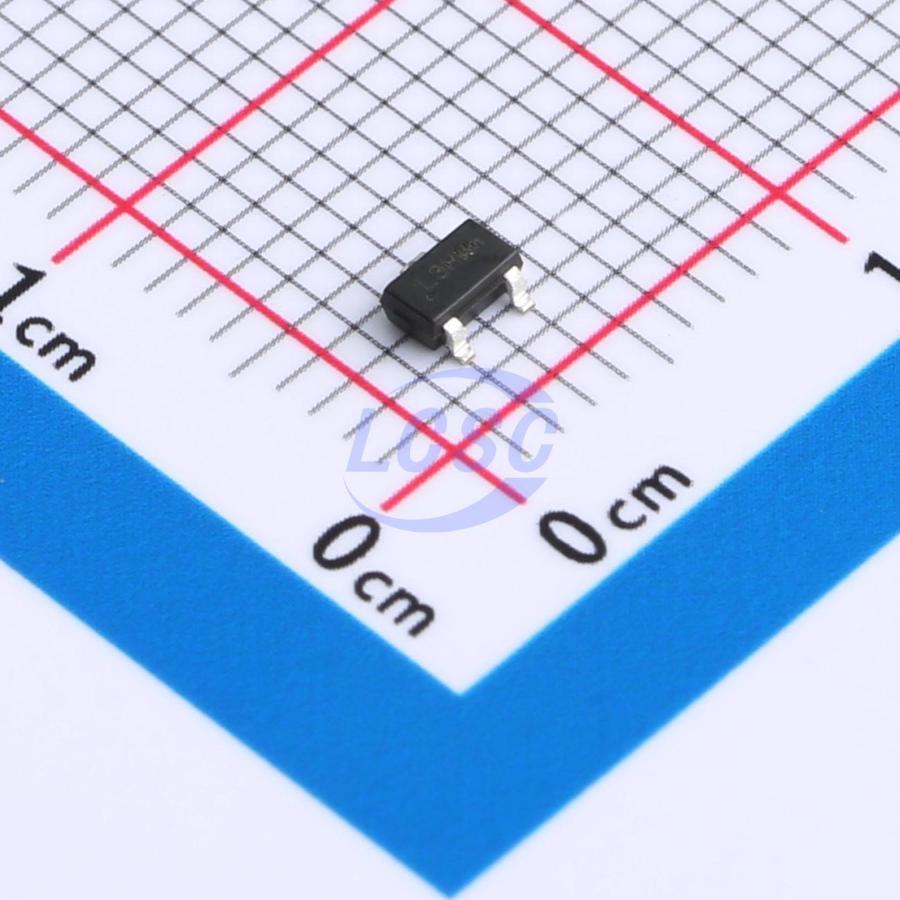

TPL710F28-3TR
2.8V Positive Fixed SOT-23-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23-3ROHS3 CompliantActive
200 mA output, 1 uA Ultra-Low Quiescent Current LDO
- Manufacturer
- 3PEAK
- Manufacturer part #
- TPL710F28-3TR
- Store part #
- C5362233
- Package / case
- SOT-23-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,260 in stock
#C5362233
Stock & price checked 31 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹13.44 | ₹134.40 |
| 100+ | ₹10.40 | ₹1,040.00 |
| 300+ | ₹8.88 | ₹2,664.00 |
| 3,000+ | ₹7.73 | ₹23,190.00 |
| 6,000+ | ₹6.81 | ₹40,860.00 |
| 9,000+ | ₹6.35 | ₹57,150.00 |
10 × ₹13.44
₹134.40
excl. GST
₹158.59 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPL710F28-3TR
₹134.40 for 10 + GST
Specifications
- Output Voltage
- 2.8V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 30uA
- Output Configuration
- Positive
- Output Current
- 200mA
- Operating Voltage
- 6V
- Output Type
- Fixed
- Features
- Enable control;Built-in soft-start;Input under-voltage protection;Over Current Protection;Short Circuit Protection;Thermal shutdown;Output discharge
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.06 g
Overview
Typical 1.4 µA Ultra-low Quiescent Current Input Voltage Range: 2.4 V to 6 V Output Voltage Options: - Fixed: 1 V, 1.2 V, 1.5 V, 1.8 V, 2.5 V, 2.8 V, 3 V, 3.3 V, 3.6 V ± 1% Output Voltage Accuracy under Room Temperature Maximum Output Current: 200 mA Low Shutdown Current Low Dropout Voltage: 170 mV at 200 mA Current Limit and Thermal Protection Stable with 2.2 µF Ceramic Capacitor Active Output Discharge While Disable Soft-start Limits Input Current Surge During Enable Junction Temperature Range: -40°C to +125°C Packages: SOT23-3, SOT23-5, and DFN1x1-4
Applications
- Handheld Devices with Battery Power Supply
- Portable Devices with Battery Power Supply
- Wearable Application, Bluetooth Headsets
- Wireless and IoT modules
- Personal Electronics, Personal Healthcare
