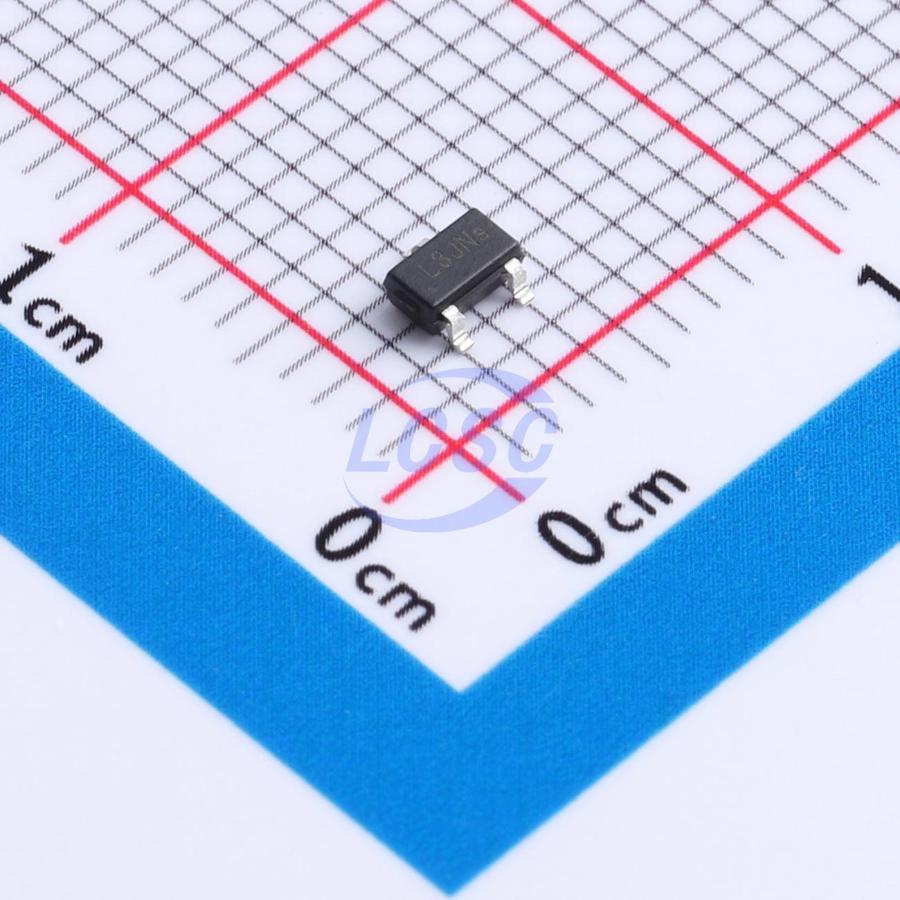

3PEAK

TPL710F33-3TR

3.3V Positive Fixed SOT-23-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS

SOT-23-3ROHS3 CompliantActive

Manufacturer: 3PEAK
Manufacturer part #: TPL710F33-3TR
Store part #: C5370526
Package / case: SOT-23-3
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,045 in stock

#C5370526

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
5+	₹13.80	₹69.00
50+	₹10.68	₹534.00
150+	₹9.10	₹1,365.00
500+	₹7.94	₹3,970.00
2,500+	₹7.00	₹17,500.00
5,000+	₹6.52	₹32,600.00

Quantity (min 5, multiples of 5)

5 × ₹13.80

₹69.00

excl. GST

₹81.42 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

TPL710F33-3TR

₹69.00 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 3.3V
Operating Temperature: -40℃~+125℃
Supply Current (Iq): 1.4uA
Output Configuration: Positive
Output Current: 200mA
Operating Voltage: 6V
Output Type: Fixed
Features: Enable control;Built-in soft-start;Input under-voltage protection;Over Current Protection;Short Circuit Protection;Thermal shutdown;Output discharge

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.023 g

Overview

TPL710 is a family of CMOS-based low quiescent current LDO regulators with enable control. The series supports output currents up to 200 mA with a typical quiescent current of only 1.4 µA. The TPL710 family remains stable with small ceramic output capacitors having low ESR in the range of 2.2 μF to 10 μF. The series features fast transient response during dynamic load current steps or rises, making it particularly suitable for dynamic load current variations under heavy-load conditions. The TPL710 family incorporates current limiting and thermal protection to enhance reliability. The series offers a fixed output voltage range of 1 V to 3.6 V, with ±1% output voltage accuracy, line regulation, and load regulation at room temperature. The TPL710 family is guaranteed over an operating junction temperature range of −40°C to +125°C and is available in SOT23-3, SOT23-5, and DFN1x1-4 packages.

Applications

Battery-powered handheld devices
Battery-powered portable devices
Wearable applications, Bluetooth earphones
Wireless and IoT modules
Personal electronics, personal healthcare devices

Key features

Ultra-low quiescent current: 1.4 µA typical
Input voltage range: 2.4 V to 6 V
Output voltage options (fixed): 1 V, 1.2 V, 1.5 V, 1.8 V, 2.5 V, 2.8 V, 3 V, 3.3 V, 3.6 V
Output voltage accuracy: ±1% at room temperature
Maximum output current: 200 mA
Low shutdown current
Low dropout voltage: 170 mV at 200 mA
Current limiting and thermal protection
Stable operation with 2.2 μF ceramic capacitor
Active output discharge when disabled
Soft-start limits input current surge during enable
Junction temperature range: −40°C to +125°C
Packages: SOT23-3, SOT23-5, and DFN1x1-4
