3PEAKDatasheet (PDF)

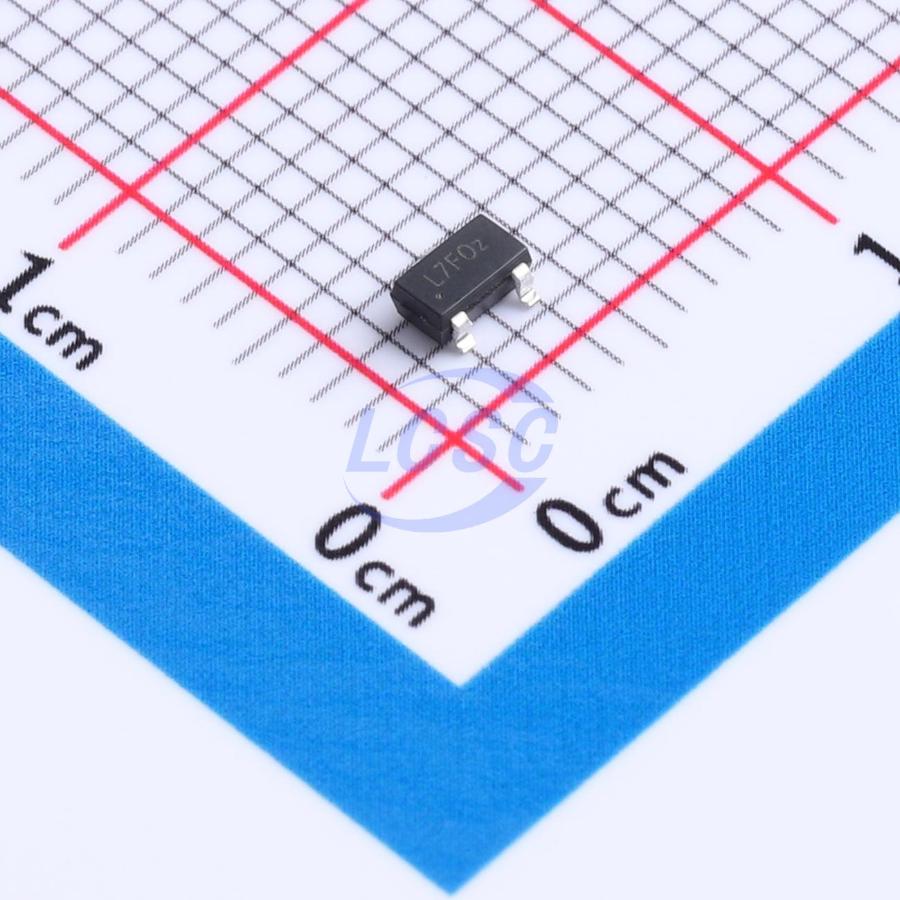

TPL720F18-3TR
1.8V Positive Fixed SOT-23-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23-3ROHS3 CompliantActive
- Manufacturer
- 3PEAK
- Manufacturer part #
- TPL720F18-3TR
- Store part #
- C38737233
- Package / case
- SOT-23-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,050 in stock
#C38737233
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.38 | ₹71.90 |
| 50+ | ₹11.13 | ₹556.50 |
| 150+ | ₹9.49 | ₹1,423.50 |
| 500+ | ₹8.27 | ₹4,135.00 |
| 3,000+ | ₹7.29 | ₹21,870.00 |
| 6,000+ | ₹6.80 | ₹40,800.00 |
5 × ₹14.38
₹71.90
excl. GST
₹84.84 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPL720F18-3TR
₹71.90 for 5 + GST
Specifications
- Output Voltage
- 1.8V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Operating Voltage
- 6V
- Output Current
- 400mA
- Output Type
- Fixed
- Features
- Enable control;Built-in soft-start;Input under-voltage protection;Over Current Protection;Short Circuit Protection;Thermal shutdown;Output discharge
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.024 g
Overview
The TPL720 series is a family of CMOS-based low quiescent current LDO regulators with enable control. The series supports a maximum output current of 400mA with a typical quiescent current of only 1.4µA. The TPL720 series maintains stability with low-ESR small ceramic output capacitors ranging from 2.2µF to 10µF. The series features fast transient response during dynamic load current rise and fall, making it particularly suitable for applications with dynamic load current variations. The TPL720 series incorporates current limiting and thermal protection, ensuring high reliability. The series offers fixed output voltages from 1V to 3.3V, with ±1% output voltage accuracy, line regulation, and load regulation at room temperature. The TPL720 series is guaranteed to operate over a junction temperature range of -40℃ to +125℃. The series is available in SOT23-3, SOT23-5, and SOT89-3 packages.
Applications
- Battery-powered handheld devices
- Battery-powered portable devices
- Wearable applications
- Wireless and IoT modules
- Personal electronics
Key features
- Typical 1.4µA ultra-low quiescent current
- Input voltage range: 2.4V to 6V
- Output voltage options: fixed 1V, 1.2V, 1.8V, 2.5V, 2.8V, 3V, 3.3V
- ±1% output voltage accuracy at room temperature
- Maximum output current: 400mA
- Low shutdown current
- Dropout voltage: 350mV at 400mA
- Current limiting and thermal protection
- Stable with 2.2µF ceramic capacitor
- Active output discharge when disabled
- Soft-start limits input current surge during enable
- Junction temperature range: -40℃ to +125℃
- Packages: SOT23-3, SOT23-5, SOT89-3
