3PEAKDatasheet (PDF)

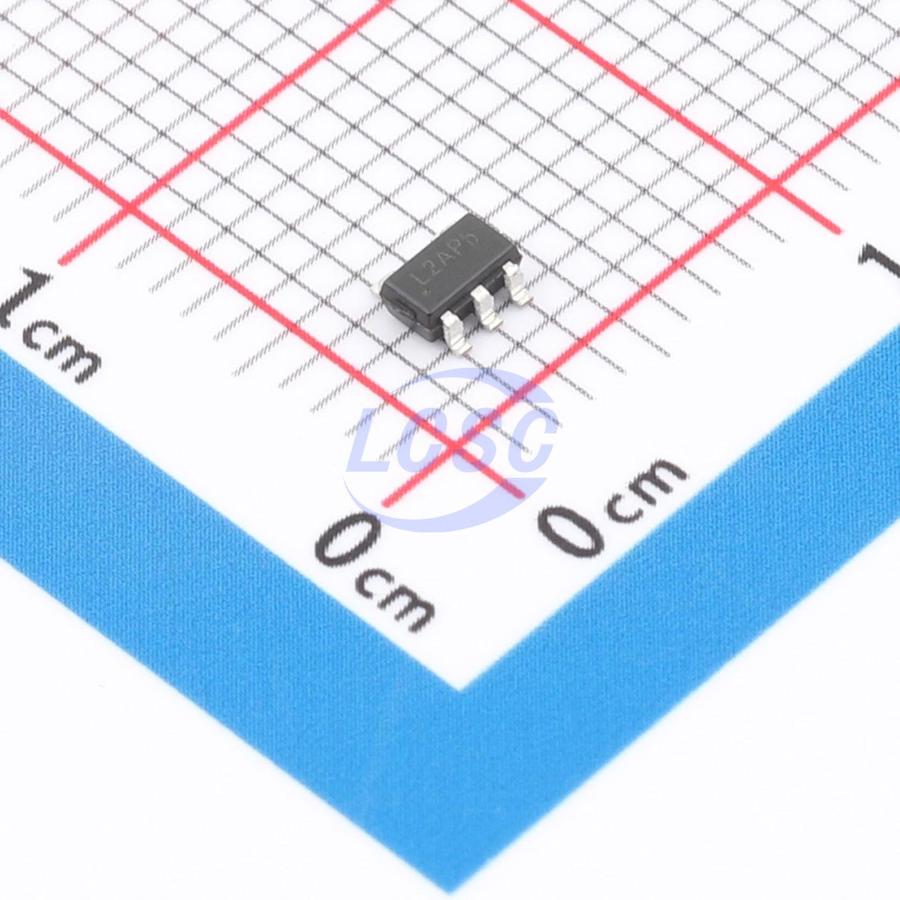

TPL740ADJ-5TR
800mV~5V Positive Adjustable SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23-5ROHS3 CompliantActive
IC REG LINEAR 800mV~5V 500mA SOT-23-5
- Manufacturer
- 3PEAK
- Manufacturer part #
- TPL740ADJ-5TR
- Store part #
- C2978933
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,180 in stock
#C2978933
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.61 | ₹78.05 |
| 50+ | ₹12.07 | ₹603.50 |
| 150+ | ₹10.29 | ₹1,543.50 |
| 500+ | ₹8.97 | ₹4,485.00 |
| 3,000+ | ₹7.91 | ₹23,730.00 |
| 6,000+ | ₹7.38 | ₹44,280.00 |
5 × ₹15.61
₹78.05
excl. GST
₹92.10 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPL740ADJ-5TR
₹78.05 for 5 + GST
Specifications
- Output Voltage
- 800mV~5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃
- Supply Current (Iq)
- 49uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 500mA
- Output Type
- Adjustable
- Features
- Enable control;Input under-voltage protection;Short Circuit Protection;Thermal shutdown;Over Current Protection
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.062 g
Overview
The TPL740 series is a family of high-performance, low-dropout linear regulators. The series supports output currents up to 500 mA, featuring low quiescent current and high power supply rejection ratio. The TPL740 series maintains stability with ceramic output capacitors ranging from 2.2 μF to 10 μF. The series offers a high PSRR of up to 60 dB at 1 kHz, making it well-suited for noise-sensitive applications where effective suppression of high noise generated by upstream power supplies is required. A quiescent current as low as 49 μA and a shutdown current of only 20 nA make the TPL740 series an ideal choice for battery-powered portable devices. Foldback current limiting and thermal overload protection circuits enhance reliability under heavy load conditions. The TPL740 series is available in multiple output voltage options, including fixed and adjustable versions, with output voltage accuracy of ±2% across all operating conditions. The operating junction temperature range is guaranteed from −40°C to +125°C.
Applications
- Battery-powered handheld devices
- Point-of-sale terminals
- Video surveillance
- Wireless and IoT modules
Key features
- Input voltage range: 2.4 V to 5.5 V
- Output voltage options: Fixed: 1.2 V, 1.8 V, 2.5 V, 2.8 V, 3 V, 3.3 V; Adjustable: 0.8 V to 5 V
- High output accuracy: ±1% typical at room temperature; ±2% over full operating conditions
- Maximum output current: 500 mA
- Low dropout voltage: 400 mV at 500 mA
- Low quiescent and shutdown current
- Foldback current limiting and thermal protection
- Stable with 2.2 μF ceramic capacitor
- Inrush input current limiting during startup
- Thermal shutdown protection
- Junction temperature range: −40°C to +125°C
- Package options: SOT23-5, SOT89-3, DFN1×1-4
