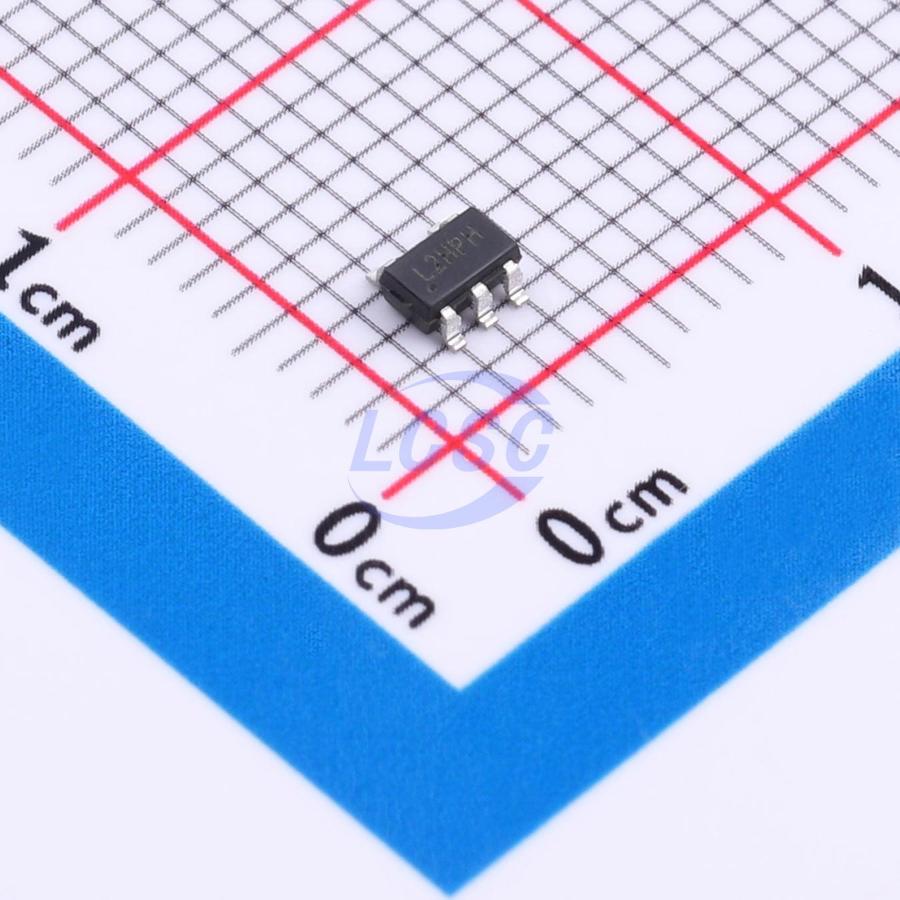

TPL740F28-5TR

The TPL740 series are high-performance, low-dropout linear regulators. The TPL740 series supports up to 500 mA output current with low quiescent current and high PSRR. The TPL740 series delivers stable performance with 2.2 μF to 10 μF ceramic output capacitors. With PSRR of up to 60 dB at 1 kHz, the TPL740 series is well suited for power-sensitive applications where upstream power supply noise is significant. Quiescent current as low as 49 μA and shutdown current of only 20 nA make the TPL740 series an ideal choice for battery-powered portable devices. Current-limiting foldback and thermal overload protection circuits enhance reliability under heavy-load conditions. The TPL740 series is available in multiple output voltage options, including fixed and adjustable versions, with ±2% output voltage accuracy under operating conditions. The TPL740 series is guaranteed to perform over a junction temperature range of -40°C to +125°C.

Applications

• Battery-powered handheld devices
• Point-of-sale (POS) systems
• Video surveillance
• Wireless and IoT modules

Key features

• Input voltage range: 2.4 V to 5.5 V
• Output voltage options:
• Fixed voltage: 1.2 V, 1.5 V, 1.8 V, 2.5 V, 2.7 V, 2.8 V, 2.9 V, 3 V, 3.3 V
• Adjustable voltage: 0.8 V to 5 V
• High output accuracy:
• Typical ±1% at room temperature
• ±2% over operating conditions
• Maximum output current: 500 mA
• Dropout voltage: 400 mV at 500 mA
• Low quiescent current and shutdown current
• Foldback current limiting and thermal protection
• Stable with 2.2 μF ceramic capacitor
• Inrush input current limiting during startup
• Thermal shutdown protection
• Junction temperature range: -40°C to +125°C
• Package options: SOT23-5, SC70-5, SOT89-3, DFN1x1-4
