3PEAKDatasheet (PDF)

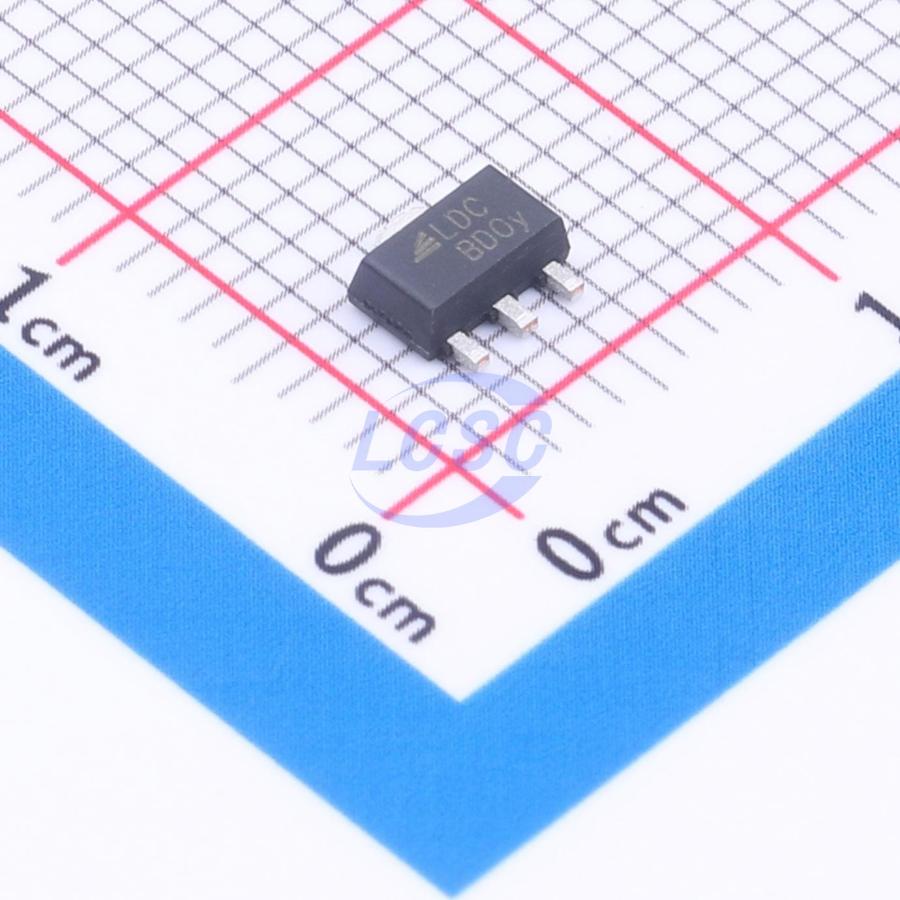

TPL803133-89TR
3.3V Positive Fixed SOT-89-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-89-3ROHS3 CompliantActive
- Manufacturer
- 3PEAK
- Manufacturer part #
- TPL803133-89TR
- Store part #
- C45341931
- Package / case
- SOT-89-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,160 in stock
#C45341931
Stock & price checked 26 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹25.35 | ₹126.75 |
| 50+ | ₹19.50 | ₹975.00 |
| 150+ | ₹16.99 | ₹2,548.50 |
| 500+ | ₹13.85 | ₹6,925.00 |
| 2,500+ | ₹12.46 | ₹31,150.00 |
| 4,000+ | ₹11.63 | ₹46,520.00 |
5 × ₹25.35
₹126.75
excl. GST
₹149.57 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
TPL803133-89TR
₹126.75 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃
- Supply Current (Iq)
- 3uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 40V
- Output Type
- Fixed
- Features
- Enable control;Input under-voltage protection;Over Current Protection;Thermal shutdown
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.198 g
Overview
The TPL8031 series supports an operating voltage range of 3V to 40V (maximum transient voltage 45V). This series is a low-dropout linear regulator with an ultra-low quiescent current (typical 3μA) and a maximum output current capability of 300mA. These features make the TPL8031 series an ideal solution for battery-powered handheld devices, point-of-sale terminals, power tools, and wireless modules. The series offers fixed output voltage options of 5V and 3.3V, supports a wide output capacitance range of 1μF to 200μF, with ESR ranging from 0.001Ω to 5Ω. In addition, the TPL8031 series integrates overcurrent protection and overtemperature protection. The operating ambient temperature range of this series is -40°C to +125°C.
Applications
- Battery-powered handheld devices
- Point-of-sale terminals and power tools
- Instrumentation and smoke detectors
- Industrial control
- Wireless and IoT modules
Key features
- Input voltage: 3V to 40V
- Output voltage: fixed 5V and 3.3V
- Output voltage accuracy of ±2% over line regulation, load regulation, and full operating temperature range
- Low current consumption: 400nA shutdown current, 3μA typical quiescent current
- Maximum output current: 300mA
- Low dropout voltage: 440mV typical at 200mA load current
- Stable with output capacitance of 1μF to 200μF and ESR range of 0.001Ω to 5Ω
- Integrated protection: overcurrent protection, overtemperature protection
- Package options: SOT89-3, SOT23-5, SOT223-3
