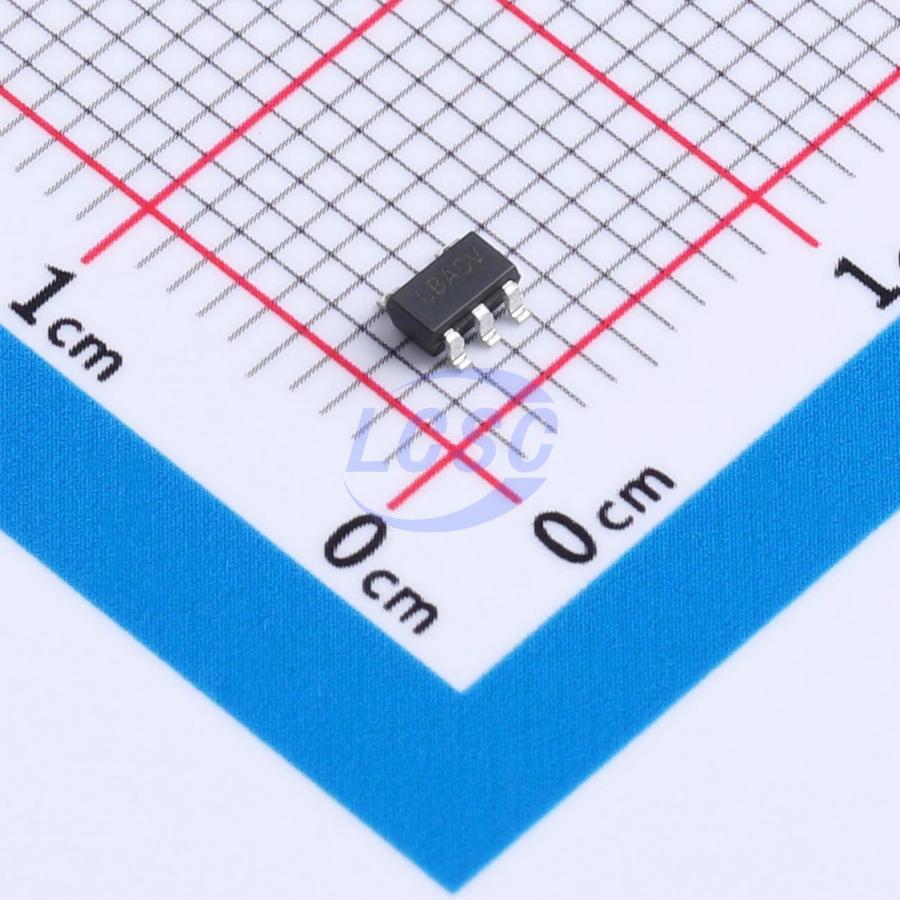

TPL8032AD-S5TR

The TPL8032 series are 300 mA high-PSRR, ultra-low-noise, low-dropout linear regulators with an input voltage range up to 20 V. The series supports both adjustable output voltage from 1.22 V to 18 V via an external resistor divider and fixed output voltages from 1.5 V to 5 V. The TPL8032 series operates stably with ceramic output capacitors ranging from 2.2 μF to 100 μF. The series features high PSRR of 79 dB at 1 kHz and ultra-low noise of 5.68 μV_RMS. These characteristics make the TPL8032 series well-suited for noise-sensitive applications such as high-performance analog equipment or high-definition imaging devices, where suppression of large ripple and noise from upstream power supplies is required. In addition, output short-circuit protection and thermal protection enhance system reliability across a wide range of operating conditions. The TPL8032 series is available in a SOT23-5 package with a guaranteed junction temperature range of -40°C to +125°C.

Applications

• Low-noise power supplies
• High-definition imaging systems
• Infrared imaging equipment
• Medical devices

Key features

• Input voltage range: 2.5 V to 20 V
• Output voltage range:
• Adjustable: 1.22 V to 18 V
• Fixed: 1.5 V to 5 V
• Output accuracy ±2% over line regulation, load regulation, and operating temperature range
• Maximum output current: 300 mA
• Low dropout voltage: 550 mV maximum at 300 mA
• High PSRR:
• 79 dB at 1 kHz
• 56 dB at 100 kHz
• Output voltage noise: 5.68 μV_RMS
• Excellent transient response
• Stable with 2.2 μF to 100 μF ceramic output capacitors
• Integrated protection features:
• Overcurrent protection
• Output short-circuit protection
• Overtemperature protection
• Junction temperature range: -40°C to +125°C
• Package option: SOT23-5
