3PEAKDatasheet (PDF)

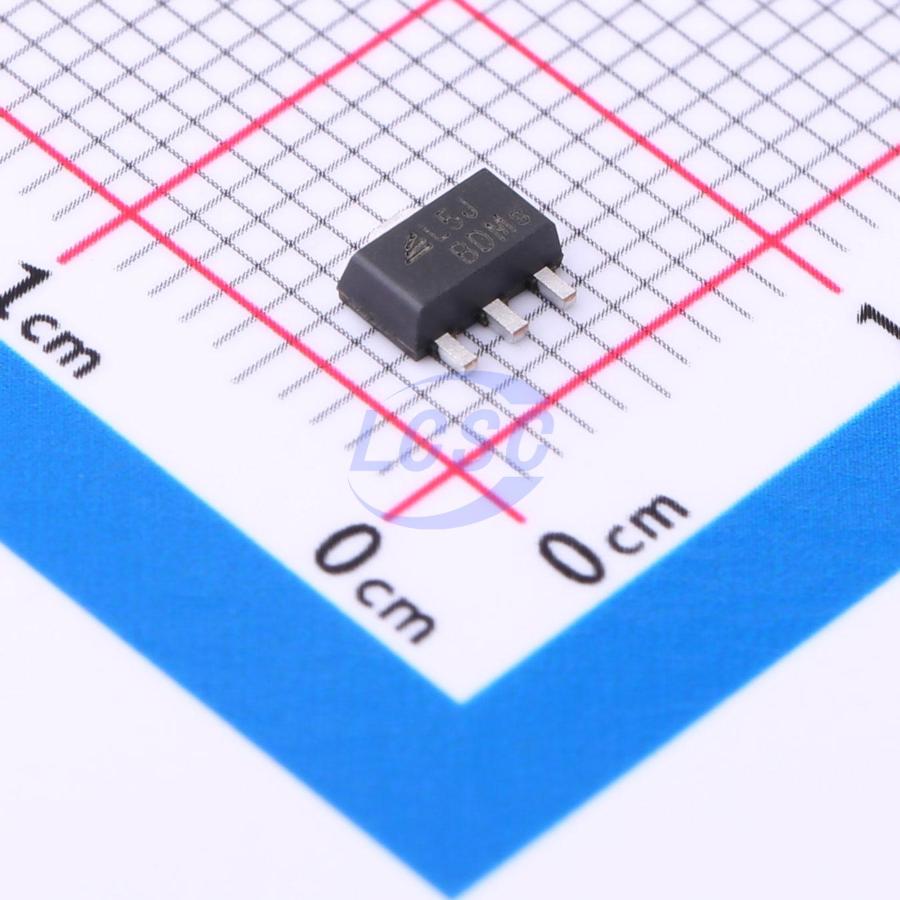

TPL820F33-89TR
3.3V Positive Fixed SOT-89-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-89-3ROHS3 CompliantActive
42-V Input, 180-mA Output High Voltage and Low Quiescent Current LDO
- Manufacturer
- 3PEAK
- Manufacturer part #
- TPL820F33-89TR
- Store part #
- C3039494
- Package / case
- SOT-89-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
34,935 in stock
#C3039494
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹24.78 | ₹123.90 |
| 50+ | ₹19.16 | ₹958.00 |
| 150+ | ₹16.35 | ₹2,452.50 |
| 500+ | ₹14.25 | ₹7,125.00 |
| 2,500+ | ₹12.56 | ₹31,400.00 |
| 4,000+ | ₹11.71 | ₹46,840.00 |
5 × ₹24.78
₹123.90
excl. GST
₹146.20 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
TPL820F33-89TR
₹123.90 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 5uA
- Output Configuration
- Positive
- Output Current
- 180mA
- Operating Voltage
- 42V
- Output Type
- Fixed
- Features
- Built-in soft-start;Input under-voltage protection;Over Current Protection;Thermal shutdown
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.18 g
Overview
The TPL820 series products are high-performance and low dropout linear regulators. They support a maximum 42 V input voltage and 180 mA output current with low quiescent current and high PSRR. They are stable with a 2.2 μF to 22 μF output capacitor, and a 4.7 μF ceramic capacitor is recommended. They have a high PSRR of 73 dB at 100 Hz, making them suitable for power - sensitive applications with high noise from the previous stage power supply. The 2 μA ultra - low quiescent current makes them ideal for portable devices with battery power supply. Current - limit and thermal overload protection circuits improve the reliability under heavy load conditions. They provide fixed output voltage options from 2.8 V to 5 V with ±2% voltage accuracy over operating conditions and are guaranteed over the junction temperature range from - 40°C to +125°C.
Applications
- Handheld Devices with Battery Power Supply
- POS and Power Tools
- Meters and Smoke Detector
- Industrial control
- Wireless and IoT modules
Key features
- Wide Input Voltage Range: 3.6 V to 42 V
- Fixed Output: 2.8 V, 3 V, 3.3 V, and 5 V ±1% Output Accuracy Under Room Temperature
- Ultra - Low Quiescent Current: 2 μA
- Maximum Output Current: 180 mA
- Low Dropout Voltage: 200 mV at 50 mA
- High PSRR: 73 dB at 100 Hz
- Current Limit and Thermal Protection
- Stable with 2.2 μF to 22 μF Low ESR Ceramic Capacitor
- Soft Start Limits Input Current Surge During Enable
- Thermal Shutdown Protection
- Junction Temperature Range: - 40°C to +125°C
- Packages: SOT89 - 3, SOT23 - 5, SOT23 - 3, SOT223 - 3
