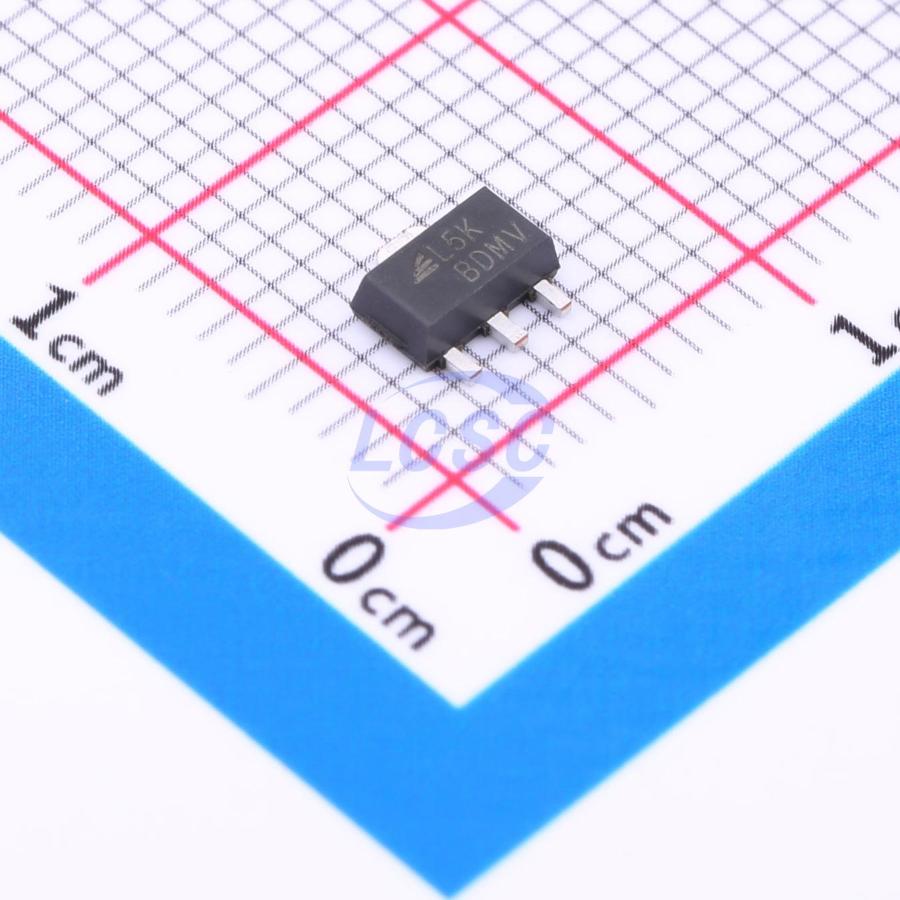

TPL820F50-89TR

The TPL820 series products are high performance and low dropout linear regulators. The TPL820 series products support maximum 42 V input voltage and 200 mA output current with low quiescent current and high PSRR. The TPL820 series products is stable with 2.2 μF or higher output capacitor, and 4.7 μF ceramic capacitor is recommended. The TPL820 series products have a high PSRR with 73 dB at 100 Hz. This feature makes TPL820 series products very suitable for power-sensitive applications with high noise from previous stage power supply. 2 μA ultra-low quiescent current makes the TPL820 series products ideal choices for portable devices with battery power supply. Current-limit and thermal overload protection circuits improves the reliability under heavy load conditions. The TPL820 series products provide fixed output voltage options from 1.2 V to 5 V with ±2% voltage accuracy over operating conditions. The TPL820 series products are guaranteed over ambient temperature range from -40°C to +85°C.

Applications

• Handheld Devices with Battery Power Supply
• POS and Power Tools
• Meters and Smoke Detector
• Industrial control Wireless and IoT modules

Key features

• Wide Input Voltage Range: 3.6 V to 42 V
• Fixed Output: 1.2 V, 1.8 V, 2.5 V, 2.8 V, 3 V, 3.3 V, 4.5 V and 5V
• ±1% Output Accuracy Under Room Temperature
• Ultra-Low Quiescent Current: 2 μA
• Maximum Output Current: 200 mA
• Low Dropout Voltage: 200 mV at 50mA
• High PSRR: 73 dB at 100Hz
• Current Limit and Thermal Protection
• Stable with 2.2 μF or Higher Low ESR Ceramic Capacitor
• Soft-start Limits Input Current Surge During Enable
• Thermal Shutdown Protection
• Ambient Temperature Range: -40°C to +85°C
• Junction Temperature Range: -40°C to +125°C
• Packages: SOT89-3, SOT23-5, SOT23-3
