3PEAKDatasheet (PDF)

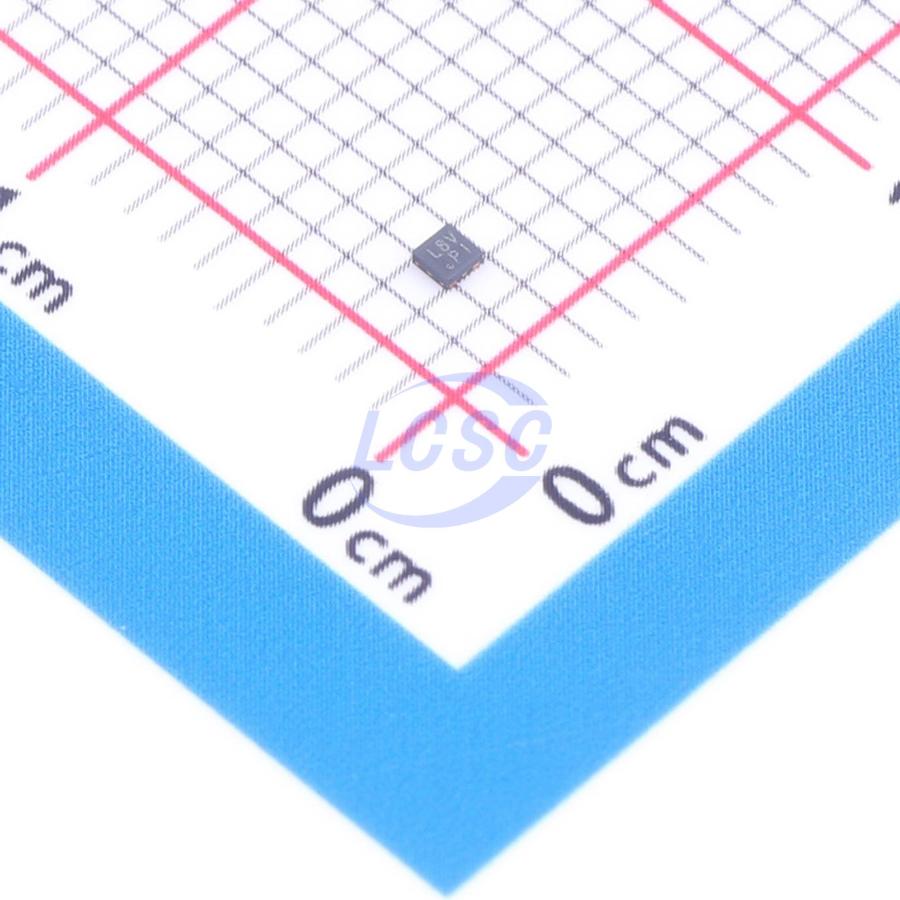

TPL903229-DF1R
2.9V Positive Fixed DFN-4(1x1) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
DFN-4(1x1)ROHS CompliantActive
- Manufacturer
- 3PEAK
- Manufacturer part #
- TPL903229-DF1R
- Store part #
- C37809683
- Package / case
- DFN-4(1x1)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
11,825 in stock
#C37809683
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹86.62 | ₹86.62 |
| 10+ | ₹68.39 | ₹683.90 |
| 30+ | ₹59.39 | ₹1,781.70 |
| 100+ | ₹50.38 | ₹5,038.00 |
| 500+ | ₹44.81 | ₹22,405.00 |
| 1,000+ | ₹42.02 | ₹42,020.00 |
1 × ₹86.62
₹86.62
excl. GST
₹102.21 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 12,000 per reel
TPL903229-DF1R
₹86.62 for 1 + GST
Specifications
- Output Voltage
- 2.9V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃
- Supply Current (Iq)
- 120uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 300mA
- Features
- Enable control;Reverse-polarity current protection;Over Current Protection;Short Circuit Protection;Thermal shutdown;Output discharge
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 12,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.453 g
Overview
300-mA high PSRR, ultra-low noise, and low dropout linear regulators with high output accuracy. Support both fixed output voltage ranges from 0.9 V to 5 V and are stable with 1 μF or larger ceramic output capacitor. Have high PSRR with 87.9 dB at 10 kHz and 8.6 μVRMS ultra-low noise. Suitable for noise-sensitive applications with high noise from previous stage power supply, such as high-performance analog devices, or high-definition imaging equipment. Output shortage protection and thermal overload protection circuits improve the reliability under heavy load conditions. Provide SOT23-5, DFN1x1-4, and WLCSP0.65x0.65-4 packages with guaranteed operating junction temperature range (TJ) from -40°C to +125°C.
Applications
- Portable and Battery-Powered Equipment
- Mobile Phones and Tablets
- Digital Cameras and Audio Devices
- Power Supply
- Video Surveillance
Key features
- Input Voltage Range: 1.75 V to 5.5 V
- Output Voltage Range: 0.9 V to 5 V
- ±2% Output Accuracy Over Line, Load Regulation, and Operating Temperature Range
- 300-mA Maximum Output Current
- Low Dropout Voltage: 180 mV Maximum at 300 mA
- High PSRR: – 81.9 dB at 1 kHz, 87.9 dB at 10 kHz, – 61.4 dB at 100 kHz, – 44.7 dB at 1 MHz
- 8.6-μVRMS Output Voltage Noise
- Excellent Transient Response
- Output Reverse Current Protection
- Stable with a 1-μF or Larger Ceramic Output Capacitor
- Thermal Shutdown and Over-Current Protection
- Junction Temperature Range: -40°C to +125°C
- Package Options: SOT23-5, DFN1x1-4, WLCSP0.65x0.65-4
