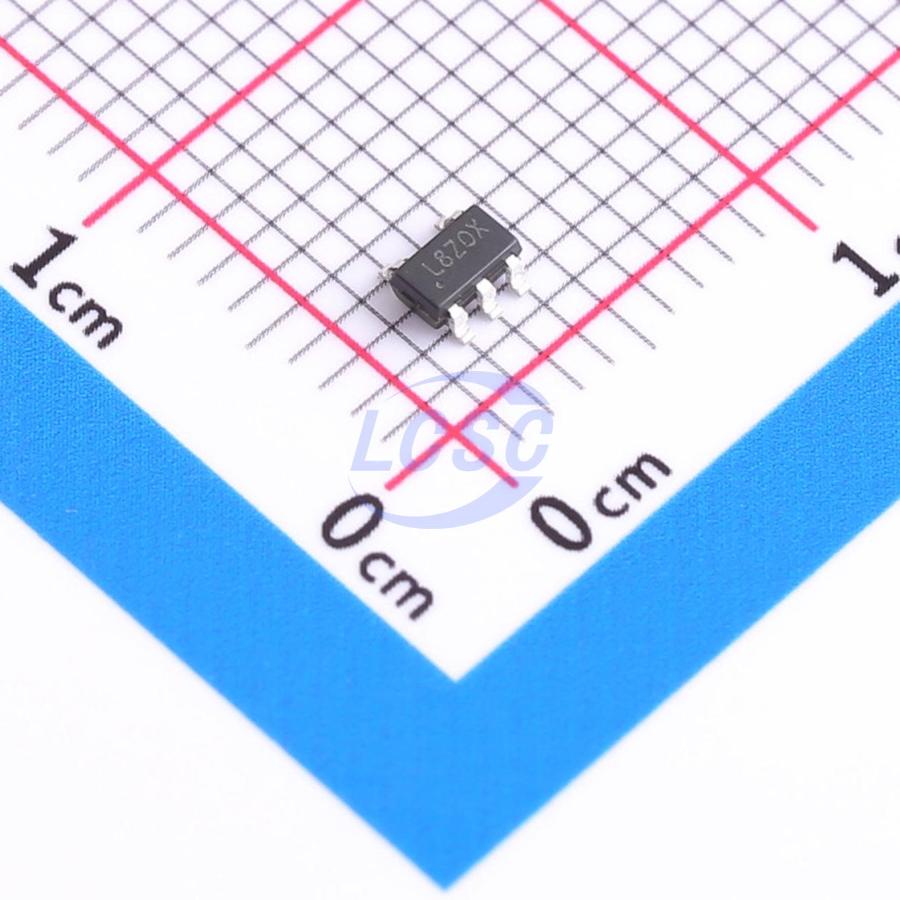

TPL903233-S5TR

300-mA high PSRR, ultra-low noise, and low dropout linear regulators with high output accuracy. Support both fixed output voltage ranges from 0.9 V to 5 V and are stable with 1 μF or larger ceramic output capacitor. Have high PSRR with 87.9 dB at 10 kHz and 8.6 μVRMS ultra-low noise. Suitable for noise-sensitive applications with high noise from previous stage power supply, such as high-performance analog devices, or high-definition imaging equipment. Output shortage protection and thermal overload protection circuits improve the reliability under heavy load conditions. Provide SOT23-5, DFN1x1-4, and WLCSP0.65x0.65-4 packages with guaranteed operating junction temperature range (TJ) from -40°C to +125°C.

Applications

• Portable and Battery-Powered Equipment
• Mobile Phones and Tablets
• Digital Cameras and Audio Devices
• Power Supply
• Video Surveillance

Key features

• Input Voltage Range: 1.75 V to 5.5 V
• Output Voltage Range: 0.9 V to 5 V
• ±2% Output Accuracy Over Line, Load Regulation, and Operating Temperature Range
• 300-mA Maximum Output Current
• Low Dropout Voltage: 180 mV Maximum at 300 mA
• High PSRR: – 81.9 dB at 1 kHz, 87.9 dB at 10 kHz, – 61.4 dB at 100 kHz, – 44.7 dB at 1 MHz
• 8.6-μVRMS Output Voltage Noise
• Excellent Transient Response
• Output Reverse Current Protection
• Stable with a 1-μF or Larger Ceramic Output Capacitor
• Thermal Shutdown and Over-Current Protection
• Junction Temperature Range: -40°C to +125°C
• Package Options: SOT23-5, DFN1x1-4, WLCSP0.65x0.65-4
