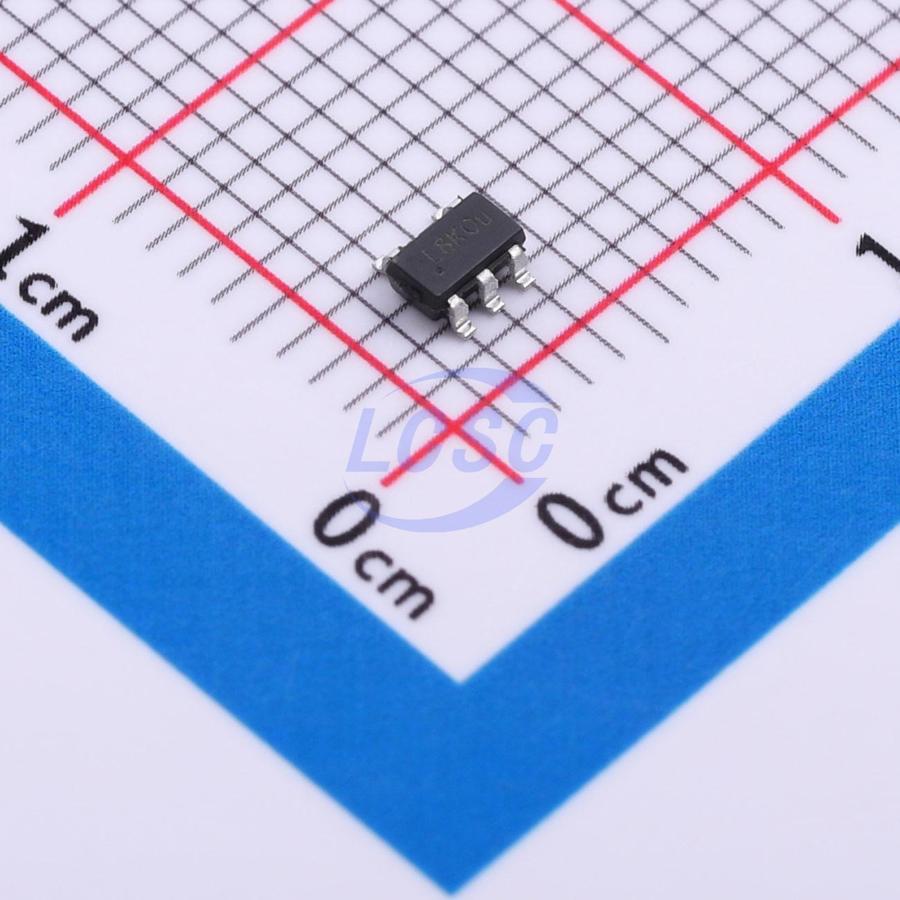

TPL905218-S5TR

The TPL9052 series are 500 mA high power supply rejection ratio (PSRR), ultra-low noise, low dropout linear regulators with high output accuracy. The TPL9052 series supports a fixed output voltage range of 0.9 V to 5 V and remains stable with ceramic output capacitors of 1 μF or larger. The TPL9052 series features 88 dB high PSRR at 10 kHz and ultra-low noise of 8.6 μVRMS. These characteristics make the TPL9052 series ideal for noise-sensitive applications with high upstream power supply noise, such as high-performance analog devices or high-definition imaging equipment. The TPL9052 series integrates protection features: output reverse current protection, output short-circuit protection, over-temperature protection, and overload protection. All these features significantly improve system reliability and simplify circuit design under varying operating conditions. The TPL9052 series is available in SOT23-5 and DFN1X1-4 packages, with a guaranteed operating junction temperature range (TJ) from -40°C to +125°C.

Applications

• Portable and battery-powered devices
• Mobile phones and tablets
• Digital cameras and audio device power supplies
• Video surveillance

Key features

• Input voltage range: 1.75 V to 5.5 V
• Output voltage range: 0.9 V to 5 V
• Output accuracy ±2.5% over line regulation, load regulation, and operating temperature range
• Maximum output current 500 mA
• Low dropout voltage: 150 mV typical at 500 mA
• High PSRR:
• -82 dB at 1 kHz
• -88 dB at 10 kHz
• -61 dB at 100 kHz
• -45 dB at 1 MHz
• Output voltage noise 8.6 μVRMS
• Excellent transient response
• Stable with 1 μF or larger ceramic output capacitor
• Output reverse current protection
• Output short-circuit protection
• Over-temperature and overcurrent protection
• Junction temperature range: -40°C to +125°C
• Package options:
• SOT23-5
• DFN1X1-4
