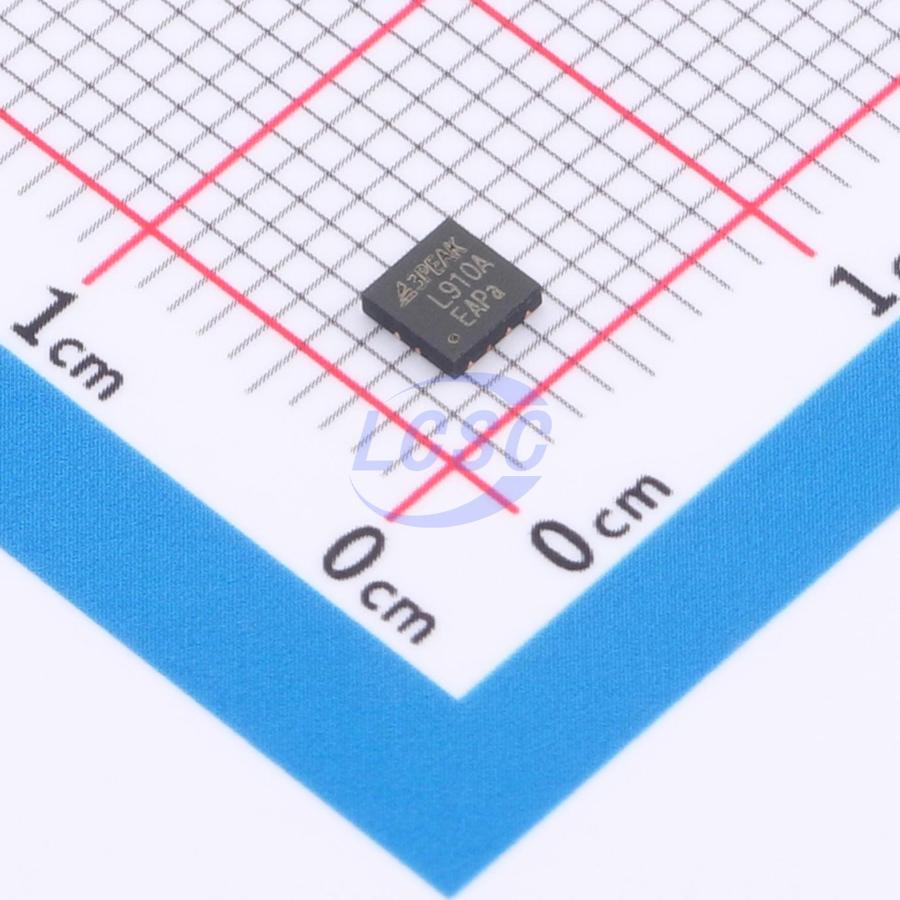

TPL910ADJA-DF6R

The TPL910A series are 1-A high-current, 4.5-μV_RMS low-noise, high-PSRR, high-accuracy linear regulators with only 500-mV maximum ultra-low dropout voltage at 1-A load current. The TPL910A series support both fixed output voltage ranges from 1.2 V to 5 V and adjustable output voltage ranges from 0.8 V to 6 V with external resistor divider. Communication: CPU, ASIC, FPGA, CPLD, DSP High-Performance Analog: ADC, DAC, LVDS, VCO Noise-Sensitive Imaging: CMOS Sensors, Video ASICs Ultra-low noise, high PSRR, and high output current capability makes the TPL910A series as the ideal power supply for noise-sensitive applications, such as high-speed communication facilities, and highdefinition imaging equipment. Accurate output voltage tolerance, excellent transient response, and adjustable soft-start control ensures the TPL910A series products optimal power supply for the largescale processors or digital loads, such as such as ASIC, FPGA, CPLD and DSP.

Key features

• Input Voltage Range: 2.2 V to 6.5 V
• Output Voltage Options:
• Fixed Output: 1.2 V, 1.8 V, 3.3 V and 5 V
• Adjustable Output: 0.8 V to 6 V
• ±2% Accuracy over Line Regulation, Load Regulation, and Operating Temperature Range
• 1 A Maximum Output Current
• Low Dropout Voltage: 500 mV Maximum at 1 A
• High PSRR:
• 80 dB at 1 kHz
• 50 dB at 1 MHz
• 4.5 μV RMS Output Voltage Noise (100 Hz to 100 kHz)
• Excellent Transient Response
• Stable with a 4.7 μF or Larger Ceramic Output Capacitor
• Over-Current Protection and Over-Temperature Protection
• Package: 3×3 DFN-8
