TECH PUBLIC

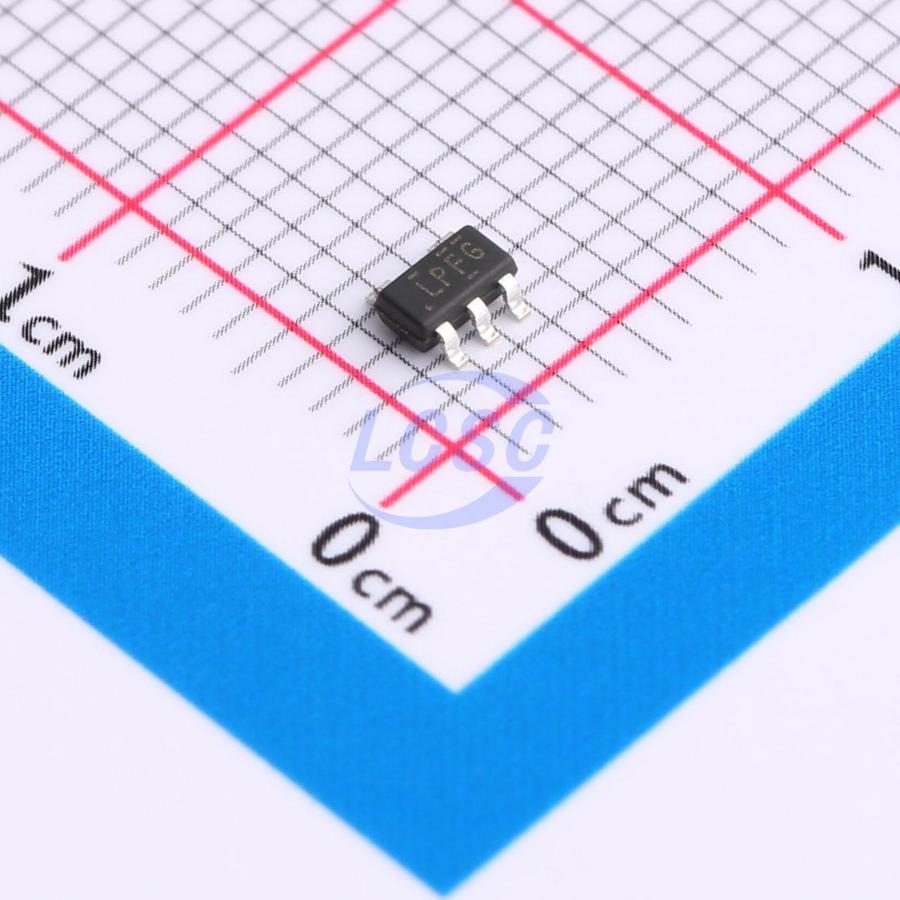

TPLP2985-33DBVR

3.3V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators

SOT-23-5RoHSActive

20V, 150mA, 2uA, High PSRR Voltage Regulator

Manufacturer: TECH PUBLIC
Manufacturer part #: TPLP2985-33DBVR
Store part #: C5370978
Package / case: SOT-23-5
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

8,540 in stock

#C5370978

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹16.18	₹80.90
50+	₹12.85	₹642.50
150+	₹11.18	₹1,677.00
500+	₹9.92	₹4,960.00
3,000+	₹8.92	₹26,760.00
6,000+	₹8.43	₹50,580.00

Quantity (min 5, multiples of 5)

5 × ₹16.18

₹80.90

excl. GST

₹95.46 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TPLP2985-33DBVR

₹80.90 for 5 + GST

Specifications

Output Voltage: 3.3V
Number of Outputs: 1
Operating Temperature: -40℃~+125℃@(Tj)
Supply Current (Iq): 2uA
Output Configuration: Positive
Operating Voltage: 20V
Output Current: 150mA
Features: Enable control;Over Current Protection;Thermal shutdown
Output Type: Fixed

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.036 g

Overview

The Devices is a low-dropout (LDO) voltage regulators with enable function offering the benefits of high input voltage, low-dropout voltage, low-power consumption, and miniaturized packaging. The features of low quiescent current as low as 2.0 μA and zero disable current is ideal for powering the battery equipment to a longer service life. The Devices is stable with the ceramic output capacitor over its wide input range from 2V to 20V and the entire range of output load current.

Applications

Portable, Battery Powered Equipment
Low Power Microcontrollers
Laptop, Palmtops and PDAs
Wireless Communication Equipment
Audio/Video Equipment
Car Navigation Systems
Industrial Controls
Weighting Scales
Meters
Home Automation

Key features

2 μA Ground Current at no Load
±2% Output Accuracy 150 mA Output Current
Wide Operating Input Voltage Range: 2V to 20V
Dropout Voltage: 0.18V at 50mA (V_OUT = 5V)
Support Fixed Output Voltage 1.8V, 2.5V, 2.8V, 3.0V, 3.3V, 5.0V
Stable with Ceramic or Tantalum Capacitor
Current Limit Protection
Over-Temperature Protection
SOT-23-5 Package Available

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
SPX5205M5-L-3-3#C23380895TECH PUBLIC · SOT-23-5	TECH PUBLIC	SOT-23-5	13,175	₹13.66 · 13,175 in stock	View
TPMIC5205-3.3YM5#C5370979TECH PUBLIC · SOT-23-5L	TECH PUBLIC	SOT-23-5L	13,955	₹15.70 · 13,955 in stock	View
MIC5205-3.3YM5#C20617303TECH PUBLIC · SOT-23-5	TECH PUBLIC	SOT-23-5	12,455	₹20.24 · 12,455 in stock	View
TPSPX5205M5-L-3-3#C5370976TECH PUBLIC · SOT-23-5	TECH PUBLIC	SOT-23-5	880	₹18.61 · 880 in stock	View
TPMIC5235-3.3YM5#C7202997TECH PUBLIC · SOT-23-5	TECH PUBLIC	SOT-23-5	1,665	₹14.64 · 1,665 in stock	View
