TECH PUBLICDatasheet (PDF)

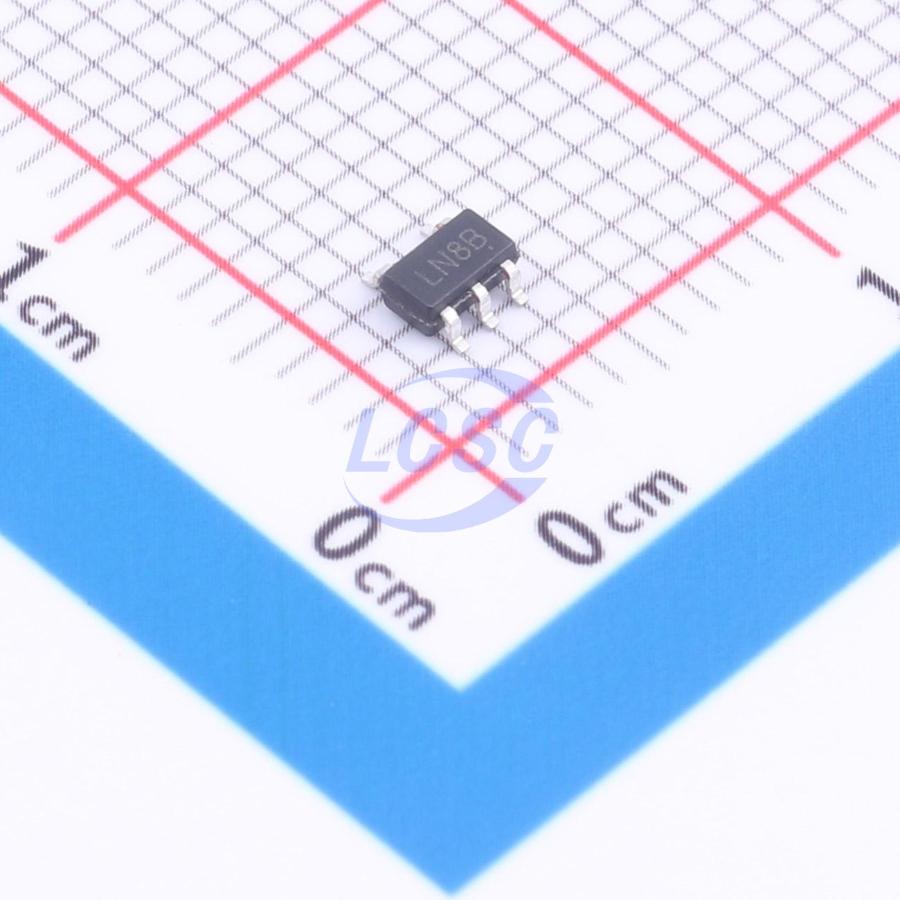

TPLP5907MFX-1.5
1.5V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23-5ROHS CompliantActive
IC REG LINEAR 1.5V 300mA SOT-23-5
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPLP5907MFX-1.5
- Store part #
- C49451987
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,930 in stock
#C49451987
Stock & price checked 25 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.69 | ₹68.45 |
| 50+ | ₹10.84 | ₹542.00 |
| 150+ | ₹9.39 | ₹1,408.50 |
| 500+ | ₹8.32 | ₹4,160.00 |
| 3,000+ | ₹7.46 | ₹22,380.00 |
| 6,000+ | ₹7.03 | ₹42,180.00 |
5 × ₹13.69
₹68.45
excl. GST
₹80.77 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPLP5907MFX-1.5
₹68.45 for 5 + GST
Specifications
- Output Voltage
- 1.5V
- Number of Outputs
- 1
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 300mA
- Output Type
- Fixed
- Features
- Enable control;Over Current Protection;Thermal shutdown;Output discharge
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.037 g
Overview
This device is a low-dropout regulator with an enable function, operating over a supply voltage range of 1.2V to 5.5V. It comes in a miniaturized package and delivers output current up to 300mA. The 2μA low quiescent current and 0.5μA shutdown current make it well suited for battery-powered applications requiring extended operating life. Additional features include current limiting, over-temperature protection, and output discharge.
Applications
- Portable battery-powered equipment
- Low-power microcontrollers
- Laptops, handheld PCs, and PDAs
- Wireless communication devices
- Audio/video equipment
Key features
- 2μA quiescent ground current (no load)
- ±2% output accuracy
- 300mA output current
- 10nA disable current (optional)
- Wide input voltage range: 1.2V to 5.5V
- Dropout voltage: 0.18V at 300mA output, V0 = +3.3V
- Fixed output voltage options: 1.2V, 1.5V, 1.6V, 1.8V, 2.5V, 2.8V, 3.0V, 3.3V
- Stable with ceramic or tantalum capacitors
- Current limiting protection
- Over-temperature protection
- SOT23-5 package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPS7A2015PDBVR-TP#C49452006TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,730 | ₹13.69 · 2,730 in stock | View |
 | RT9013-15GB#C22435115TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 3,145 | ₹10.12 · 3,145 in stock | View |
 | XC6219B152MR#C18212680TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 1,570 | ₹9.39 · 1,570 in stock | View |
 | TPRT9193-15GB#C18212681TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 3,340 | ₹9.53 · 3,340 in stock | View |
 | TP5108E23E-15#C2827631TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 10 | ₹10.24 · 10 in stock | View |
