TECH PUBLICDatasheet (PDF)

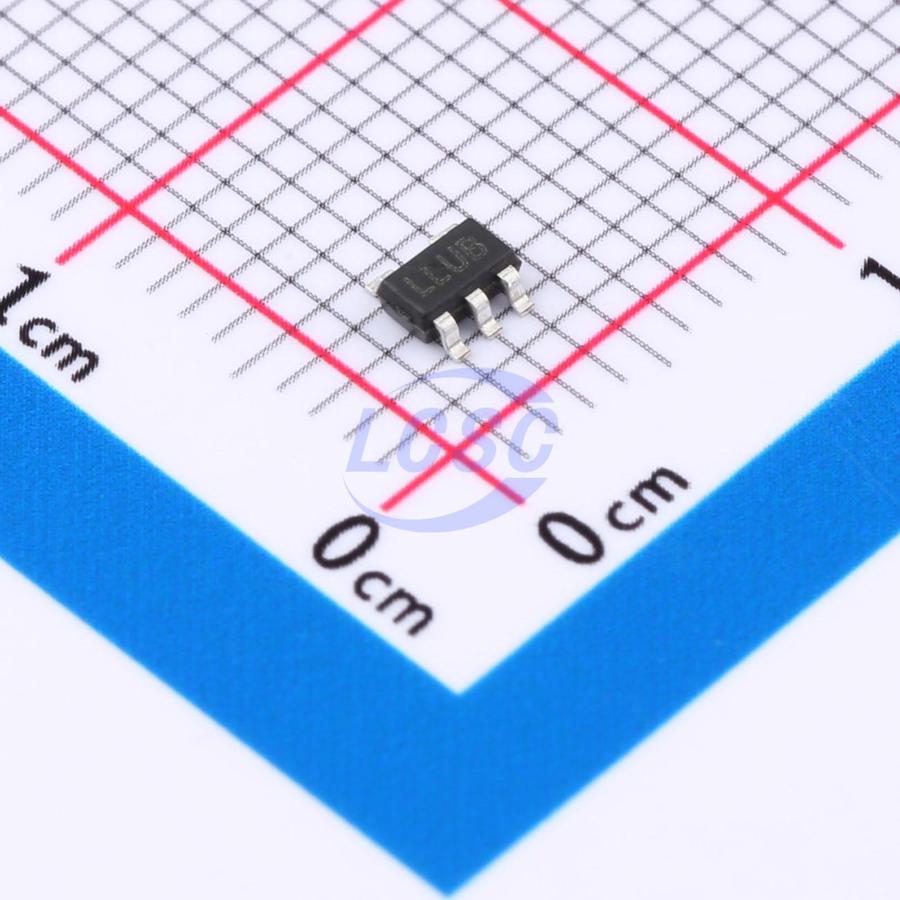

TPLP5907MFX-1.8
1.8V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-5RoHSActive
300mA 2uA High PSRR Voltage Regulator
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPLP5907MFX-1.8
- Store part #
- C5370993
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,095 in stock
#C5370993
Stock & price checked 44 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹19.41 | ₹97.05 |
| 50+ | ₹15.03 | ₹751.50 |
| 150+ | ₹13.15 | ₹1,972.50 |
| 500+ | ₹10.81 | ₹5,405.00 |
| 3,000+ | ₹9.76 | ₹29,280.00 |
| 6,000+ | ₹9.13 | ₹54,780.00 |
5 × ₹19.41
₹97.05
excl. GST
₹114.52 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPLP5907MFX-1.8
₹97.05 for 5 + GST
Specifications
- Output Voltage
- 1.8V
- Number of Outputs
- 1
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 300mA
- Features
- Enable control;Over Current Protection;Thermal shutdown;Output discharge
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.037 g
Overview
The Devices is a low-dropout (LDO) voltage regulator with enable function that operates from a 1.2V to 5.5V supply. It provides up to 300mA of output current in miniaturized packaging.
Applications
- Portable, Battery Powered Equipment
- Low Power Microcontrollers
- Laptop, Palmtops and PDAs
- Wireless Communication Equipment
- Audio/Video Equipment
Key features
- 2μA Ground Current at no Load
- ±2% Output Accuracy
- 300mA Output Current
- 10nA Disable Current (by option)
- Wide Operating Input Voltage Range: 1.2V to 5.5V
- Dropout Voltage: 0.18V at 300mA (Vout = 3.3V)
- Support Fixed Output Voltage 1.2V, 1.5V, 1.6V, 1.8V, 2.5V, 2.8V, 3.0V, 3.3V
- Stable with Ceramic or Tantalum Capacitor
- Current Limit Protection
- Over-Temperature Protection
- SOT23-5 Package
