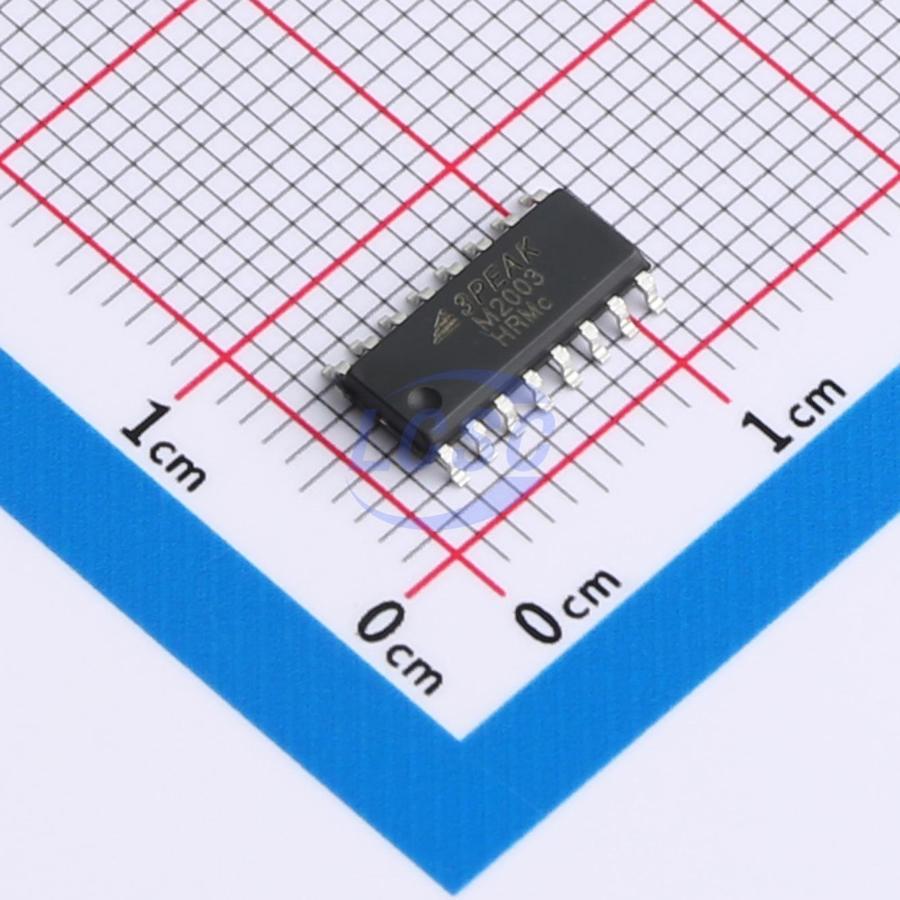

TPM2003-SO3R
Seven channels 500mA MOS SOP-16 Power Distribution Switches, Load Drivers RoHS
SOP-16ROHS3 CompliantActive
40-V 7-Ch Low-side Driver Array
- Manufacturer
- 3PEAK
- Manufacturer part #
- TPM2003-SO3R
- Store part #
- C5307360
- Package / case
- SOP-16
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,830 in stock
#C5307360
Stock & price checked 30 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹34.19 | ₹170.95 |
| 50+ | ₹26.29 | ₹1,314.50 |
| 150+ | ₹22.90 | ₹3,435.00 |
| 500+ | ₹18.68 | ₹9,340.00 |
| 2,500+ | ₹16.80 | ₹42,000.00 |
| 5,000+ | ₹15.68 | ₹78,400.00 |
5 × ₹34.19
₹170.95
excl. GST
₹201.72 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TPM2003-SO3R
₹170.95 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Output Leakage Current(Icex)
- 500uA
- number of channels
- Seven channels
- Vce Saturation(VCE(sat))
- 1.1V
- Input Current(on)
- 10uA
- Operating Voltage
- 30V
- Voltage - Forward(Vf)
- 1.217V
- Input Current(off)
- 10uA
- Current - Collector(Ic)
- 500mA
- Type
- MOS
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.3 g
Overview
TPM2003 is a high-voltage, high-current NMOS transistor array. This device consists of seven channels of low-side NMOS transistors with high-voltage outputs and free-wheeling diodes for inductive loads. The maximum drain-current rating of a single NMOS channel is 500 mA. The device supports a wide I/O voltage range from 1.8 V to 30 V. The transistors can drive in parallel for higher current capability. Enhanced ESD performance enhances system-level reliability. The TPM2003 can replace traditional Bipolar Darlington arrays with better thermal efficiency and reliability.
Applications
- Inductive Loads
- Relays
- Unipolar Stepper & Brushed DC Motors
- Solenoids & Valves
- LED Indicators
- Logic Level Shifting
- Gate & IGBT Drive
Key features
- 7-channel Darlington Array
- 500-mA Rated Drain Current (Per Channel)
- Very Low Output Leakage <10 nA Per Channel
- Power Efficient with Low RDS-on
- Extended Temperature Range: TA = -40°C to 125°C
- High-Voltage Outputs: 40 V
- Compatible with 1.8-V to 5.0-V Logic Interface
- Integrated Free-wheeling Diodes for Inductive Load
- Improved Noise-immunity with integrated RC filter
- Enhanced ESD Protection Exceeds JESD 22-2.5-kV HBM, 1.5-kV CDM
- Available in SOP16 and TSSOP16 Packages
