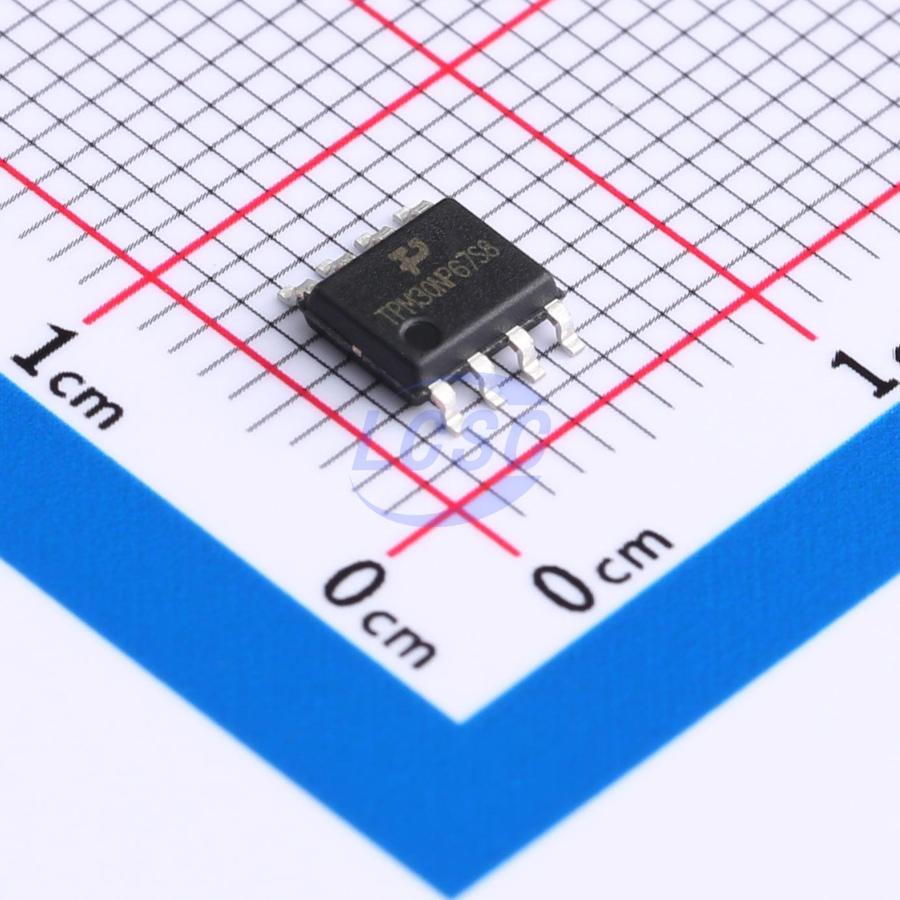

TPM30NP67S8-3
2W 30V 1 N-Channel + 1 P-Channel N-Channel + P-Channel SOP-8 Single FETs, MOSFETs
SOP-8RoHSActive
N and P-Channel Enhancement Mode Power MOSFET
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPM30NP67S8-3
- Store part #
- C5197366
- Package / case
- SOP-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
500 in stock
#C5197366
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.28 | ₹66.40 |
| 50+ | ₹12.97 | ₹648.50 |
| 150+ | ₹12.74 | ₹1,911.00 |
| 500+ | ₹12.53 | ₹6,265.00 |
5 × ₹13.28
₹66.40
excl. GST
₹78.35 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPM30NP67S8-3
₹66.40 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 45pF
- Ciss-Input Capacitance
- 255pF
- Pd - Power Dissipation
- 2W
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 6.5A;7A
- Reverse Transfer Capacitance (Crss)
- 35pF
- RDS(on)
- 20mΩ@10V;28mΩ@10V
- Number
- 1 N-Channel + 1 P-Channel
- Gate Charge(Qg)
- 13nC@10V;9.2nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1.6V;1.9V
- Type
- N-Channel + P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.24 g
