TECH PUBLICDatasheet (PDF)

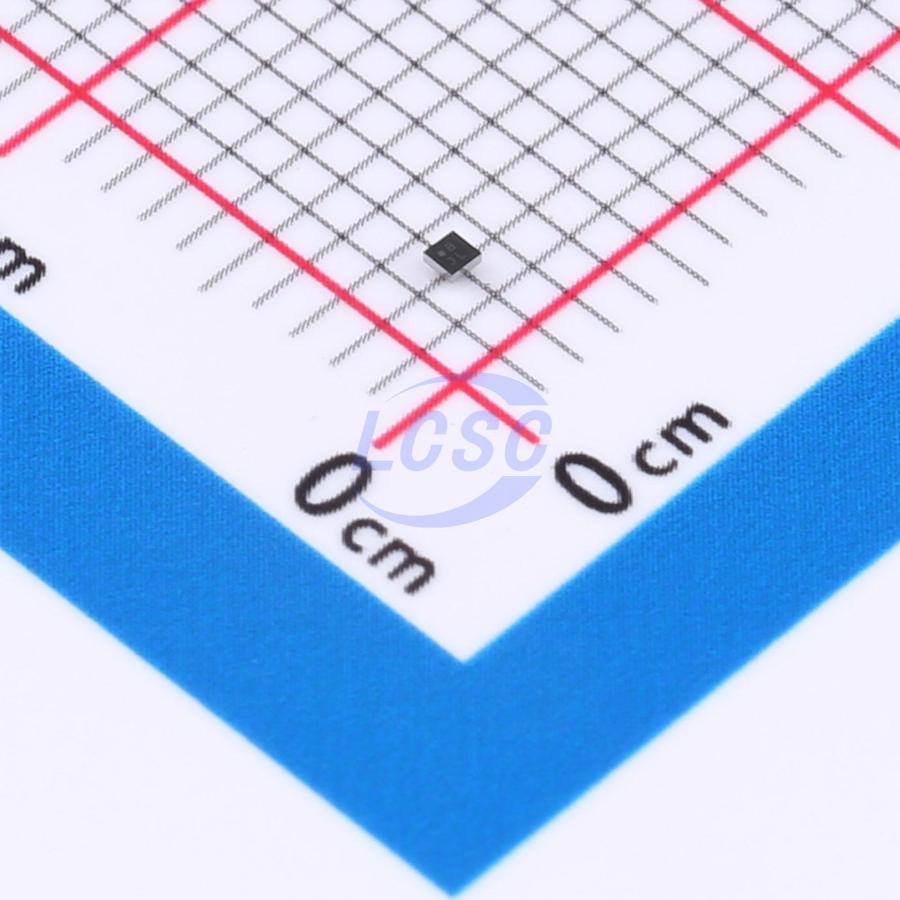

TPMAX40200ANS+T
1 Active High 2A Load Switch WLCSP-4L(0.8x0.8) Power Distribution Switches, Load Drivers
WLCSP-4L(0.8x0.8)RoHSActive
Low Quiescent current Load Switch
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPMAX40200ANS+T
- Store part #
- C47117620
- Package / case
- WLCSP-4L(0.8x0.8)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,695 in stock
#C47117620
Stock & price checked 44 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹25.68 | ₹128.40 |
| 50+ | ₹20.02 | ₹1,001.00 |
| 150+ | ₹17.58 | ₹2,637.00 |
| 500+ | ₹14.55 | ₹7,275.00 |
| 3,000+ | ₹13.20 | ₹39,600.00 |
| 6,000+ | ₹12.38 | ₹74,280.00 |
5 × ₹25.68
₹128.40
excl. GST
₹151.51 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPMAX40200ANS+T
₹128.40 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Features
- Output discharge function;Soft-start;Reverse current blocking
- number of channels
- 1
- Control Input Logic
- Active High
- Maximum Continuous Current
- 2A
- RDS(on)
- 100mΩ
- Operating Voltage
- 1.5V~5.5V
- Type
- Load Switch
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.014 g
Overview
A small, single channel load switch using P-Channel MOSFET for minimum power loss. Advanced gate control design supports operating voltages as low as 1.5V with minimal increase in ON-Resistance and power loss. It is designed for load switching applications with ultra-low quiescent current (0.5uA) and ultra-low standby current (150nA). It offers industry leading True Reverse Current Blocking performance. It minimizes reverse current flow in the event that the VOUT pin voltage exceeds the VIN voltage. The device is controlled by external logic pin, allowing optimization of battery life, and portable device autonomy.
Applications
- Notebook and Desktop Computers
- High-Side Power Protection Switches
- Consumer Electronics
- Telecom Systems
- Wearables
- USB Device Power Switch
- Portable Speakers
Key features
- Wide Supply Voltage Range: 1.5V to 5.5V
- Quiescent current: 0.4uA @ Typ
- Standby current: 80nA @ Typ
- Maximum Output current: 2A
- Enable Active High
- Typical Rdson 32mΩ @ 5.5V
- Controlled Rise Time: 570us at 3.3VIN
- Quick Output Discharge (QOD): 85Ω (Typ.)
- Hot Plug-In Application (Soft start)
- Reverse Current Flow Blocking (no body diode)
- RoHS and Halogen free compliance
- ESD Protection: 2kV HBM, 200V MM
- Package WLCSP-4L
