TECH PUBLIC

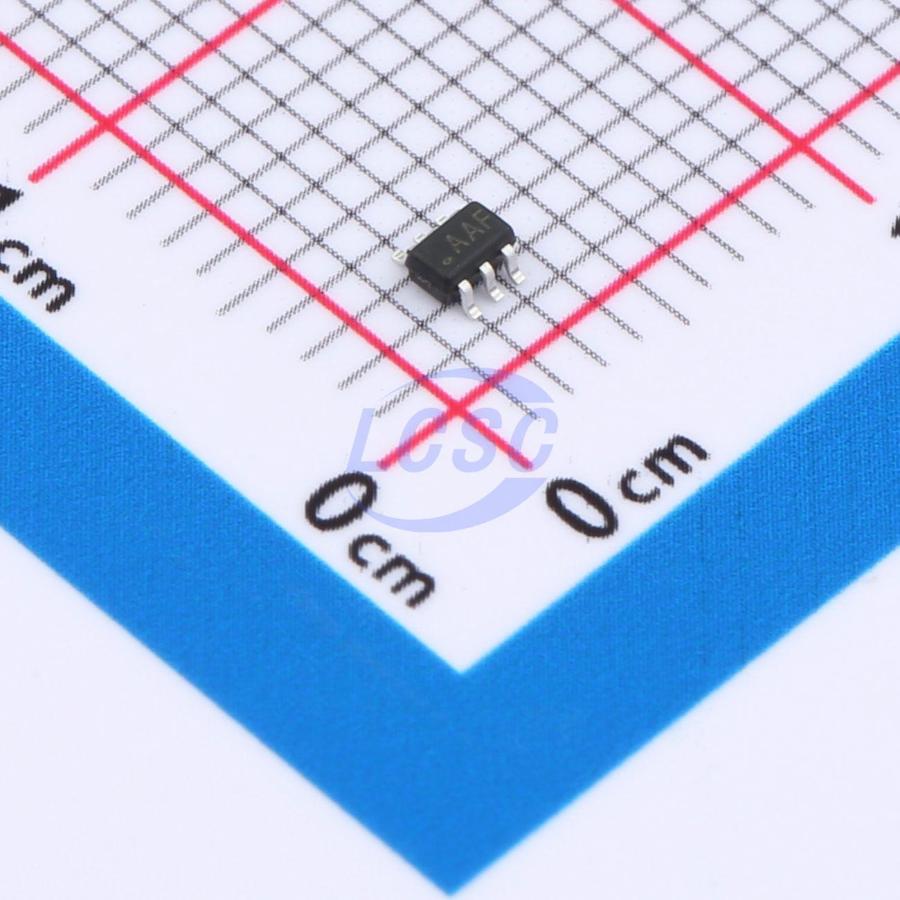

TPMAX4599EXT+T

3Ω 2V~5.5V 1 SOT-363 Analog Switches, Multiplexers, Demultiplexers

SOT-363RoHSActive

SINGLE-POLE,DOUBLE-THROW ANALOG SWITCH

Manufacturer: TECH PUBLIC
Manufacturer part #: TPMAX4599EXT+T
Store part #: C42449031
Package / case: SOT-363
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,115 in stock

#C42449031

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹25.76	₹128.80
50+	₹22.49	₹1,124.50
150+	₹21.10	₹3,165.00
500+	₹19.36	₹9,680.00
3,000+	₹18.57	₹55,710.00
6,000+	₹18.11	₹1,08,660.00

Quantity (min 5, multiples of 5)

5 × ₹25.76

₹128.80

excl. GST

₹151.98 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TPMAX4599EXT+T

₹128.80 for 5 + GST

Specifications

Features: Power-off isolation
Operating Temperature: -40℃~+85℃
Ron: 3Ω
Voltage - Supply: 2V~5.5V
Number of Channels: 1
Con: 7pF

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.156 g

Overview

The is a low voltage single-pole,double-throw (SPDT) analog switch intending for use in chopping,modem, signal gating, and signal multiplexing for analog-to-digital and digital -to-analog conversion systems.

Applications

Cell phones and TWS headset
Audio, Video, UART, USB2.0 Signal and Supply Routing

Key features

Low On-resistance, R0n = 3.0Ω when A = 5V
1.8V Logic Compatible Control Pin A Overrides VCC to Achieve True Isolation Even When Supply Is Dead
High Off-lsolation: -100dB @ 100KHz
Low Channel-to-Channel Crosstalk: -97dB @ 100KHz
High Bandwidth (-3dB @200MHz)
Suitable For USB2.0 High-Speed Routing
Low Quiescent Current (< 2uA)
With Very Wide Supply Range (2.0V ~ 5.5V)
