TECH PUBLICDatasheet (PDF)

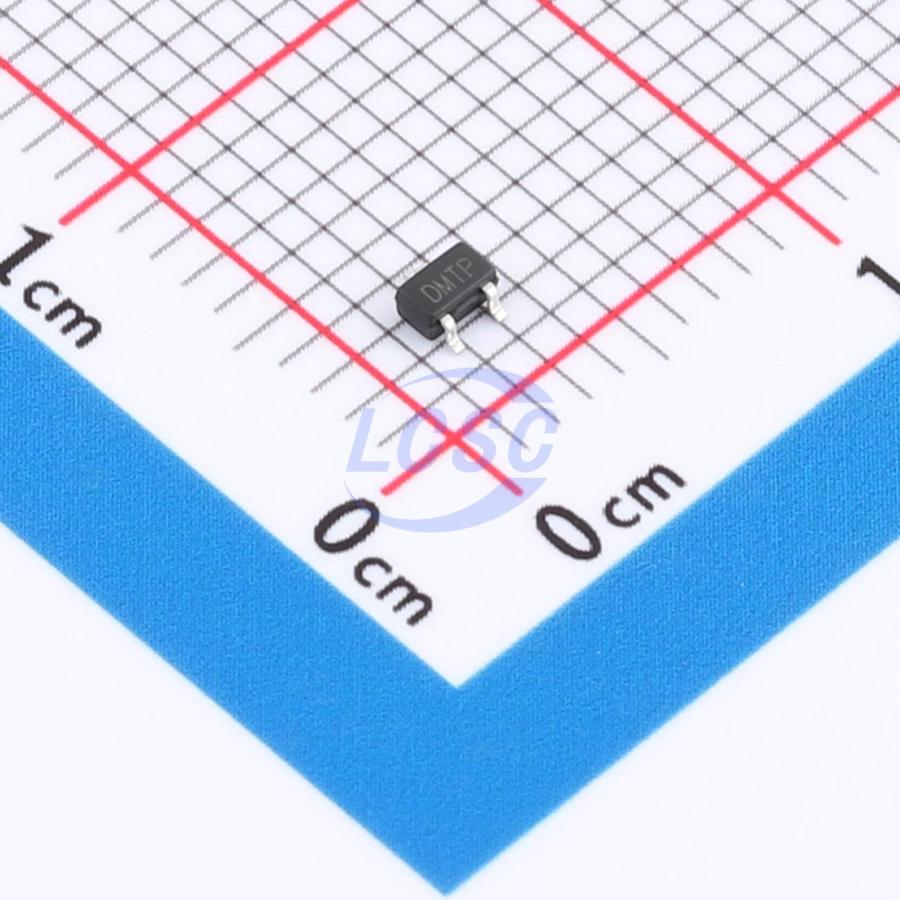

TPMCP121T-450E/LB
Active Low 1V~5.5V 1 SOT-323 Supervisors
SOT-323RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPMCP121T-450E/LB
- Store part #
- C52146050
- Package / case
- SOT-323
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,000 in stock
#C52146050
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹27.49 | ₹137.45 |
| 50+ | ₹21.50 | ₹1,075.00 |
| 150+ | ₹18.93 | ₹2,839.50 |
| 500+ | ₹15.73 | ₹7,865.00 |
| 3,000+ | ₹14.30 | ₹42,900.00 |
| 6,000+ | ₹13.44 | ₹80,640.00 |
5 × ₹27.49
₹137.45
excl. GST
₹162.19 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPMCP121T-450E/LB
₹137.45 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+105℃
- output type
- Open-drain
- Reset Active Level
- Active Low
- standby current
- 2uA
- Voltage - Supply
- 1V~5.5V
- ChipType
- Voltage monitor
- Threshold Voltage
- 4.38V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.029 g
Overview
Applications
- Computers
- Embedded systems
- Battery-powered devices
- Smart instruments
- CPU and logic circuit reset
Key features
- High accuracy ±2%
- Precise VCC monitoring for +2.5V, +3V, +3.3V, and +5V supplies
- Power supply transient immunity
- Reset guaranteed valid with VCC as low as +1V
- Full temperature range specifications guaranteed
- 2μA supply current
- One output configuration available: open-drain, active-low RESET output
- Available in SOT-23 and SOT-323 packages
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPAX803MC3#C52146028TECH PUBLIC · SOT-323 | TECH PUBLIC | SOT-323 | 3,000 | ₹22.74 · 3,000 in stock | View |
 | TPAPX803L20-44C3#C52146030TECH PUBLIC · SOT-323 | TECH PUBLIC | SOT-323 | 2,985 | ₹18.57 · 2,985 in stock | View |
 | TPMIC803-44D3VC3#C52146031TECH PUBLIC · SOT-323 | TECH PUBLIC | SOT-323 | 3,000 | ₹18.71 · 3,000 in stock | View |
 | TPADM803MAKSZ#C52146033TECH PUBLIC · SOT-323 | TECH PUBLIC | SOT-323 | 2,980 | ₹24.58 · 2,980 in stock | View |
 | MAX803SQ438T1G-TP#C52146034TECH PUBLIC · SOT-323 | TECH PUBLIC | SOT-323 | 1,205 | ₹18.71 · 1,205 in stock | View |
