TECH PUBLICDatasheet (PDF)

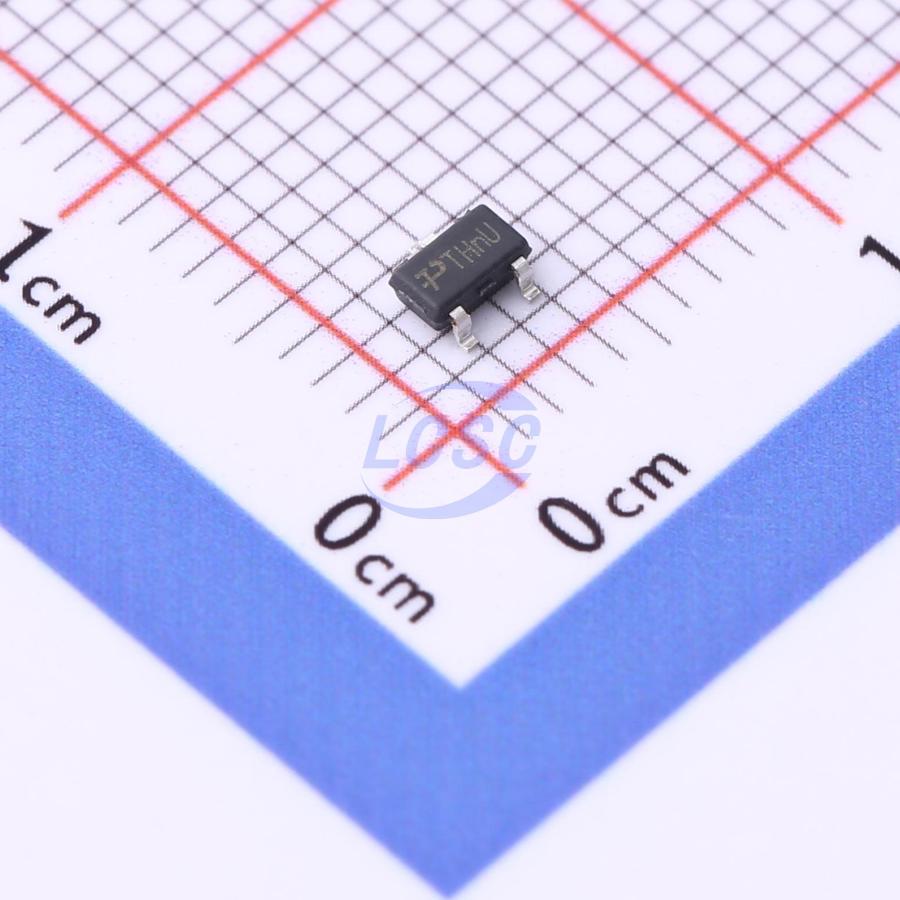

TPMCP1700T-3302E/TT
3.3V Positive Fixed SOT-23L Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23LRoHSActive
300mA 1.6uA High PSRR Voltage Regulator
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPMCP1700T-3302E/TT
- Store part #
- C3021127
- Package / case
- SOT-23L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10,635 in stock
#C3021127
Stock & price checked 24 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹21.43 | ₹107.15 |
| 50+ | ₹16.83 | ₹841.50 |
| 150+ | ₹14.51 | ₹2,176.50 |
| 500+ | ₹12.78 | ₹6,390.00 |
| 3,000+ | ₹11.07 | ₹33,210.00 |
| 6,000+ | ₹10.39 | ₹62,340.00 |
5 × ₹21.43
₹107.15
excl. GST
₹126.44 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPMCP1700T-3302E/TT
₹107.15 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 1.6uA
- Output Configuration
- Positive
- Output Current
- 450mA
- Operating Voltage
- 6.5V
- Features
- Over Current Protection;Thermal shutdown;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.035 g
Overview
The TPMCP1700 is an Ultra Low Quiescent low dropout voltage regulator. The output voltages are of 1.2, 1.5V, 1.8V, 2.0V, 2.5V, 3.0V, 3.3V and 5V. Dropout voltage of 200mV is guaranteed at 300mA output current and 3.3V output voltage. The low quiescent and wide input voltage range make this device ideal for portable microprocessor applications. The TPMCP1700 requires output ceramic capacitor of a minimum 1μF for stability. Built- in output current limiting and thermal limiting provide maximal protection to the TPMCP1700 against fault conditions.
Applications
- Portable, Battery Powered Equipment
- Low Power Microcontrollers
- Laptop, Palmtops and PDAs
- Wireless Communication Equipment
- Audio/Video Equipment
Key features
- 1.6μA Ground Current at no Load
- ±2% Output Accuracy
- 300mA Output Current
- 10nA Disable Current (by option)
- Wide Operating Input Voltage Range: 1.2V to 5.5V
- Dropout Voltage: 0.19V at 250mA (V_OUT = 2.8V)
- Support Fixed Output Voltage 1.2V, 1.5V, 1.6V, 1.8V, 2.5V, 2.8V, 3.0V, 3.3V, 3.6V
- Stable with Ceramic or Tantalum Capacitor
- Current Limit Protection
- Over- Temperature Protection
- SOT23 - 3 Package
