TECH PUBLICDatasheet (PDF)

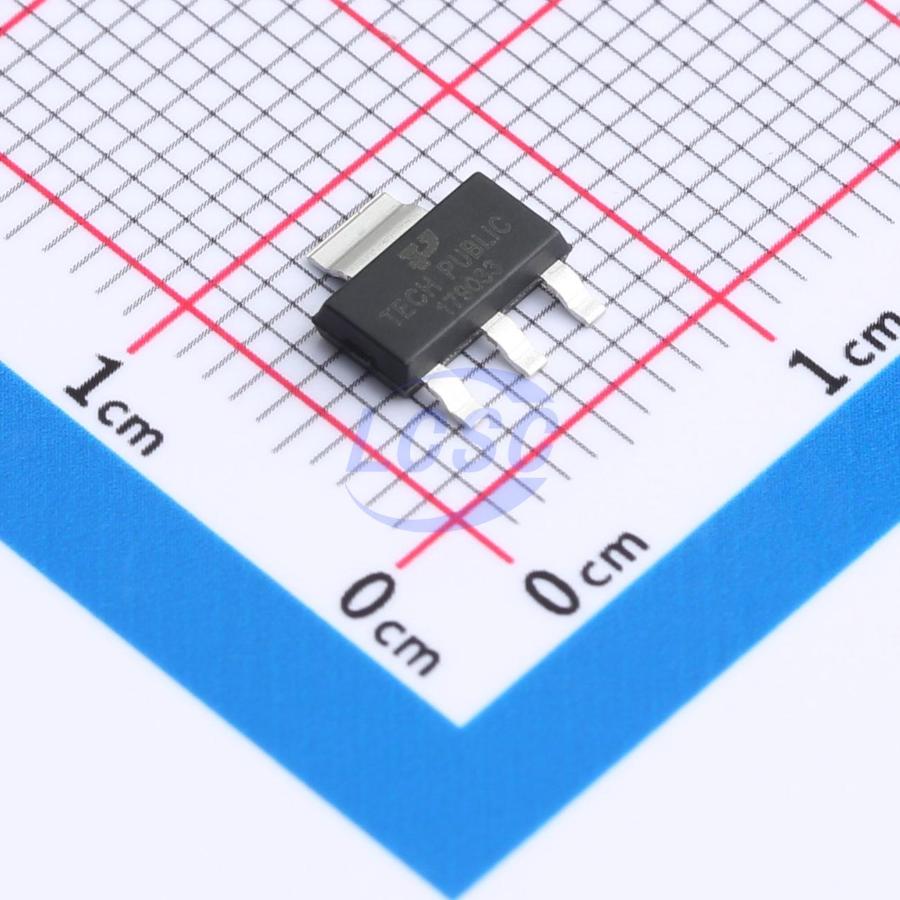

TPMCP1790-3302E/DB
Linear Voltage Regulator IC Positive Fixed 1 Output 200mA SOT-223
SOT-223RoHSActive
IC REG LINEAR 3.3V 200mA SOT-223
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPMCP1790-3302E/DB
- Store part #
- C42394080
- Package / case
- SOT-223
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,803 in stock
#C42394080
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹66.02 | ₹66.02 |
| 10+ | ₹51.97 | ₹519.70 |
| 30+ | ₹45.79 | ₹1,373.70 |
| 100+ | ₹38.34 | ₹3,834.00 |
| 500+ | ₹34.93 | ₹17,465.00 |
| 1,000+ | ₹32.80 | ₹32,800.00 |
1 × ₹66.02
₹66.02
excl. GST
₹77.90 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TPMCP1790-3302E/DB
₹66.02 for 1 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Tj)
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Output Current
- 200mA
- Operating Voltage
- 36V
- Features
- Short Circuit Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.323 g
Overview
micropower low dropout voltage regulators available in a wide variety of output voltages. These devices feature a very low quiescent current. Thermal limiting protection are provided by the presence of a short circuit at the output and an internal thermal shutdown circuit. Due to the low input-to-output voltage differential and bias current specifications, these devices are ideally suited for battery powered computer, consumer, and industrial equipment where an extension of useful battery life is desirable.
Applications
- Hand - Held Instruments
- Battery Powered Consumer Products
- Test and Measurement Equipment
- Industrial Power Supplies
Key features
- Input Voltage up to 36V
- output current up to 200mA
- output Voltage 3.3V
- 2μA Current at no Load
- ±2% Output Accuracy
- Compact package: SOT - 223
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TP422C33Y3#C42394089TECH PUBLIC · SOT-223 | TECH PUBLIC | SOT-223 | 281 | ₹72.28 · 281 in stock | View |
 | TPNCV8664ST33T3G#C42394088TECH PUBLIC · SOT-223 | TECH PUBLIC | SOT-223 | 228 | ₹54.26 · 228 in stock | View |
 | LM2936MPX-3.3-TP#C42394083TECH PUBLIC · SOT-223 | TECH PUBLIC | SOT-223 | 2,783 | ₹79.54 · 2,783 in stock | View |
