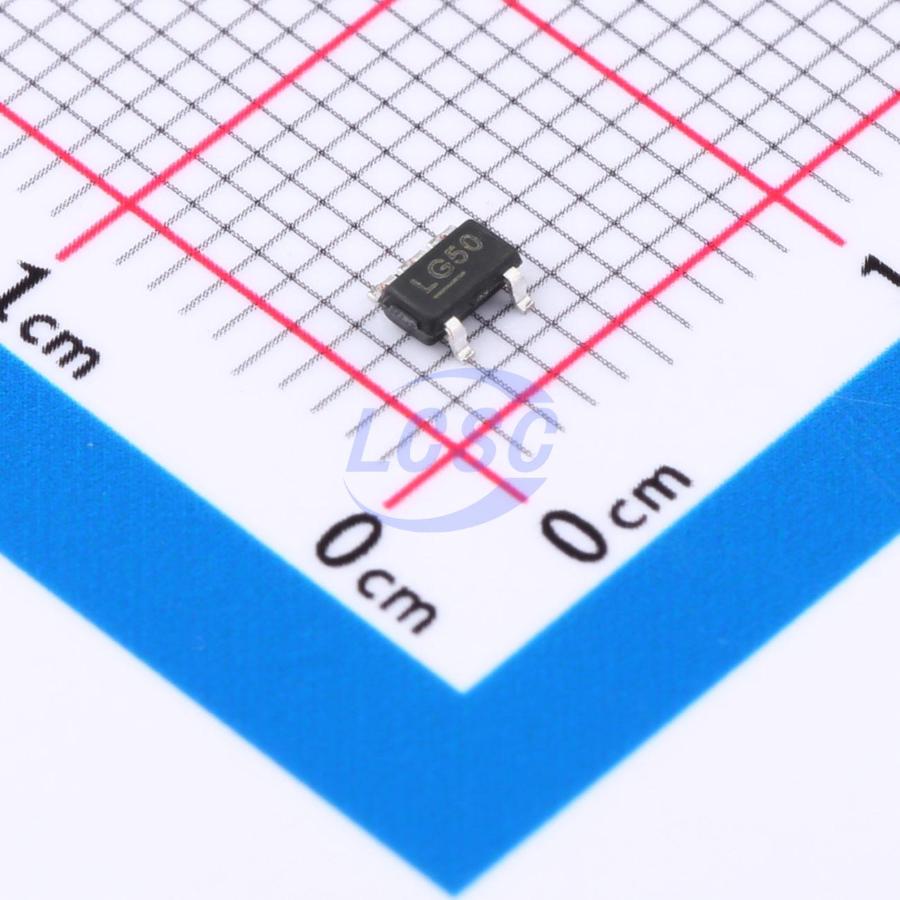

TPMIC5219-5.0YM5
5V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-5RoHSActive
20V,500mA,1.5uA,High PSRR Voltage Regulator
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPMIC5219-5.0YM5
- Store part #
- C5370984
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,055 in stock
#C5370984
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹26.17 | ₹130.85 |
| 50+ | ₹22.74 | ₹1,137.00 |
| 150+ | ₹21.26 | ₹3,189.00 |
| 500+ | ₹19.43 | ₹9,715.00 |
| 3,000+ | ₹18.61 | ₹55,830.00 |
| 6,000+ | ₹18.13 | ₹1,08,780.00 |
5 × ₹26.17
₹130.85
excl. GST
₹154.40 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPMIC5219-5.0YM5
₹130.85 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 1.5uA
- Output Configuration
- Positive
- Output Current
- 500mA
- Operating Voltage
- 20V
- Features
- Enable control;Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.037 g
Overview
The Devices is a lowdropout (LDO) voltage regulators with enable function offering the benefits of high input voltage, low-dropout voltage, low-power consumption, and miniaturized packaging. The features of low quiescent current as low as 1.5 μA and zero disable current is ideal for powering the battery equipment to a longer service life. The Devices is stable with the ceramic output capacitor over its wide input range from 2V to 20V and the entire range of output load current.
Applications
- Portable, Battery Powered Equipment
- Low Power Microcontrollers
- Laptop, Palmtops and PDAs
- Wireless Communication Equipment
- Audio Video Equipment
- Car Navigation Systems
- Industrial Controls
- Weighting Scales
- Meters
- Home Automation
Key features
- 1.5 μA Ground Current at no Load
- ±2% Output Accuracy
- 500 mA Output Current
- Wide Operating Input Voltage Range: 2V to 20V
- Dropout Voltage: 0.53V at 200mA (V_OUT = 5V)
- Support Fixed Output Voltage 1.8V, 2.5V, 2.8V, 3.0V, 3.3V, 3.6V, 5.0V
- Stable with Ceramic or Tantalum Capacitor
- Current Limit Protection
- Over-Temperature Protection
- SOT-23-5 Package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SPX3819M5-L-5-0#C20617302TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 1,070 | ₹18.02 · 1,070 in stock | View |
 | TPSPX3819M5-L-5-0#C5370987TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 15,470 | ₹16.75 · 15,470 in stock | View |
