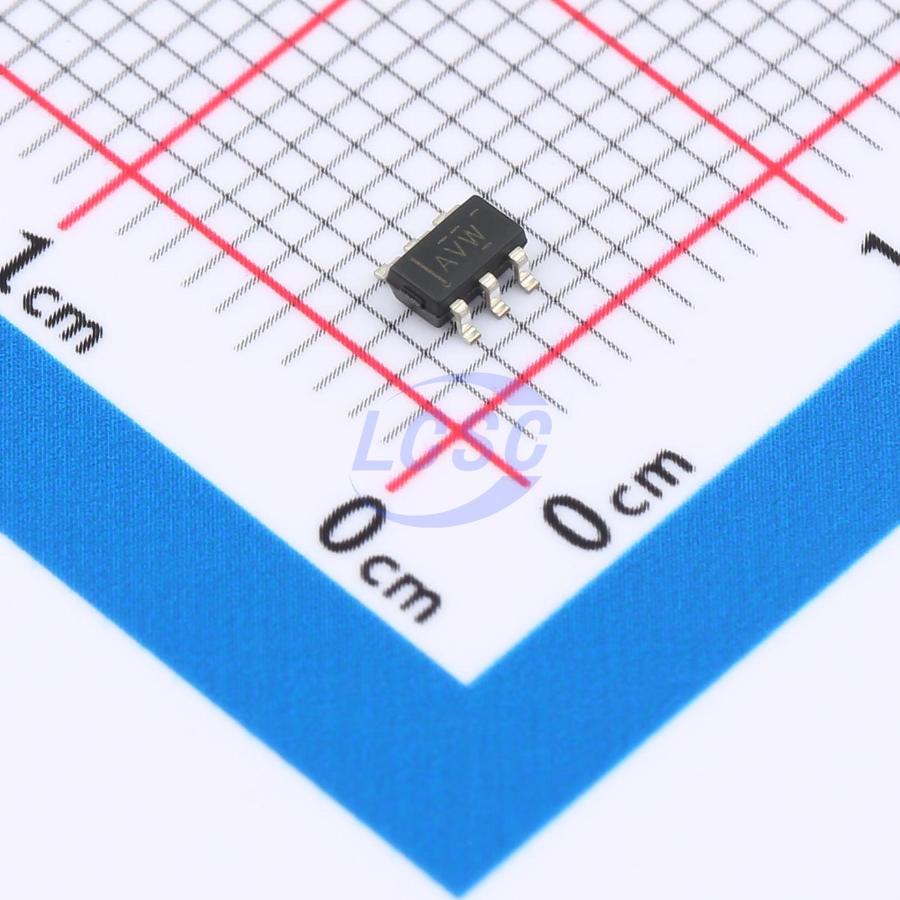

TPNCP308SNADJT1G
20ms Manual reset input Active Low 1.7V~6.5V 1 SOT-23-6L Supervisors RoHS
SOT-23-6LROHS CompliantActive
Low quiescent current programmable delay monitor
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPNCP308SNADJT1G
- Store part #
- C49230929
- Package / case
- SOT-23-6L
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,000 in stock
#C49230929
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹44.88 | ₹224.40 |
| 50+ | ₹35.24 | ₹1,762.00 |
| 150+ | ₹31.12 | ₹4,668.00 |
| 500+ | ₹25.96 | ₹12,980.00 |
| 3,000+ | ₹23.66 | ₹70,980.00 |
| 6,000+ | ₹22.28 | ₹1,33,680.00 |
5 × ₹44.88
₹224.40
excl. GST
₹264.79 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPNCP308SNADJT1G
₹224.40 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Reset Timeout
- 20ms
- output type
- Open-drain
- Function
- Manual reset input
- Reset Active Level
- Active Low
- standby current
- 2.8uA
- Voltage - Supply
- 1.7V~6.5V
- ChipType
- Voltage monitor
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.035 g
Overview
The family of microprocessor supervisory circuits monitor system voltage form 0.4V to 5.0V, asserting an open-drain RESET signal when the SENSE voltage drops below a preset threshold or when the manual reset (MR) pin drops to a logic low. The RESET output remains low for the user-adjustable delay time after the SENSE voltage and manual reset (MR) return above the respective thresholds.
Applications
- DSP or Microcontroller Applications capacitor.
- Notebook/Desktop Computers
- FPGA/ASIC Applications
- Portable/Battery-Powered Products
- PDAs/Hand-Held Products battery-powered applications.
Key features
- Power-On Reset Generator with Adjustable Delay Time: 1.25ms to 10s.
- Very Low Quiescent Current: 2.8μA Typical
- High Threshold Accuracy: 0.5% Typ.
- Fixed Threshold Voltages for Standard Voltage Rails from 0.9V to 5V and Adjustable Voltage Down to 0.4V are available.
- Manual Reset (MR) Input.
- Open-Drain RESET Output.
- Temperature Range: -40°C to +125°C
- Package: SOT23-6L(TPNCP308SNADJT1G) DFN2x2-6L(TPNCP308MTADJTBG)
