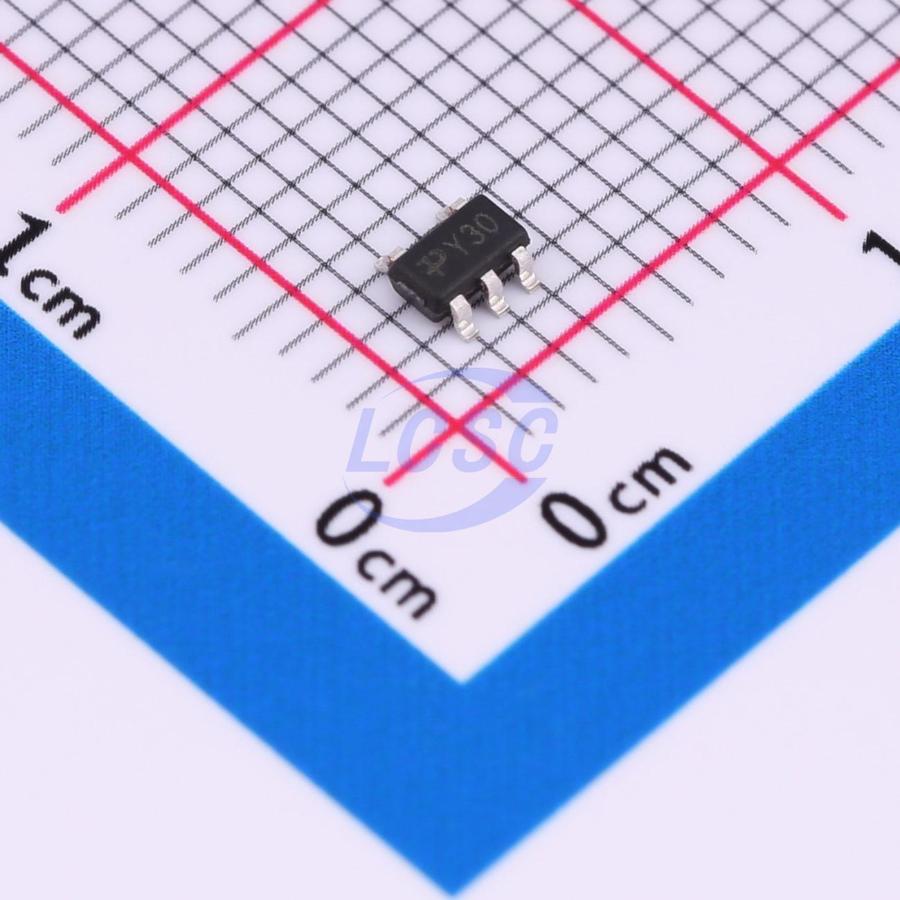

TPNCP718ASN300T1G
3V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-5RoHSActive
24V, 300mA, 2uA, High PSRR Voltage Regulator
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPNCP718ASN300T1G
- Store part #
- C18212641
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,815 in stock
#C18212641
Stock & price checked 21 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.83 | ₹74.15 |
| 50+ | ₹12.90 | ₹645.00 |
| 150+ | ₹12.08 | ₹1,812.00 |
| 500+ | ₹11.05 | ₹5,525.00 |
| 3,000+ | ₹10.58 | ₹31,740.00 |
| 6,000+ | ₹10.31 | ₹61,860.00 |
5 × ₹14.83
₹74.15
excl. GST
₹87.50 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPNCP718ASN300T1G
₹74.15 for 5 + GST
Specifications
- Output Voltage
- 3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 24V
- Features
- Enable control;Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.037 g
Overview
The Devices is a low-dropout (LDO) voltage regulators with enable function offering the benefits of high input voltage, low-dropout voltage, low-power consumption, and miniaturized packaging. The features of low quiescent current as low as 2.0 μA and zero disable current is ideal for powering the battery equipment to a longer service life. The Devices is stable with the ceramic output capacitor over its wide input range from 2V to 24V and the entire range of output load current.
Applications
- Portable, Battery Powered Equipment
- Low Power Microcontrollers
- Laptop, Palmtops and PDAs
- Wireless Communication Equipment
- Audio Video Equipment
- Car Navigation Systems
- Industrial Controls
- Weighting Scales
- Meters
- Home Automation
Key features
- 2 μA Ground Current at no Load
- ±2% Output Accuracy 300mA Output Current
- Wide Operating Input Voltage Range: 2V to 24V
- Dropout Voltage: 0.35V at 100mA (V_OUT = 5V)
- Support Fixed Output Voltage 1.8V, 2.5V, 3.0V, 3.3V, 5V
- Stable with Ceramic or Tantalum Capacitor
- Current Limit Protection
- Over-Temperature Protection
- SOT-23-5 Package Available
