TECH PUBLICDatasheet (PDF)

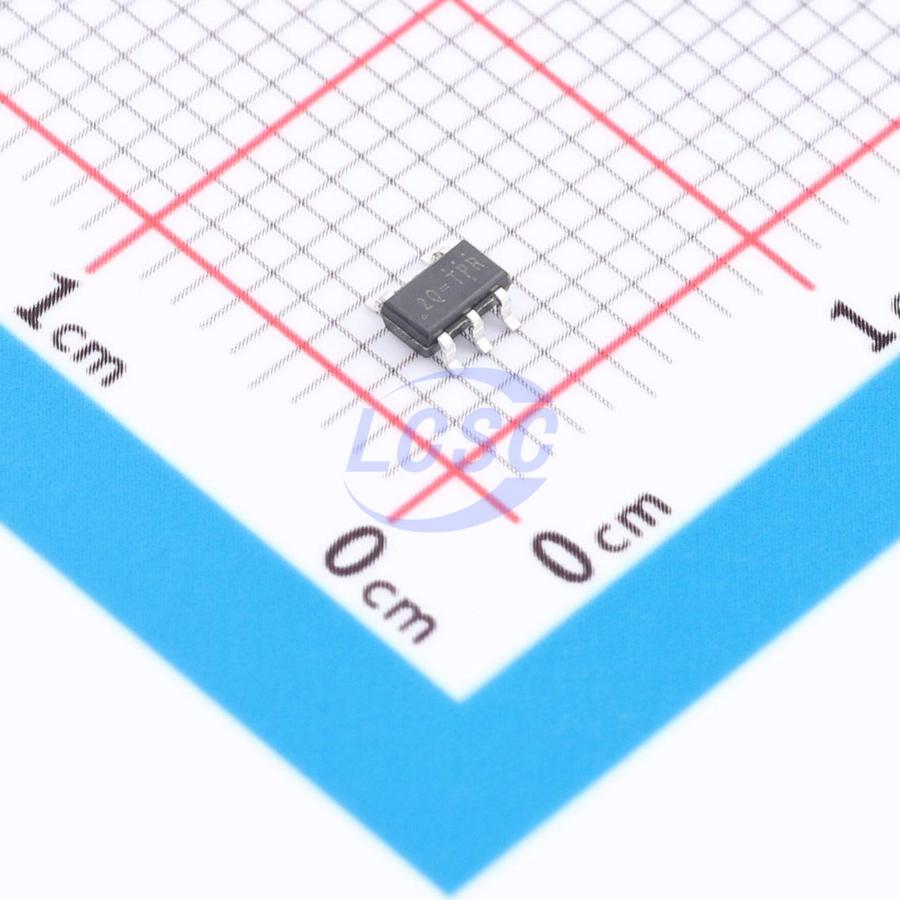

TPRT9080-28GJ5
2.8V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23-5ROHS CompliantActive
IC REG LINEAR 2.8V 600mA SOT-23-5
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPRT9080-28GJ5
- Store part #
- C49451995
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,425 in stock
#C49451995
Stock & price checked 43 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.69 | ₹68.45 |
| 50+ | ₹10.84 | ₹542.00 |
| 150+ | ₹9.39 | ₹1,408.50 |
| 500+ | ₹8.32 | ₹4,160.00 |
| 3,000+ | ₹7.46 | ₹22,380.00 |
| 6,000+ | ₹7.03 | ₹42,180.00 |
5 × ₹13.69
₹68.45
excl. GST
₹80.77 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPRT9080-28GJ5
₹68.45 for 5 + GST
Specifications
- Output Voltage
- 2.8V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 600mA
- Output Type
- Fixed
- Features
- Enable control;Over Current Protection;Thermal shutdown;Output discharge
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.037 g
Overview
The TPRT9080 series are low-dropout (LDO) voltage regulators featuring a wide input voltage range (1.2V to 5.5V), low dropout voltage, low power consumption, and compact packaging. With only 2μA quiescent current, these devices are ideal for powering battery-operated always-on systems that require extremely low idle-state power consumption to extend battery life. Shutdown mode can be activated by selecting a variant with an EN pin and pulling it low, reducing shutdown current to a typical value of just 10nA. This series of linear regulators maintains stability with ceramic output capacitors across a wide input voltage range of 1.2V to 5.5V and the full output load current range (0mA to 600mA).
Applications
- Portable battery-powered devices
- Low-power microcontrollers
- Laptops, handheld computers, and PDAs
- Wireless communication devices
- Audio/video equipment
Key features
- 2μA quiescent ground current
- ±2% output accuracy
- 600mA output current
- 10nA shutdown current (optional)
- Wide input voltage range: 1.2V to 5.5V
- Dropout voltage: 0.32V at 600mA output current with VOUT = 3.3V
- Fixed output voltage options: 1.2V, 1.5V, 1.6V, 1.8V, 2.5V, 2.8V, 3.0V, 3.3V
- Stable operation with ceramic or tantalum capacitors
- Current limit protection and over-temperature protection
- SOT23-5 package
