TECH PUBLICDatasheet (PDF)

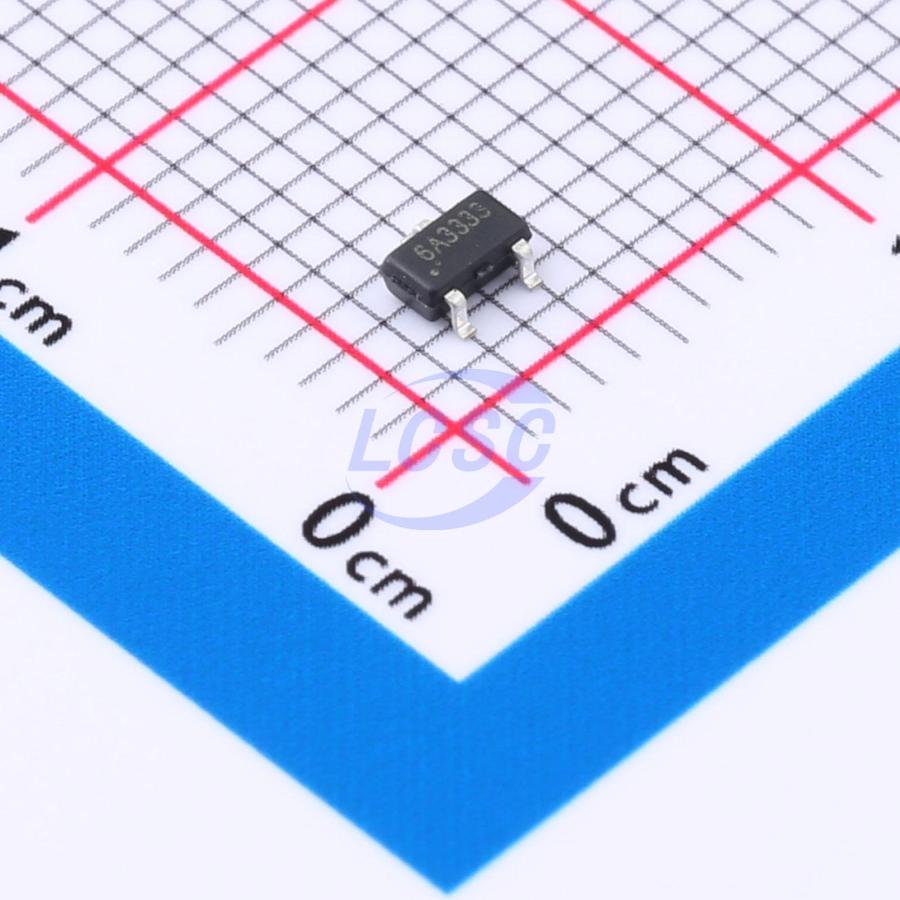

TPRT9161-33GV
Linear Voltage Regulator IC Positive Fixed 1 Output 300mA SOT-23-3L
SOT-23-3LRoHSActive
Ultra-low power consumption, low dropout, high current linear regulator
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPRT9161-33GV
- Store part #
- C5342422
- Package / case
- SOT-23-3L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,790 in stock
#C5342422
Stock & price checked 21 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.83 | ₹74.15 |
| 50+ | ₹13.01 | ₹650.50 |
| 150+ | ₹12.22 | ₹1,833.00 |
| 500+ | ₹11.25 | ₹5,625.00 |
| 3,000+ | ₹10.23 | ₹30,690.00 |
| 6,000+ | ₹9.96 | ₹59,760.00 |
5 × ₹14.83
₹74.15
excl. GST
₹87.50 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPRT9161-33GV
₹74.15 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -25℃~+85℃@(Ta)
- Supply Current (Iq)
- 800nA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 18V
- Features
- Enable control;Over Current Protection;Short Circuit Protection;Output discharge
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.034 g
Overview
The TPRT9161 series is a high-precision, low-power, low-dropout 3-terminal CMOS step-down voltage regulator. Maximum input voltage up to 18V with 300mA output current. The TPRT9161 series features very low quiescent current (0.8μA Typ.), with built-in control functions, current limiting circuit, foldback short-circuit protection, and enable-controlled automatic output capacitor discharge.
Applications
- Regulated power supply for battery-powered devices
- Regulated power supply for home appliances
- Regulated power supply for portable communication devices, digital cameras, and digital audio equipment
Key features
- Maximum output current: 300mA
- Input-output voltage differential: 160mV @ 100mA
- Maximum input voltage: 18V
- Output voltage range: 1.5V - 5.0V
- Low quiescent current: 0.8μA Typ
- Protection features: overcurrent protection, short-circuit protection
- Output capacitor: compatible with ceramic capacitors
