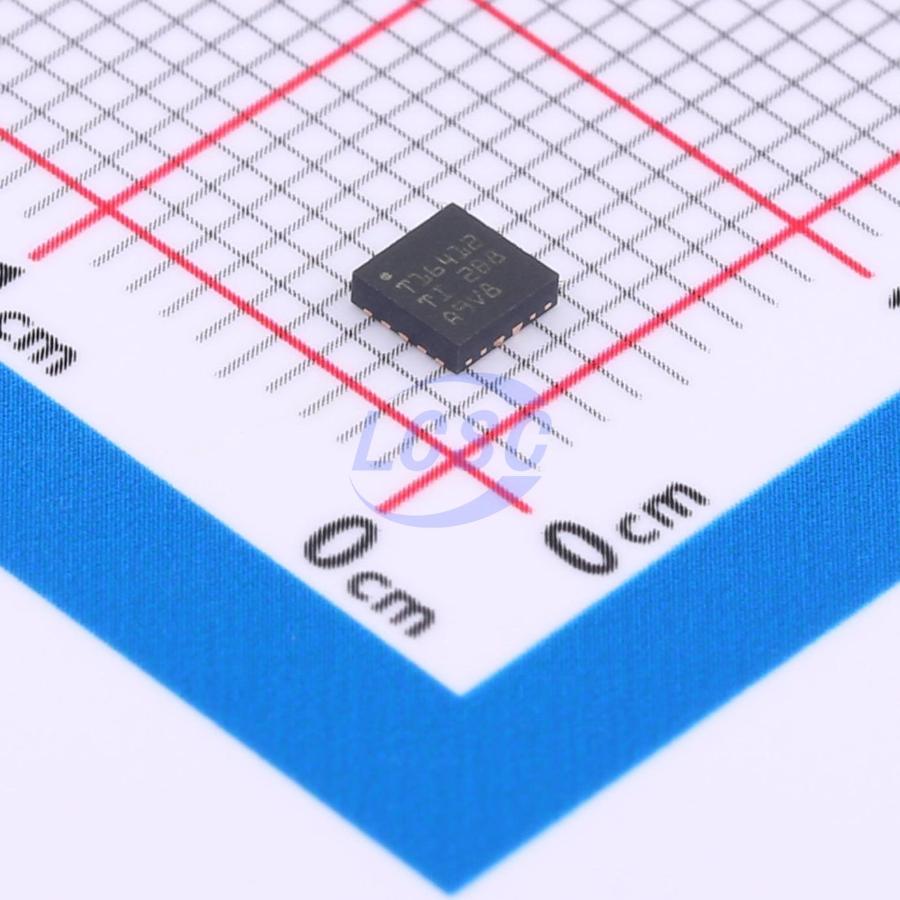

TPS16412DRCR

The TPS1641x series is an integrated electronic fuse device with precise power limit or current limit. This device series provides powerful protection functions through integrated overcurrent protection, overvoltage protection, input-to-output short-circuit detection, and overheat protection. The TPS16410, TPS16411, TPS16414, and TPS16415 devices provide a ±5% power limit for the load at 15W and also offer a configurable blanking time for transient overload or overcurrent events. The TPS16410, TPS16411, TPS16414, and TPS16415 can be used in low-power circuits (LPC) to achieve a 15W power limit compliant with IEC60335 and UL60730 standards. The TPS1641x devices can protect against adjacent pin short-circuits and pin short-circuits to GND faults. Applications such as backplane power protection in PLC and DCS modules configure the current limit through a resistor on the ILIM pin. The TPS16412, TPS16413, TPS16416, and TPS16417 devices provide a ±6% current limit for the load at 1A and also offer output slew rate control through the dVdT pin to charge large capacitive loads during power-up. The TPS1641x has input-to-output short-circuit detection and will indicate an input-to-output short-circuit on the FLT pin. The FLT pin can be provided as a digital input to the MCU or used to drive an external PFET. These devices are rated for an operating junction temperature range of –40°C to +125°C.

Applications

• Refrigerators and freezers
• Ovens
• Dishwashers
• HVAC valve and actuator control
• Ventilators
• Anesthesia delivery systems

Key features

• Operating voltage range (IN): – 4.5V to 40V (power-limited devices) – 2.7V to 40V (current-limited devices)
• Output withstands negative voltages up to -1V
• Ultra-low on-resistance: RON = 152mΩ (typical)
• 2W to 64W power limiting
• 0.03A to 1.8A current limiting
• IN-to-OUT short-circuit detection and indication on FLT pin
• FLT output for diagnostics and driving external PFET
• ±5% accurate power limiting at 15W (power-limited devices)
• ±6% accurate current limiting at 1A (current-limited devices)
• Configurable overvoltage protection
• Configurable overcurrent protection (IOCP)
• Configurable blanking time for transient currents
• Overvoltage protection up to 60V via external FET
• Adjustable output slew rate control (dVdt) for inrush current protection
• Enable and shutdown control
• Output load current monitoring on IOCP pin
• Overtemperature protection (OTP) with thermal shutdown
• Small footprint: QFN 3 × 3mm, 0.5mm pitch
