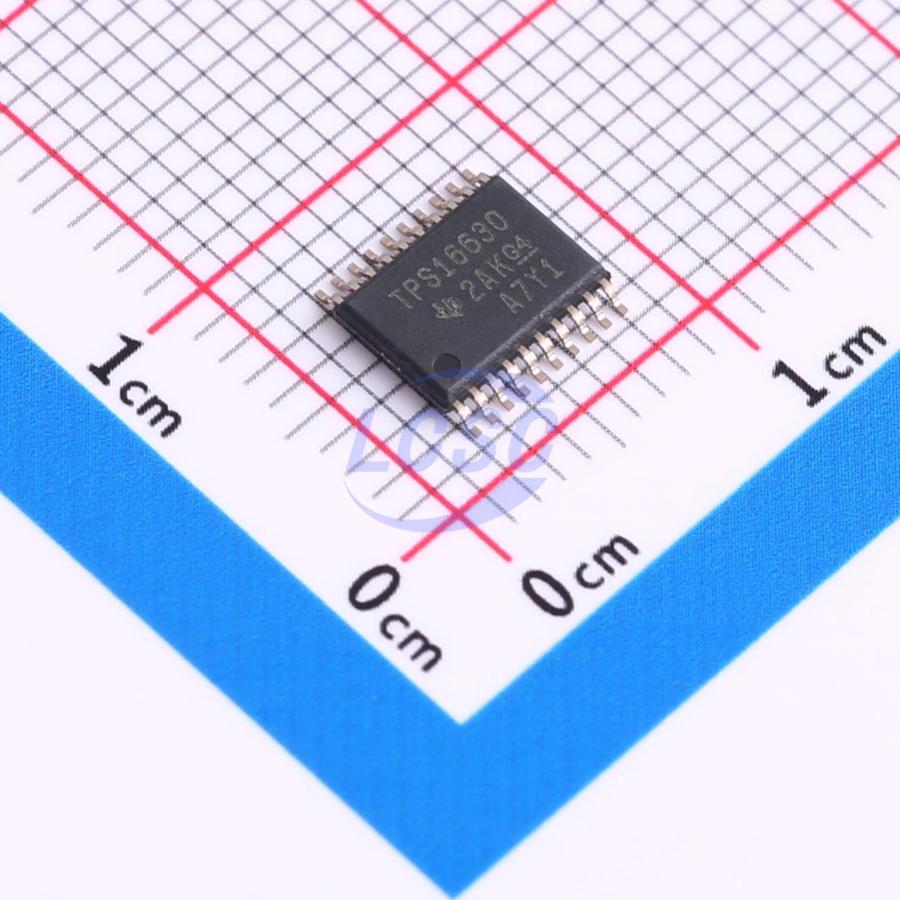

TPS16630PWPR

Surge Protection IC 4.5V~60V HTSSOP-20

HTSSOP-20ROHS3 CompliantActive

IC SURGE STOPPER 4.5V~60V HTSSOP-20

Manufacturer: TI
Manufacturer part #: TPS16630PWPR
Store part #: C1849461
Package / case: HTSSOP-20
Category: Current Regulation/Management
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,034 in stock

#C1849461

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹370.47	₹370.47
10+	₹311.18	₹3,111.80
30+	₹274.05	₹8,221.50
100+	₹235.82	₹23,582.00
500+	₹218.68	₹1,09,340.00
1,000+	₹211.30	₹2,11,300.00

Quantity (min 1)

1 × ₹370.47

₹370.47

excl. GST

₹437.15 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,000 per reel

TPS16630PWPR

₹370.47 for 1 + GST

Specifications

Features: Overcurrent Protection;Short-Circuit Protection;Overvoltage clamping protection;Under-voltage lockout;Thermal Protection;Overload protection
Voltage - Supply: 4.5V~60V
Operating Temperature: -40℃~+125℃
Trigger Current: 600mA~6A
FET Type: Integrated FET
Width: 4.4mm
Length: 6.5mm
Height: 1.2mm
Number of Channels: 1
RDS(on): 30.44mΩ

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.001 g

Overview

The TPS1663x is an easy-to-use, positive 60V, 6A electronic fuse with an integrated 31mΩ FET. It provides protection for the load, power supply, and the electronic fuse itself, along with adjustable features such as precise overcurrent protection, fast short-circuit protection, output slew rate control, overvoltage protection, and undervoltage lockout. The TPS16332 device integrates an adjustable output power limit (PLIM) function to simplify and enable compliance with standards such as IEC61010-1 and UL1310. The device also features adjustable overcurrent protection. PGOOD can be used to enable and disable downstream DC/DC converter control. The shutdown pin allows external control of enabling and disabling the internal FET and placing the device into a low-current shutdown mode. For system status monitoring and downstream load control, the device provides fault and precise current monitor outputs. The MODE pin can be used to flexibly configure the device between two current-limiting fault responses (latch/auto-retry). These devices are available in a 4mm × 4mm 24-pin VQFN package, rated for a temperature range of -40°C to +125°C.

Applications

Factory Automation and Control – PLC, DCS, HMI, I/O Modules, Sensor Hubs
Motor Drives – CNC, Encoder Power Supplies
Electronic Circuit Breakers
Telecom Radio
Industrial Printers

Key features

Operating voltage range: 4.5V to 60V
Absolute maximum voltage: 67V
Integrated 60V, 31mΩ RON hot-swap FET
Adjustable current limit: 0.6A to 6A (±7%)
Low quiescent current: 21μA in shutdown
Adjustable output power limit (TPS16632 only) (±6%)
Adjustable UVLO and OVP cutoff with ±2% accuracy
39V fixed maximum overvoltage clamp (TPS16632 only)
Adjustable output slew rate control for inrush current limiting; charges large and unknown capacitive loads via thermal regulation during device power-up
Power good output (PGOOD)
Selectable overcurrent fault response (auto-retry and latch-off modes)
Analog current monitor (IMON) output (±6%)
UL 2367 certified
IEC 62368-1 certified
Easy-to-use 24-pin VQFN package
