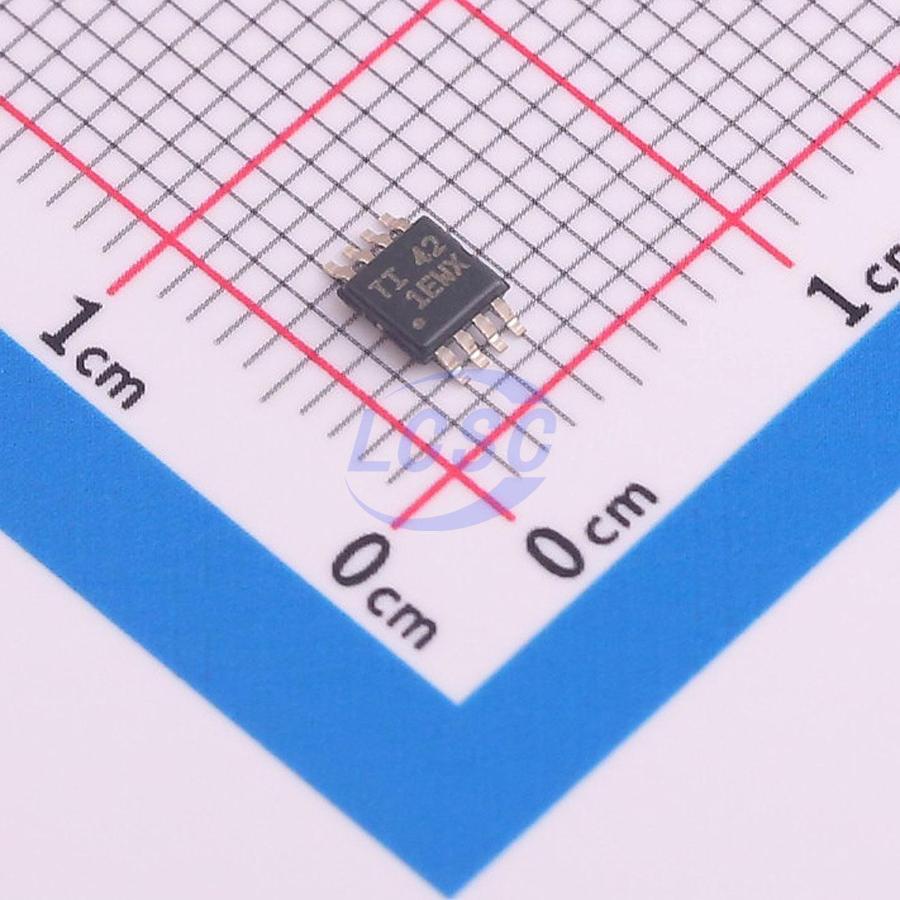

TPS1H200AQDGNRQ1

The TPS1H200A-Q1 device is a fully protected single-channel high-side power switch with an integrated 200mΩ NMOS power FET. The adjustable current limit improves system reliability by limiting inrush or overload current. High-accuracy current limiting enhances overload protection, simplifying leading-edge power supply design. In addition to current limiting, other configurable features provide design flexibility in terms of functionality, cost, and thermal dissipation. The device supports full diagnostics with a digital status output. Open-load detection is available in both ON and OFF states. The device operates with or without an MCU. Stand-alone mode allows the device to be used in isolated systems.

Applications

• Body lighting
• Infotainment systems
• Advanced Driver Assistance Systems (ADAS)
• Single-channel high-side sub-module switch
• General resistive, inductive, and capacitive loads

Key features

• Meets automotive application requirements with the following AEC-Q100 compliant characteristics:
• Device temperature grade 1: -40°C to +125°C ambient operating temperature range
• Device HBM ESD classification level H2
• Device CDM ESD classification level C4B
• Single-channel 200mΩ smart high-side switch, wide operating voltage: 3.4 V to 40 V
• Ultra-low standby current below 500nA
• Adjustable current limit (via external resistor)
• ±15% at ≥500mA
• ±10% at ≥1.5A
• Configurable behavior after current limiting:
• "Hold" mode
• "Latch" mode (with adjustable delay time)
• "Auto-retry" mode
• Supports standalone operation (no MCU required)
• Protection:
• Short-to-ground and overload protection
• Thermal shutdown and thermal oscillation
• Negative voltage clamp for inductive loads
• Loss-of-ground and loss-of-power protection
• Diagnostics:
• Overload and short-to-ground detection
• Open-load and short-to-battery detection (in ON or OFF state)
• Thermal shutdown and thermal oscillation
