TIDatasheet (PDF)

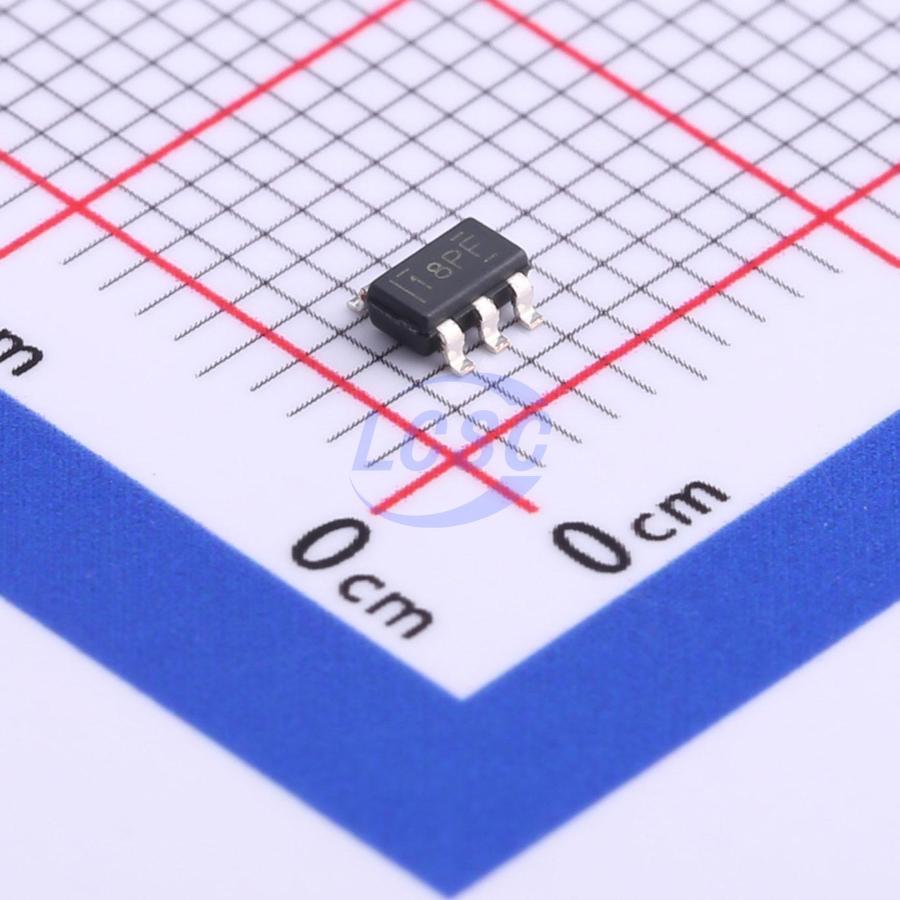

TPS2069DDBVR
1 Active High 1.5A Low Side Switch SOT-23-5 Power Distribution Switches, Load Drivers RoHS
SOT-23-5ROHS3 CompliantActive
Current Limited, Power-Distribution Switches
- Manufacturer
- TI
- Manufacturer part #
- TPS2069DDBVR
- Store part #
- C414626
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9,145 in stock
#C414626
Stock & price checked 35 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.93 | ₹59.65 |
| 50+ | ₹9.30 | ₹465.00 |
| 150+ | ₹7.99 | ₹1,198.50 |
| 500+ | ₹7.00 | ₹3,500.00 |
| 3,000+ | ₹6.22 | ₹18,660.00 |
| 6,000+ | ₹5.82 | ₹34,920.00 |
5 × ₹11.93
₹59.65
excl. GST
₹70.39 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPS2069DDBVR
₹59.65 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Under-voltage lockout;Reverse current blocking;Output discharge function;Soft-start;Integrated charge pump
- number of channels
- 1
- Control Input Logic
- Active High
- Maximum Continuous Current
- 1.5A
- Operating Voltage
- 4.5V~5.5V
- RDS(on)
- 76mΩ
- Type
- Low Side Switch
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 2 (1 year)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.055 g
Overview
The TPS2069D power-distribution switch family is intended for applications such as USB where heavy capacitive loads and short circuits are likely to be encountered. The device can continuously deliver up to 1.5 A output current. The TPS2069D limits the output current to a safe level by operating in a constant-current mode when the output load exceeds the current limit threshold. This provides a predictable fault current under all conditions. The fast overload response time eases the burden on the main 5-V supply to provide regulated power when the output is shorted. The power-switch rise and fall times are controlled to minimize current surges during turnon and turnoff.
Applications
- USB Ports/Hubs
- Laptops
- Desktops
- High-Definition Digital TVs
- Set Top Boxes
- Short Circuit Protection
Key features
- Single Power Switch Family
- Rated currents of 1.5 A ±20% Accurate, Fixed, Constant Current Limit
- Fast Overcurrent Response: 2 µs Deglitched Fault Reporting Output Discharge
- Reverse Current Blocking
- Built-in Soft Start
- Ambient Temperature Range: -40°C to 85°C
- UL Listed and CB-File No. E169910
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPS2069CDBVT#C130051TI · SOT-23-5 | TI | SOT-23-5 | 3 | ₹201.93 · 3 in stock | View |
