TIDatasheet (PDF)

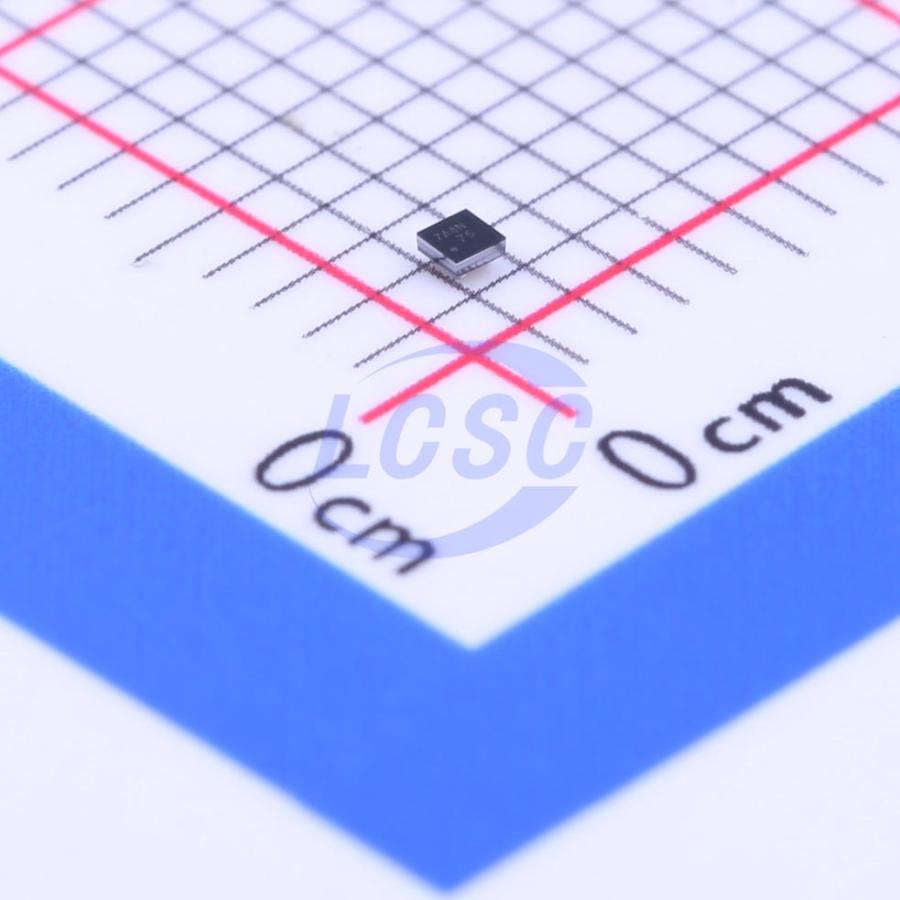

TPS22910AYZVR
High Side Switch 1 Channel 2A DSBGA-4
DSBGA-4ROHS3 CompliantActive
Ultra-small, low on-resistance load switch with controlled turn-on function
- Manufacturer
- TI
- Manufacturer part #
- TPS22910AYZVR
- Store part #
- C205966
- Package / case
- DSBGA-4
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,695 in stock
#C205966
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹35.43 | ₹177.15 |
| 50+ | ₹27.51 | ₹1,375.50 |
| 150+ | ₹24.12 | ₹3,618.00 |
| 500+ | ₹19.87 | ₹9,935.00 |
| 3,000+ | ₹17.99 | ₹53,970.00 |
| 6,000+ | ₹16.86 | ₹1,01,160.00 |
5 × ₹35.43
₹177.15
excl. GST
₹209.04 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPS22910AYZVR
₹177.15 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Under-voltage lockout;Reverse current blocking;Soft-start
- number of channels
- 1
- Control Input Logic
- Active Low
- Maximum Continuous Current
- 2A
- Operating Voltage
- 1.4V~5.5V
- RDS(on)
- 60mΩ
- Type
- High Side Switch
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.029 g
Overview
Integrated single load switch. 4-pin wafer-level chip-scale package (nominal dimensions) 0.9mm×0.9mm, 0.5mm pitch, 0.5mm height (YZV). Input voltage range: 1.4V to 5.5V. Low on-resistance. 2A maximum continuous switch current. Low-threshold control input, controlled slew rate, undervoltage lockout, full-time reverse current protection, fast output discharge transistor (TPS22913B/C devices).
Applications
- Laptops and ultrabooks
- Tablets and set-top boxes
- Portable industrial/medical equipment
- Portable media players
- Point-of-sale terminals
- GPS navigation devices
- Digital camcorders
- Portable instrumentation
- Smartphones/wireless handsets
Key features
- Integrated single load switch
- 4-pin wafer-level chip-scale package (nominal dimensions) 0.9mm×0.9mm, 0.5mm pitch, 0.5mm height (YZV)
- Input voltage range: 1.4V to 5.5V
- Low on-resistance
- r = 60mΩ at VIN = 5V; r = 61mΩ at VIN = 3.3V; r = 74mΩ at VIN = 1.8V; r = 84mΩ at VIN = 1.5V
- 2A maximum continuous switching current
- Low-threshold control input
- Controlled slew rate
- Undervoltage lockout
- Full-time reverse current protection
- Quick output discharge transistor (TPS22913B/C devices)
