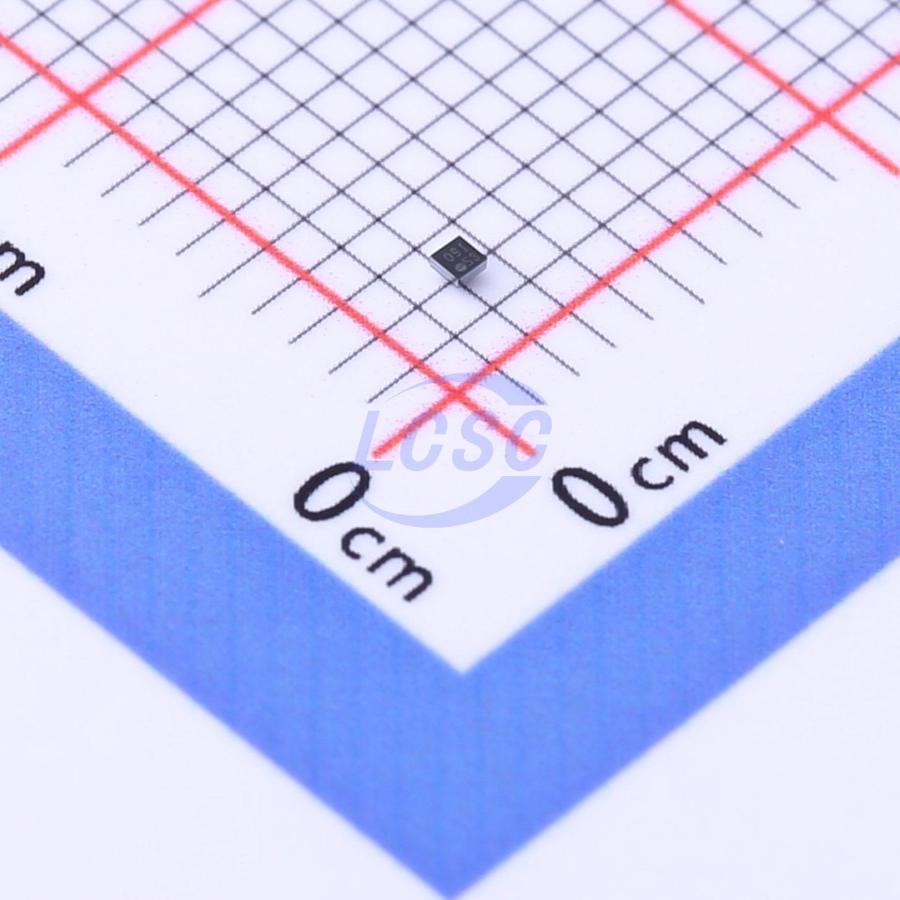

TPS22914BYFPR

The TPS22914/15 is a small, low-RON, single-channel load switch with controlled slew rate. The device incorporates an N-channel MOSFET that operates over an input voltage range of 1.05 V to 5.5 V and supports a maximum continuous current of 2A. The switch is controlled by a single enable input, allowing direct connection to low-voltage control signals. The small footprint and low RON make this device ideal for space-constrained, battery-powered applications. The wide input voltage range makes it a versatile solution for a variety of voltage rails. The device's controlled rise time significantly reduces inrush current caused by large bulk load capacitances, thereby reducing or eliminating power supply droop. By integrating a 143Ω pull-down resistor for quick output discharge (QOD) when the switch is disabled, the TPS22915 further reduces overall solution size.

Applications

• Smartphones, mobile phones
• Ultra-slim laptops, Ultrabooks/notebooks
• Tablets, phablets
• Wearable technology
• Solid-state drives
• Digital cameras

Key features

• Input voltage range: 1.05 V to 5.5 V
• Low on-resistance (RON):
• RON = 37mΩ (typical at VIN = 5V)
• RON = 38mΩ (typical at VIN = 3.3V)
• RON = 43mΩ (typical at VIN = 1.8V)
• 2A maximum continuous switching current
• Low quiescent current: 7.7μA (typical at VIN = 3.3V)
• Low control input threshold compatible with GPIO interfaces at 1V or higher
• Controlled slew rate:
• tR(TPS22914B/15B) = 64μs at VIN = 3.3V
• tR(TPS22914C/15C) = 913μs at VIN = 3.3V
• Quick output discharge (TPS22915 only)
• Ultra-small wafer-level chip-scale package: 0.78mm × 0.78mm, 0.4mm pitch, 0.5mm height (YFP)
• ESD performance per JESD 22: 2kV HBM and 1kV CDM
