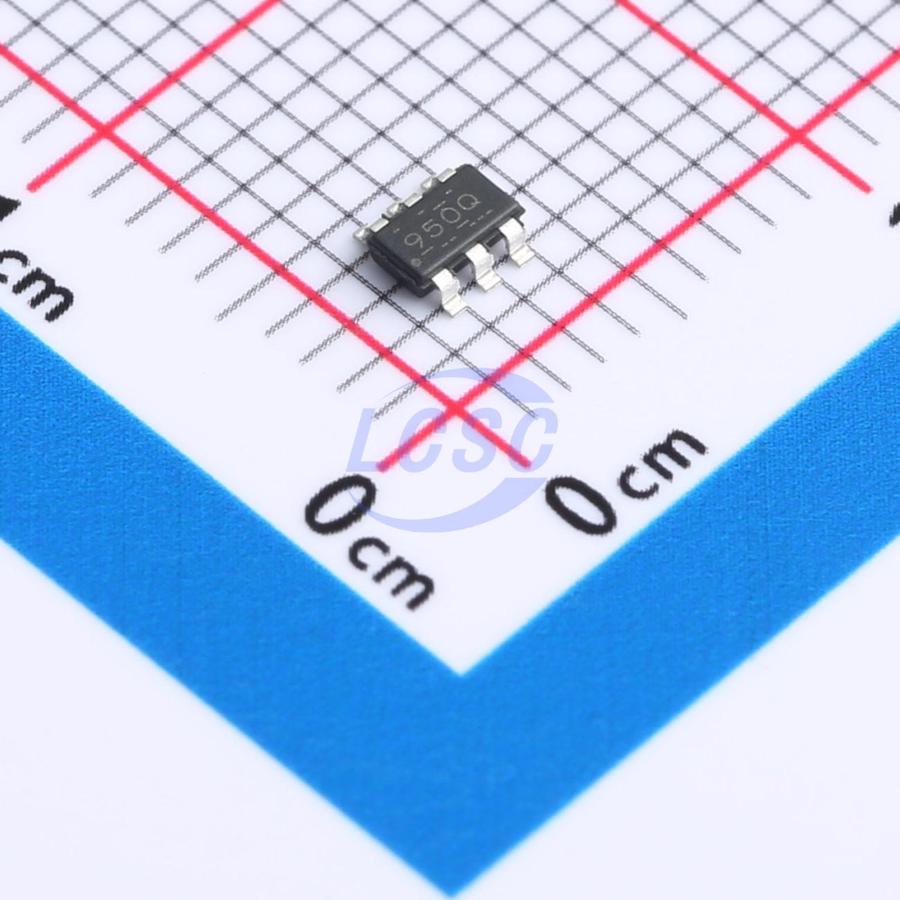

TPS22950CQDDCRQ1

The TPS22950-Q1 is a small, single channel load switch with robust protection against fault cases with adjustable output current limiting, reverse current blocking, and thermal shutdown. The switch ON state is controlled by a digital input that is capable of interfacing directly with low-voltage control signals. When power is first applied, a smart pulldown is used to keep the ON pin from floating until system sequencing is complete. After the pin is deliberately driven high (>\lor_{\parallel\mathsf{H}}), the smart pulldown is disconnected to prevent unnecessary power loss. TPS22950-Q1 is available in a standard SOT package characterized for operation over an ambient temperature range of -40°C to 125°C.

Applications

• Infotainment and cluster head unit
• Automotive cluster display
• ADAS surround view system
• ECU
• Body control module and gateway

Key features

• Qualified for automotive applications
• AEC-Q100 qualified:
• Device temperature grade 1: -40°C to 125°C ambient operating temperature range
• Input operating voltage range (V_IN): 1.8 V - 5.5 V
• Output current limit (I_LIMIT): 0.05 A - 3.5 A (typ)
• Thermal shutdown (TSD)
• ON-resistance (R_ON):
• R_ON at V_IN = 5 V: 34 mΩ (typ)
• R_ON at V_IN = 3.3 V: 41 mΩ (typ)
• Slow turn-ON timing limits inrush current (typ):
• tON at V_IN = 5 V: 832 μs
• tON at V_IN = 3.3 V: 695 μs
• Always-ON true reverse current blocking (RCB)
• Fault indication (FLT)
• Quick output discharge (QOD): 130 Ω
• Smart ON pin pulldown (RpD,ON): ON ≥ V_IH (ION): 50 nA (max) ON ≤ V_IL (RPD,ON): 500 kΩ (typ)
• Low power consumption: ON state (I_Q): 40 μA (typ) OFF state (I_SD): 0.2 μA (typ)
• UL 2367 recognition – file no. E169910 Certified from I_LIM = 66 mA to 2.46 A
