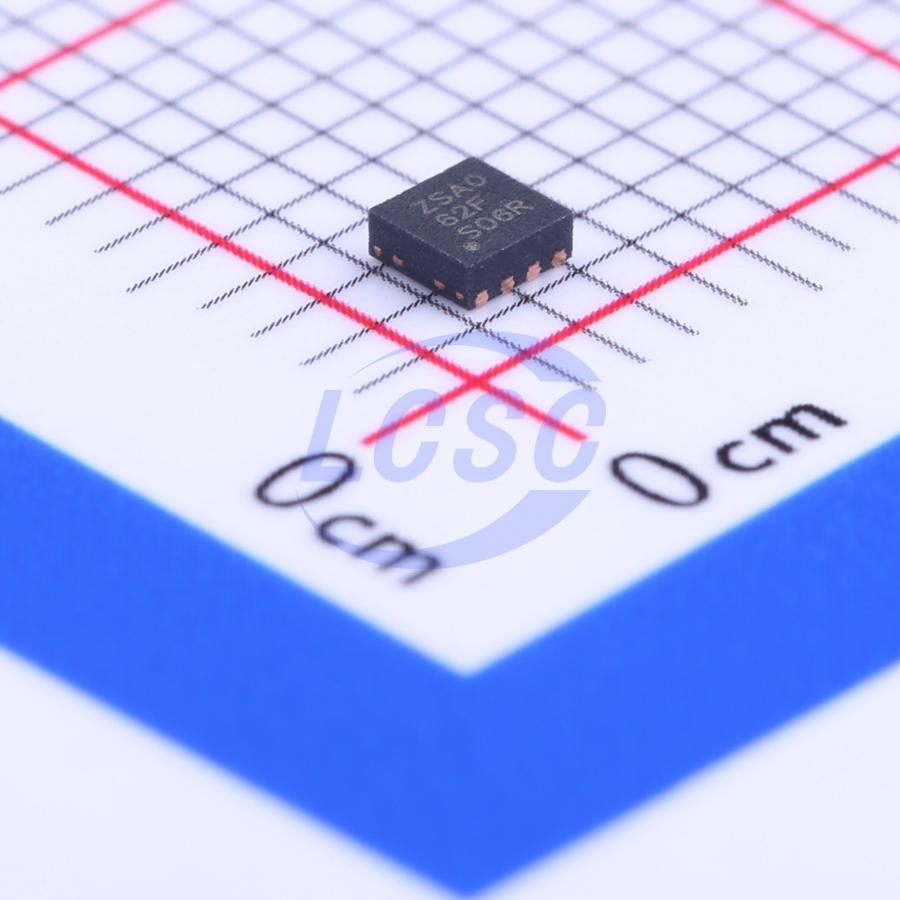

TPS22965DSGR
Load Switch 1 Channel 6A UDFN-8-EP(2x2)
UDFN-8-EP(2x2)ROHS CompliantActive
5.7V, 6A, low on-resistance load switch
- Manufacturer
- TI
- Manufacturer part #
- TPS22965DSGR
- Store part #
- C122837
- Package / case
- UDFN-8-EP(2x2)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
15,830 in stock
#C122837
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹27.40 | ₹137.00 |
| 50+ | ₹21.75 | ₹1,087.50 |
| 150+ | ₹19.32 | ₹2,898.00 |
| 500+ | ₹16.29 | ₹8,145.00 |
| 3,000+ | ₹14.94 | ₹44,820.00 |
| 6,000+ | ₹14.14 | ₹84,840.00 |
5 × ₹27.40
₹137.00
excl. GST
₹161.66 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPS22965DSGR
₹137.00 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Soft-start;Output discharge function
- number of channels
- 1
- Maximum Continuous Current
- 6A
- Control Input Logic
- Active High
- Operating Voltage
- 800mV~5.7V
- RDS(on)
- 16mΩ
- Type
- Load Switch
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.043 g
Overview
The TPS22965 is a single-channel load switch with configurable rise time to minimize inrush current. The device incorporates an N-channel MOSFET that operates over an input voltage range of 0.8V to 5.7V and supports a maximum continuous current of 6A. The switch is controlled by an on/off input (ON) that can be directly interfaced with low-voltage control signals. The TPS22965 includes a 225Ω on-chip load resistor for fast output discharge when the switch is turned off. The TPS22965 is available in a small, space-saving 2.00mm x 2.00mm 8-pin SON package (DSG) with an integrated thermal pad to support higher power dissipation. The device is rated for an operating temperature range of -40°C to 85°C in a still-air environment.
Applications
- Ultrabook
- Laptop/Netbook
- Tablet
- Consumer Electronics
- Set-Top Box/Home Gateway
- Telecom Systems
- Solid State Drive (SSD)
Key features
- Integrated single-channel load switch input voltage range: 0.8V to 5.7V
- Ultra-low on-resistance (R_ON)
- V_H = 5V: R = 16mΩ
- V_N = 3.6V: R = 16mΩ
- V = 1.8V: R = 16mΩ
- 6A maximum continuous switching current
- Low quiescent current (50μA)
- Low control input threshold
- Compatible with 1.2V, 1.8V, 2.5V, and 3.3V logic
- Configurable rise time
- Quick output discharge (QOD)
- Small outline no-lead (SON) 8-pin package with thermal pad
- ESD performance per JESD 22: 2000V Human Body Model (HBM) and 1000V Charged Device Model (CDM)
