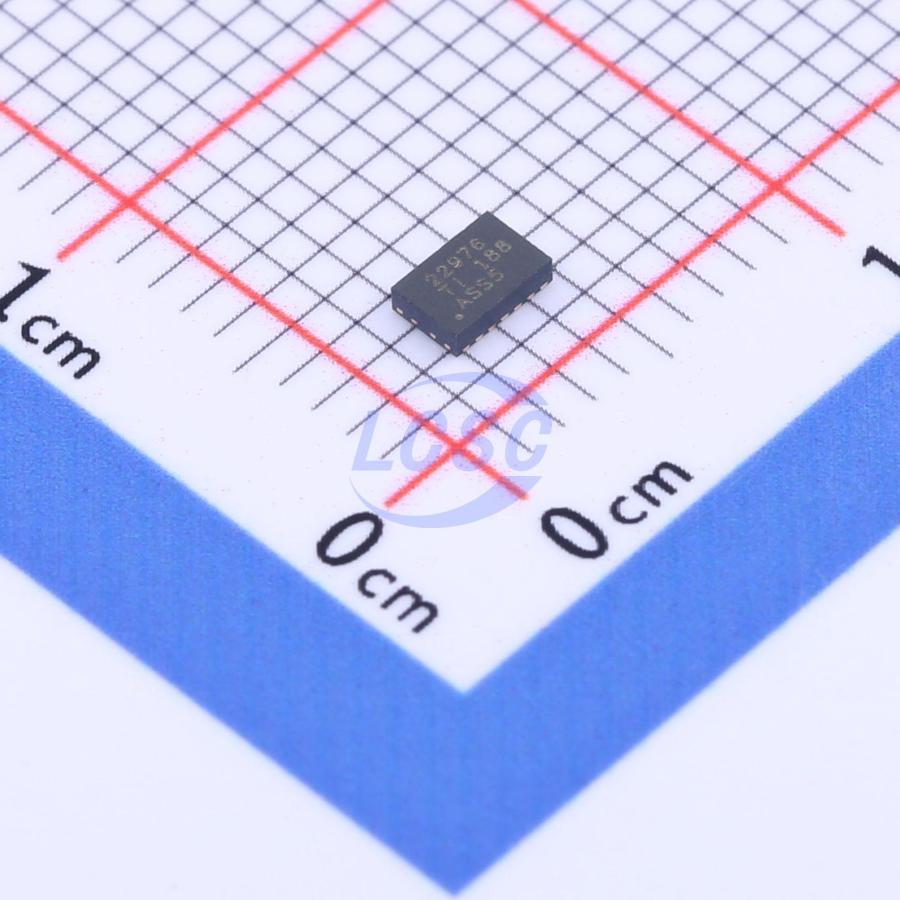

TPS22976DPUR
Load Switch 2 Channel 6A WSON-14-EP(2x3)
WSON-14-EP(2x3)ROHS3 CompliantActive
5.7V, 6A, dual-channel load switch with on-resistance
- Manufacturer
- TI
- Manufacturer part #
- TPS22976DPUR
- Store part #
- C2680350
- Package / case
- WSON-14-EP(2x3)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,095 in stock
#C2680350
Stock & price checked 46 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹33.26 | ₹166.30 |
| 50+ | ₹26.16 | ₹1,308.00 |
| 150+ | ₹23.11 | ₹3,466.50 |
| 500+ | ₹19.32 | ₹9,660.00 |
| 3,000+ | ₹16.52 | ₹49,560.00 |
| 6,000+ | ₹15.51 | ₹93,060.00 |
5 × ₹33.26
₹166.30
excl. GST
₹196.23 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPS22976DPUR
₹166.30 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+105℃
- Features
- Over temperature protection;Output discharge function
- number of channels
- 2
- Maximum Continuous Current
- 6A
- Control Input Logic
- Active High
- Operating Voltage
- 600mV~5.7V
- RDS(on)
- 14mΩ
- Type
- Load Switch
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 2 (1 year)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.03 g
Overview
The TPS22976 product family includes three devices: TPS22976, TPS22976A, and TPS22976N. Each device is a slew-rate-controlled dual-channel load switch. The device contains two N-channel MOSFETs operating over an input voltage range of 0.6V to 5.7V, supporting up to 6A continuous current per channel. Each switch can be independently controlled by an on/off input (ON1 and ON2), which is compatible with direct connection to low-voltage control signals. The TPS22976 features thermal shutdown that turns off the switch when the junction temperature exceeds a threshold, and the switch re-enables once the junction temperature returns to a safe range. In addition, the TPS22976 includes an optional 230Ω on-chip discharge resistor for fast output discharge when the switch is turned off. The TPS22976 is available in a compact, space-saving 3mm × 2mm 14-SON (DPU) package with an integrated thermal pad for enhanced power dissipation. The device is rated for operation from –40°C to 105°C in a natural convection environment.
Applications
- Ultrabook
- Laptops and Netbooks
- Tablets
- Set-Top Boxes and Home Gateways
- Telecom Systems
- Solid State Drives (SSD)
Key features
- Dual-channel load switch, integrated
- Input voltage range: 0.6V to VBIAS
- VBIAS voltage range: 2.5V to 5.7V
- On-resistance:
- RON = 14mΩ (typical, VIN = 0.6V to 5V, VBIAS = 5V)
- RON = 18mΩ (typical, VIN = 0.6V to 2.5V, VBIAS = 2.5V)
- 6A maximum continuous switching current per channel
- Quiescent current for TPS22976, TPS22976N:
- 37μA (typical, dual-channel, VIN = VBIAS = 5V)
- 35μA (typical, single-channel, VIN = VBIAS = 5V)
- Quiescent current for TPS22976A:
- 85μA (typical, dual-channel, VIN = VBIAS = 5V)
- 83μA (typical, single-channel, VIN = VBIAS = 5V)
- Control input thresholds compatible with 1.2V, 1.8V, 2.5V, and 3.3V logic devices
- Configurable rise time
- Fast turn-on time (TPS22976A): tON = 17μs at VIN = 1.05V
- Thermal shutdown
- Quick output discharge (QOD) (optional)
- 14-pin SON package with thermal pad
- ESD performance tested per JESD 22: 2kV HBM and 1kV CDM
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPS22976DPUT#C2150120TI · WSON-14-EP(2x3) | TI | WSON-14-EP(2x3) | 10 | ₹17.12 · 10 in stock | View |
 | TPS22976ADPUR#C2864553TI · WSON-14-EP(2x3) | TI | WSON-14-EP(2x3) | 5 | ₹82.34 · 5 in stock | View |
 | TPS22976NDPUR#C106796TI · WSON-14-EP(2x3) | TI | WSON-14-EP(2x3) | On request | ₹65.87 · 0 in stock | View |
| TPS22976NDPUT#C2150115TI · WSON-14-EP(2x3) | TI | WSON-14-EP(2x3) | On request | ₹279.77 · 0 in stock | View | |
| SGM2596DGTES14G/TR#C5153409SGMICRO · TDFN-14AL(2x3) | SGMICRO | TDFN-14AL(2x3) | On request | ₹65.40 · 0 in stock | View | |
