TIDatasheet (PDF)

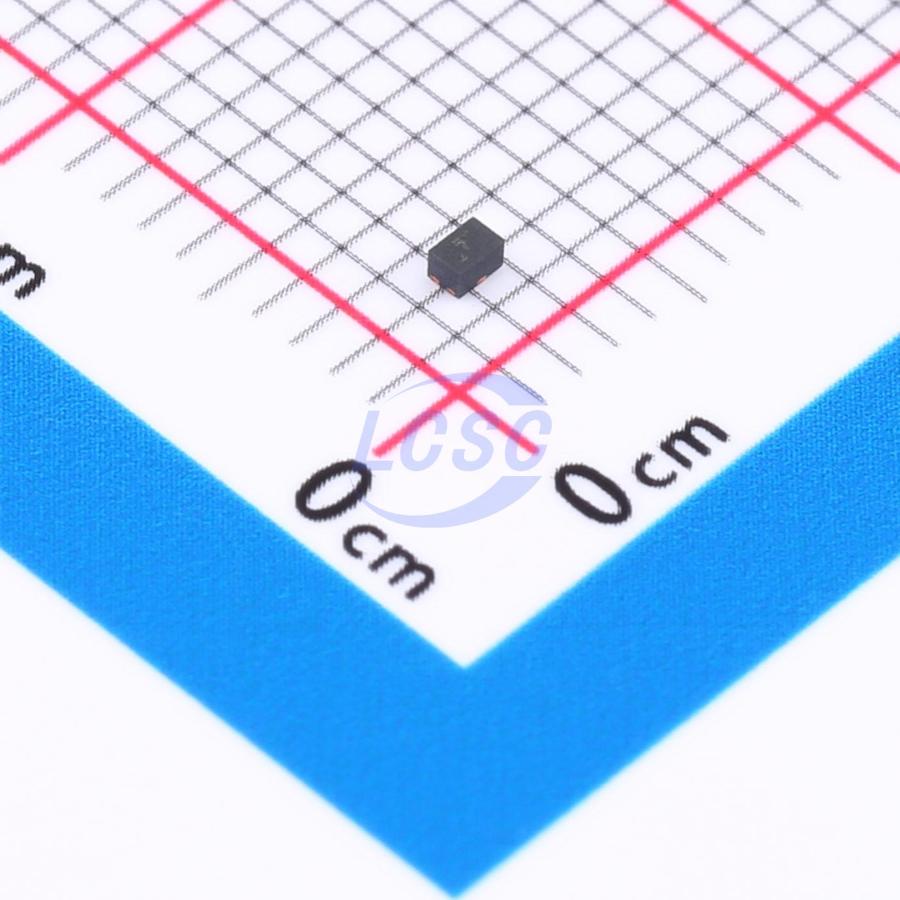

TPS22995RZFR
1 Active High 3.8A Load Switch WQFN-6(1.3x0.9) Power Distribution Switches, Load Drivers RoHS
WQFN-6(1.3x0.9)ROHS CompliantActive
5.5-V, 3.8-A, On-Resistance Load Switch with Adjustable Rise Time
- Manufacturer
- TI
- Manufacturer part #
- TPS22995RZFR
- Store part #
- C17562944
- Package / case
- WQFN-6(1.3x0.9)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,595 in stock
#C17562944
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹81.71 | ₹81.71 |
| 10+ | ₹58.89 | ₹588.90 |
| 30+ | ₹47.38 | ₹1,421.40 |
| 100+ | ₹36.08 | ₹3,608.00 |
| 500+ | ₹29.34 | ₹14,670.00 |
| 1,000+ | ₹25.64 | ₹25,640.00 |
1 × ₹81.71
₹81.71
excl. GST
₹96.42 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPS22995RZFR
₹81.71 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Features
- Over temperature protection;Output discharge function;Soft-start
- number of channels
- 1
- Control Input Logic
- Active High
- Maximum Continuous Current
- 3.8A
- RDS(on)
- 18mΩ
- Operating Voltage
- 400mV~5.5V
- Type
- Load Switch
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.012 g
Overview
The TPS22995 is a single-channel load switch that provides a configurable rise time to minimize inrush current. The device contains an N-channel MOSFET that can operate over an input voltage range of 0.4 V to 5.5 V and can support a maximum continuous current of 3.8 A. The switch is controlled by an on and off input (ON), which is capable of interfacing directly with low voltage control signals. The TPS22995 also has a Quick Output Discharge when the switch is turned off, pulling the output voltage down to a known 0-V state. The TPS22995 is available in two different 6-pin WQFN packages with both 0.4 mm and 0.5 mm options. The device is characterized for operation over the free-air temperature range of -40°C to +125°C.
Applications
- Notebook PC
- Tablets
- Industrial PC
- Discrete industrial solutions
Key features
- Input operating voltage range (VIN): 0.4 V - 5.5 V
- Bias voltage supply (VBIAS): 1.5 V - 5.5 V
- Maximum continuous current: 3.8 A
- On-resistance (RON): 18 mΩ (typ.)
- Adjustable slew rate control through external capacitor
- Quick Output Discharge (QOD): 100 Ω (typ.)
- Thermal shutdown
- Smart ON pin pulldown (RpD,ON):
- ON ≥ VIH (ION): 25 nA (max.)
- ON ≤ VIL (RPD,ON): 500 kΩ (typ.)
- Low power consumption:
- ON state (IO): 10 uA (typ.)
- OFF state (ISD): 0.1 uA (typ.)
