TPS23754PWPR

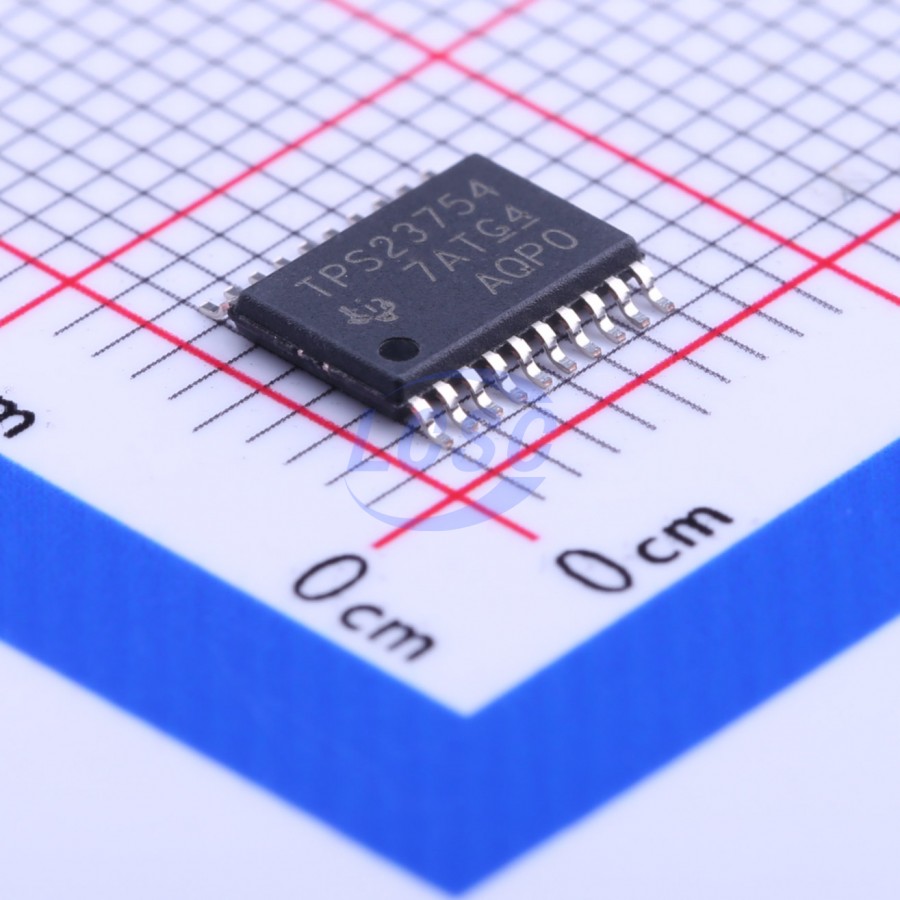

Powered Device (PD) 100V 30W HTSSOP-20-EP Power Over Ethernet (PoE) Controllers RoHS

HTSSOP-20-EPROHS3 CompliantActive

IEEE802.3at, High Efficiency, PoE Interface and DC-DC Controller

Manufacturer: TI
Manufacturer part #: TPS23754PWPR
Store part #: C181651
Package / case: HTSSOP-20-EP
Category: Power Over Ethernet (PoE) Controllers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

18,143 in stock

#C181651

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹208.41	₹208.41
10+	₹177.71	₹1,777.10
30+	₹158.57	₹4,757.10
100+	₹138.88	₹13,888.00
500+	₹118.47	₹59,235.00
1,000+	₹114.50	₹1,14,500.00

Quantity (min 1)

1 × ₹208.41

₹208.41

excl. GST

₹245.92 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,000 per reel

TPS23754PWPR

₹208.41 for 1 + GST

Specifications

Features: Overcurrent Protection;Undervoltage Protection;Thermal Protection;PD detection and disconnect identification;Dual event classification detection
Type: Powered Device (PD)
Voltage - Breakdown: 100V
Voltage - Supply (IC): 5.1V
Operating Temperature: -40℃~+125℃
Support PoE standard: IEEE 802.3 at(PoE+)
Power - Max: 30W
limiting current: 970mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.133 g

Overview

The TPS23754 and TPS23756 devices have a combined power-over-ethernet (PoE), powered device (PD) interface, and current-mode DC-DC controller optimized specifically for isolated converters. The PoE interface supports the IEEE 802.3at standard. The TPS23754 and TPS23756 support a number of input voltage ORing options including highest voltage, external adapter preference, and PoE preference. These features allow the designer to determine which power source will carry the load under all conditions. The PoE interface features the new extended hardware classification necessary for compatibility with high-power midspan power sourcing equipment (PSE) per IEEE 802.3at. The detection signature pin can also be used to force power from the PoE source off. Classification can be programmed to any of the defined types with a single resistor. The DC-DC controller features two complementary gate drivers with programmable dead time. This simplifies the design of active-clamp forward converters or optimized gate drive for highly-efficient flyback topologies. The second gate driver may be disabled if desired for single MOSFET topologies. The controller also features internal soft start, bootstrap start-up source, current-mode compensation, and a 78% maximum duty cycle. A programmable and synchronizable oscillator allows design optimization for efficiency and eases use of the controller to upgrade existing power supply designs. Accurate programmable blanking, with a default period, simplifies the usual current-sense filter design trade-offs. The TPS23754 device has a 15-V converter start-up while the TPS23756 device has a 9-V converter startup. The TPS23754-1 replaces the PPD pin with a no-connect for increased pin spacing.

Applications

IEEE 802.3at Compliant Devices
Video and VoIP Telephones
RFID Readers
Multiband Access Points
Security Cameras

Key features

Powers up to 30-W (Input) PDs
DC-DC Control Optimized for Isolated Converters
Supports High-Efficiency Topologies
Complete PoE Interface
Enhanced Classification per IEEE 802.3at With Status Flag
Adapter ORing Support
Programmable Frequency With Synchronization
Robust 100-V, 0.5-Ω Hotswap MOSFET
-40°C to 125°C Junction Temperature Range
Industry Standard PowerPAD HTSSOP-20

Alternatives

Similar parts — check the datasheet before substituting.

Part		Manufacturer	Package	Stock	Price from (excl. GST)	Action
	TPS23754PWP#C2867063TI · HTSSOP-20	TI	HTSSOP-20	100	₹209.30 · 100 in stock	View
	WS3204#C2691431NJGW · TSSOP-20-EP	NJGW	TSSOP-20-EP	2,380	₹180.68 · 2,380 in stock	View
