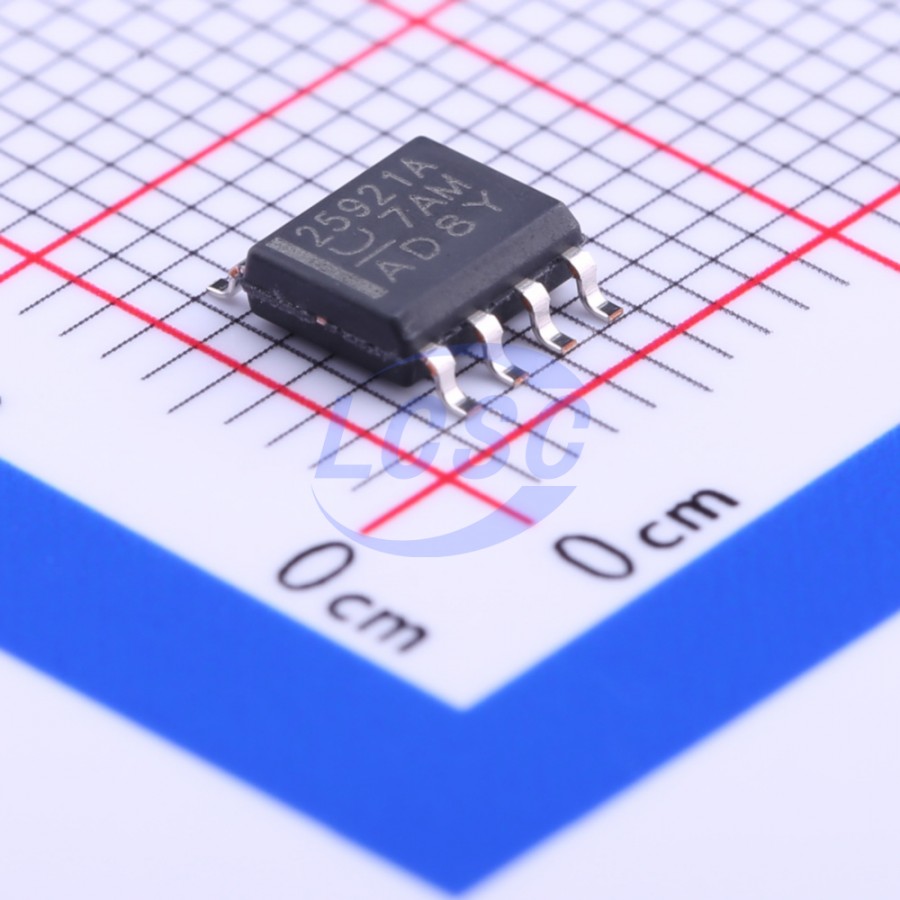

TPS25921ADR

The TPS25921 is a compact, feature rich eFuse with a full suite of protection functions. The wide operating voltage allows control of many popular DC buses. The precise ±2% current limit, at room temperature, provides excellent accuracy making the TPS25921 well suited for many system protection applications. Load, source and device protection are provided with multiple programmable features including overcurrent, overvoltage and undervoltage. 3% threshold accuracy for UV and OV, ensures tight supervision of bus voltages, eliminating the need for supervisor circuitry. Fault flag output (FLT) is provided for system status monitoring and down stream load control. For hot-plug-in boards, TPS25921 provides in-rush current control and programmable output ramp-rate. Output ramp rate is programmable using a capacitor at soft-start (SS) pin, for maximum design flexibility.

Applications

• White Goods, Appliances
• Set Top Boxes, DVD and Gaming Consoles
• HDD and SSD drives
• Smart Meters, Gas Analyzers
• Smart Load Switch
• USB Switch
• Adapter Power Devices

Key features

• 4.5 V – 18 V Operating Voltage, 20 V (Max)
• 90 mΩ RDS(ON) (Typical)
• 0.4 A to 1.6 A Adjustable Current Limit
• ±2% Accurate ILIMIT at 1A at 25°C
• ±3% Overvoltage, Undervoltage Threshold
• Programmable dV0/dt Control
• Fault Output for Thermal Shutdown, UVLO and OVP
• -40°C to 125°C Junction Temperature Range
• Auto-Retry and Latch-Off Versions
• UL2367 Recognized - File No. E169910
• UL60950 - Safe during Single Point Failure Test
