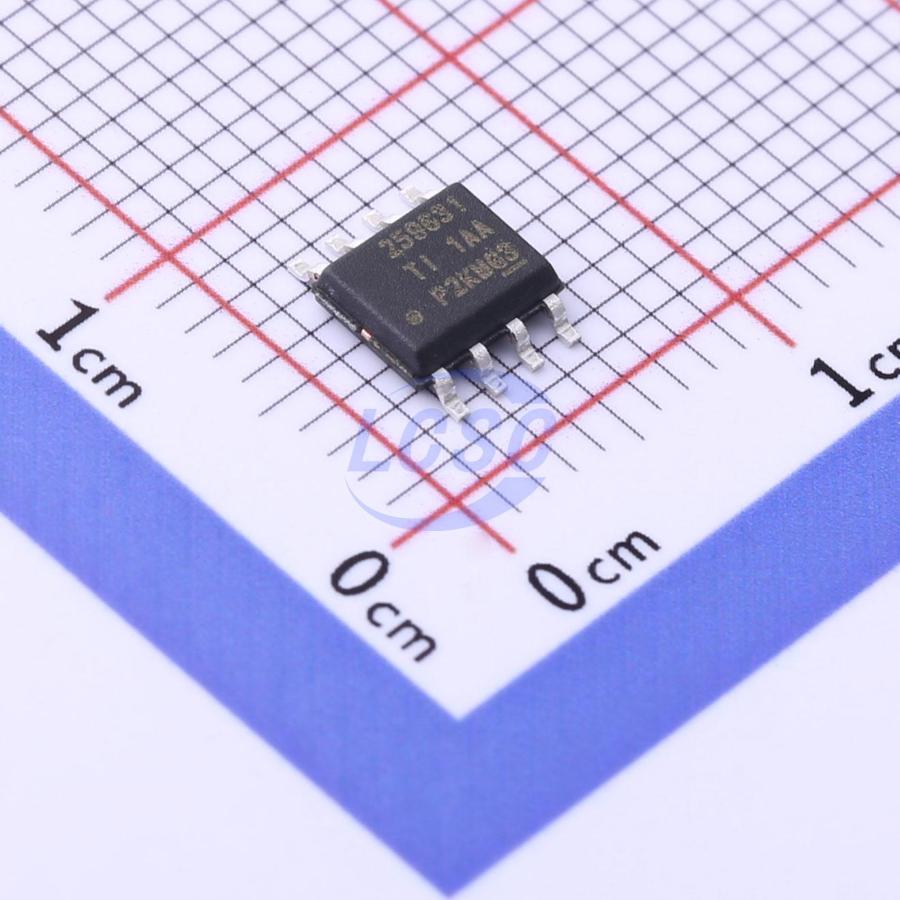

TPS259631DDAR

1 2.7V~19V SOPowerPAD-8 Current Regulation/Management RoHS

SOPowerPAD-8ROHS3 CompliantActive

TPS2596 2.7V to 19V with Precision Current Monitor and Fast Overvoltage Protection

Manufacturer: TI
Manufacturer part #: TPS259631DDAR
Store part #: C2155778
Package / case: SOPowerPAD-8
Category: Current Regulation/Management
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,335 in stock

#C2155778

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹97.80	₹97.80
10+	₹78.28	₹782.80
30+	₹68.52	₹2,055.60
100+	₹58.77	₹5,877.00
500+	₹52.91	₹26,455.00
1,000+	₹50.09	₹50,090.00

Quantity (min 1)

1 × ₹97.80

₹97.80

excl. GST

₹115.40 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

TPS259631DDAR

₹97.80 for 1 + GST

Specifications

Features: Overcurrent Protection;Short-Circuit Protection;Overvoltage clamping protection;Under-voltage lockout;Thermal Protection
Trigger Current: 125mA~2A
Width: 3.9mm
FET Type: Integrated FET
Length: 4.91mm
Height: 1.7mm
Number of Channels: 1
Voltage - Supply: 2.7V~19V
RDS(on): 131mΩ
Operating Temperature: -40℃~+125℃

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.11 g

Overview

The TPS2596xx series of electronic fuses (integrated FET hot-swap devices) are highly integrated circuit protection and power management solutions in a small package. These devices provide multiple protection modes with few external components and can very effectively protect against overloads, short circuits, voltage surges, and excessive inrush currents. The output current limit level can be set via a single external resistor. Accurate sensing of the output load current can also be achieved by measuring the voltage drop across the current limit resistor. For applications with special requirements for inrush current, the output slew rate can be set via a single external capacitor. For the TPS25962x models, in the event of an input overvoltage condition, the internal clamping circuit limits the output to a safe, fixed maximum voltage (pin-selectable) without the need for external components. The TPS25963x models allow the user to set a specified overvoltage cut-off threshold. These devices are rated for an operating junction temperature range of -40°C to +125°C.

Applications

Energy meter
UL 60335-1 15W LPC applications in appliances
Refrigerators
Dishwashers
Washing machines and dryers
Set-top boxes
IP network cameras

Key features

Low on-resistance: Ron = 89mΩ (typical)
Active-high enable input with adjustable UVLO
Available overvoltage protection options:
Fast overvoltage clamp (pin-selectable thresholds: 3.8V, 5.7V, and 13.8V), 5μs response time (typical)
Adjustable OVLO, 1.3μs response time (typical)
Adjustable current limit with load current monitor output (ILM)
Current range: 0.125A to 2A
Current limit accuracy:
±10.4% (maximum) across full current range
±5.5% (maximum) at 1A current limit
Immune to electrical fast transients (IEC 61000-4-4)
Adjustable output slew rate control (dVdt)
Overtemperature protection (OTP)
Fault indicator pin (FLT)
UL2367 certification in process
IEC 62368 CB certification (pending)
Small footprint: 4.91mm × 3.9mm SOIC package
