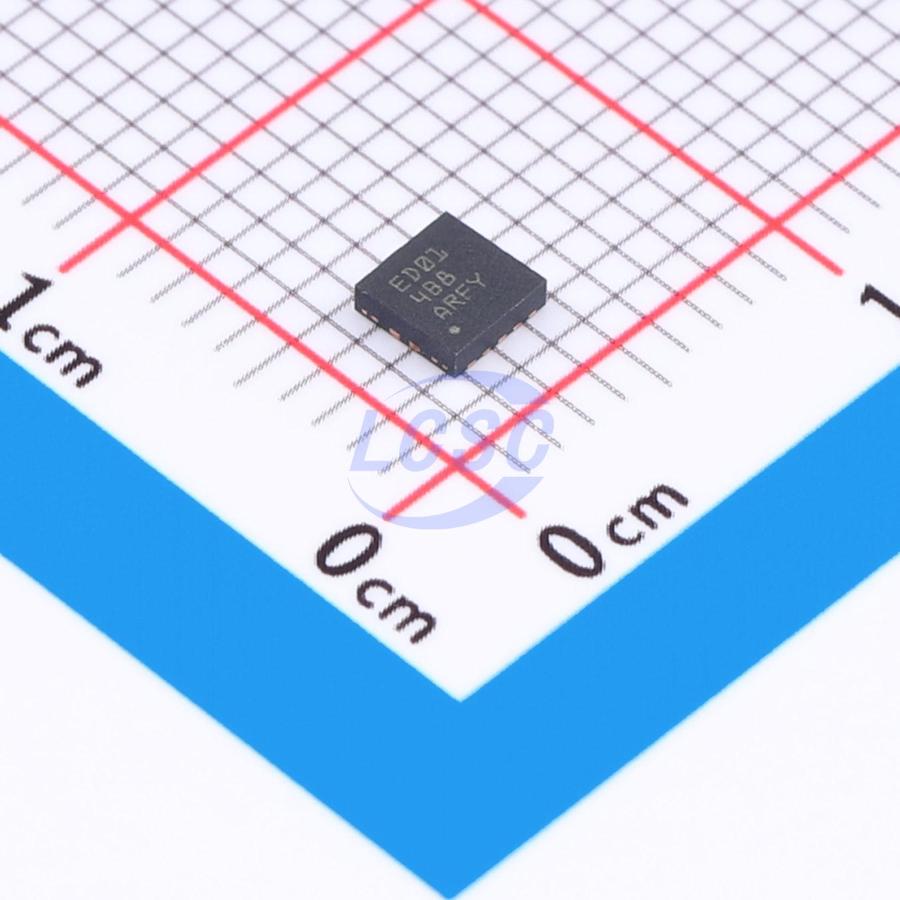

TPS26621DRCR

Surge Protection IC 4.5V~60V SON-10(3x3)

SON-10(3x3)ROHS3 CompliantActive

IC SURGE STOPPER 4.5V~60V SON-10(3x3)

Manufacturer: TI
Manufacturer part #: TPS26621DRCR
Store part #: C1848341
Package / case: SON-10(3x3)
Category: Current Regulation/Management
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

8,068 in stock

#C1848341

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹204.39	₹204.39
10+	₹172.03	₹1,720.30
30+	₹154.43	₹4,632.90
100+	₹134.23	₹13,423.00
500+	₹125.33	₹62,665.00
1,000+	₹121.42	₹1,21,420.00

Quantity (min 1)

1 × ₹204.39

₹204.39

excl. GST

₹241.18 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TPS26621DRCR

₹204.39 for 1 + GST

Specifications

Features: Overcurrent Protection;Short-Circuit Protection;Overvoltage clamping protection;Under-voltage lockout;Thermal Protection
Voltage - Supply: 4.5V~60V
Operating Temperature: -40℃~+125℃
FET Type: Integrated FET
Trigger Current: 25mA~880mA
Width: 3mm
Length: 3mm
Number of Channels: 1
RDS(on): 478mΩ

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.124 g

Overview

The TPS2662x series of high-voltage electronic fuses feature a compact design, rich functionality, and a comprehensive set of protection features. The wide power input range of 4.5V to 60V enables control of many commonly used DC bus voltages. The device can withstand and protect loads powered by positive and negative power supplies up to ±60V. The TPS26624 and TPS26625 devices support input and output reverse polarity protection. The integrated back-to-back FETs provide reverse current blocking, making the device suitable for systems that require maintaining the output voltage during power failures and under-voltage conditions. Load, power supply, and device protection have many adjustable characteristics, including overcurrent, output slew rate, overvoltage, and under-voltage thresholds. The reliable internal protection control module and high rated voltage of the TPS2662x series help simplify system design for surge protection. The TPS26620, TPS26622, and TPS26624 have a latching function, while the TPS26621, TPS26623, and TPS26625 have an automatic retry function to handle overheat and overcurrent fault events. These devices come in a 3mm×3mm 10-pin SON package and are rated for an operating temperature range of -40°C to +125°C.

Applications

PLC I/O modules
AC and servo drives
Sensors and control
Thermostats
PoE high-side protection

Key features

Operating voltage 4.5V to 60V, absolute maximum 62V
Integrated reverse input polarity protection down to –60V
Integrated reverse output polarity protection down to –(60 - VIN) (TPS26624 and TPS26625 only)
Integrated back-to-back MOSFETs with total RON of 478mΩ
Adjustable current limit 25mA to 880mA (±5% accuracy at 880mA)
Load protection during surge with minimal external components (IEC 61000-4-5)
Electrical fast transient immunity per IEC 61000-4-4
Fast reverse current blocking response (0.3μs)
Adjustable UVLO, OVP cutoff, output slew rate control for inrush current limiting
38V fixed overvoltage clamp (TPS26622 and TPS26623 only)
Low quiescent current (340μA operating, 12μA shutdown)
Small footprint – 10L (3mm×3mm) VSON
UL 2367 certified
R|LM| ≥7.5kΩ (maximum current 0.91A)
IEC 62368-1 certified
