XI'AN Aerosemi Tech
MT9700-N1 Active High 2A Load Switch SOT-23-5 Power Distribution Switches, Load Drivers RoHS
From
₹7.57
1,78,379 in stock
TokmasDatasheet (PDF)

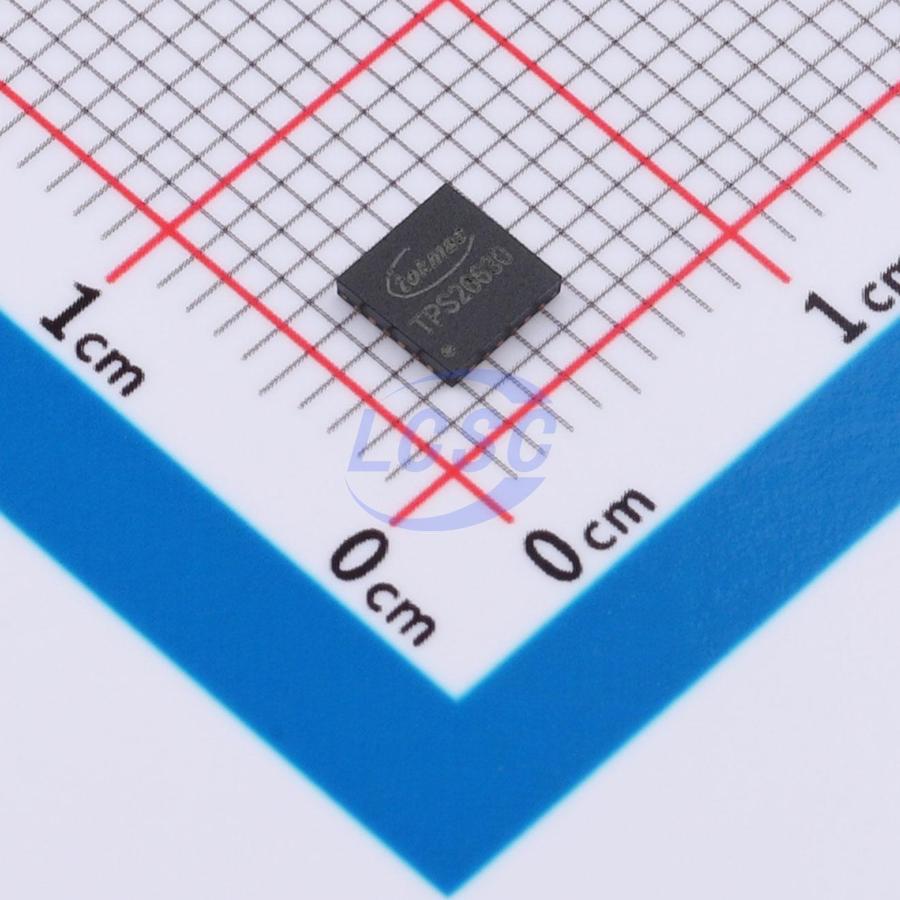

TPS26630RGER(TOKMAS)
QFN-24(4x4) Power Distribution Switches, Load Drivers
QFN-24(4x4)RoHSActive
- Manufacturer
- Tokmas
- Manufacturer part #
- TPS26630RGER(TOKMAS)
- Store part #
- C52940996
- Package / case
- QFN-24(4x4)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,468 in stock
#C52940996
Stock & price checked 20 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹153.93 | ₹153.93 |
| 10+ | ₹126.97 | ₹1,269.70 |
| 30+ | ₹111.98 | ₹3,359.40 |
| 100+ | ₹95.23 | ₹9,523.00 |
| 500+ | ₹87.83 | ₹43,915.00 |
| 1,000+ | ₹84.37 | ₹84,370.00 |
1 × ₹153.93
₹153.93
excl. GST
₹181.64 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPS26630RGER(TOKMAS)
₹153.93 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Width
- 4mm
- Features
- Overcurrent Protection;Short-Circuit Protection;Under-voltage lockout;Thermal Protection;Overload protection
- FET Type
- Integrated FET
- Length
- 4mm
- RDS(on)
- 30mΩ
- Operating Voltage
- 4.5V~40V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 2a
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.144 g
Overview
Key features
- 4.5V to 40V operating input range
- Integrated 40V, 30mΩ Ron hot-swap N-channel FET
- Reverse current blocking within 0.2µs
- Integrated current sensing with detection output
- Adjustable current limit from 0.6A to 5A
- Adjustable UVLO, overvoltage shutdown, and output slew rate control for inrush current limiting
- Power good output
- Overcurrent fault response with auto-retry
- Models supporting 1.5x pulsed overcurrent
