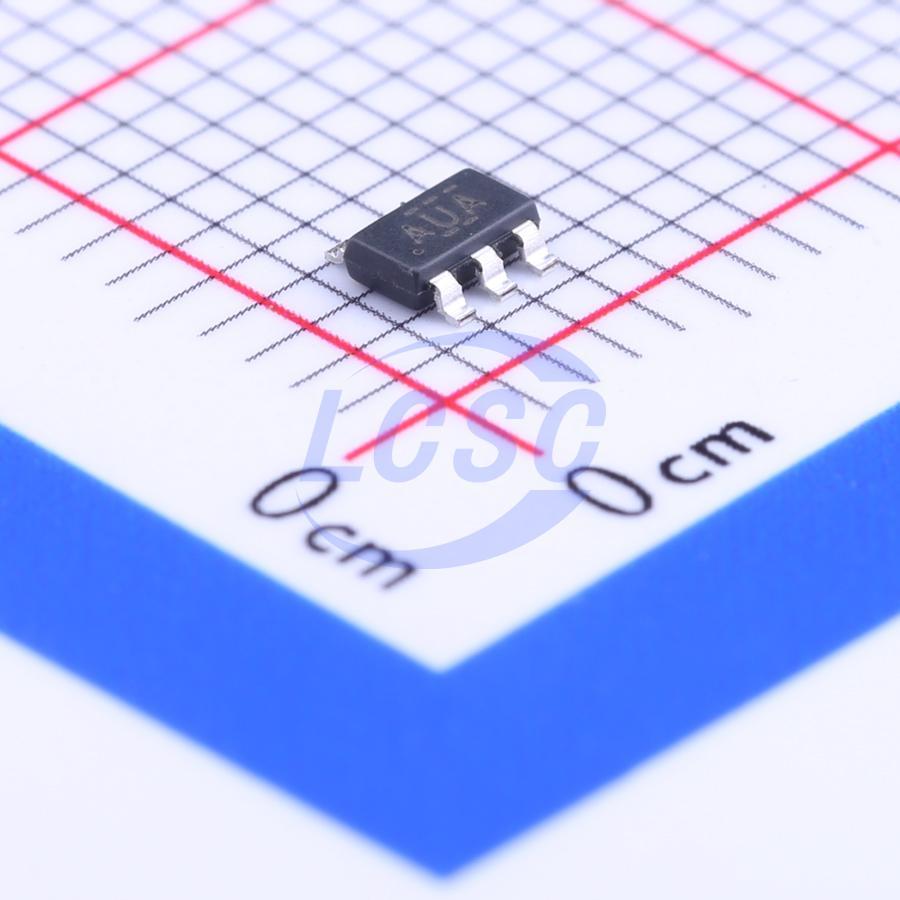

TPS27081ADDCR

The TPS27081A is a high-side load switch that integrates a power PFET and a control NFET in an extremely small package. The TPS27081A provides industry-standard ESD protection on all pins for better ESD compatibility with other board components. The TPS27081A translates ON/OFF logic signal levels to the VIN level, allowing CPUs or MCUs with logic as low as 1 V to control higher-voltage power rails without an external level shifter. Rapidly switching a large output capacitance CL via fast ON/OFF logic signals can generate excessive inrush current. To control load inrush current, connect resistor R2 and add external capacitor C1. To configure the TPS27081A for a specific slew rate, refer to the Application and Implementation section. A pull-up resistor R1 is required in standby power switch applications. In applications where inrush current control is not needed, connect the R2 pin of the TPS27081A to system ground. For all available packages, refer to the Orderable Addendum at the end of the datasheet.

Applications

• High-side load switch
• Inrush current control
• Power sequencing and control
• Standby power isolation
• Portable power switch

Key features

• Adjustable turn-on and turn-off slew rate control via external R1, R2, and C1
• Wide supply input range: 1.2V to 8V
• Integrated NMOS for PFET control
• NMOS on/off control logic interface: 1V to 8V
• Full ESD protection on all pins
• HBM 2kV, CDM 500V
• Ultra-low leakage current in standby (typical 100 nA)
• Compact 6-pin SOT(DDC) package, 2.9mm × 2.8mm × 0.75mm
