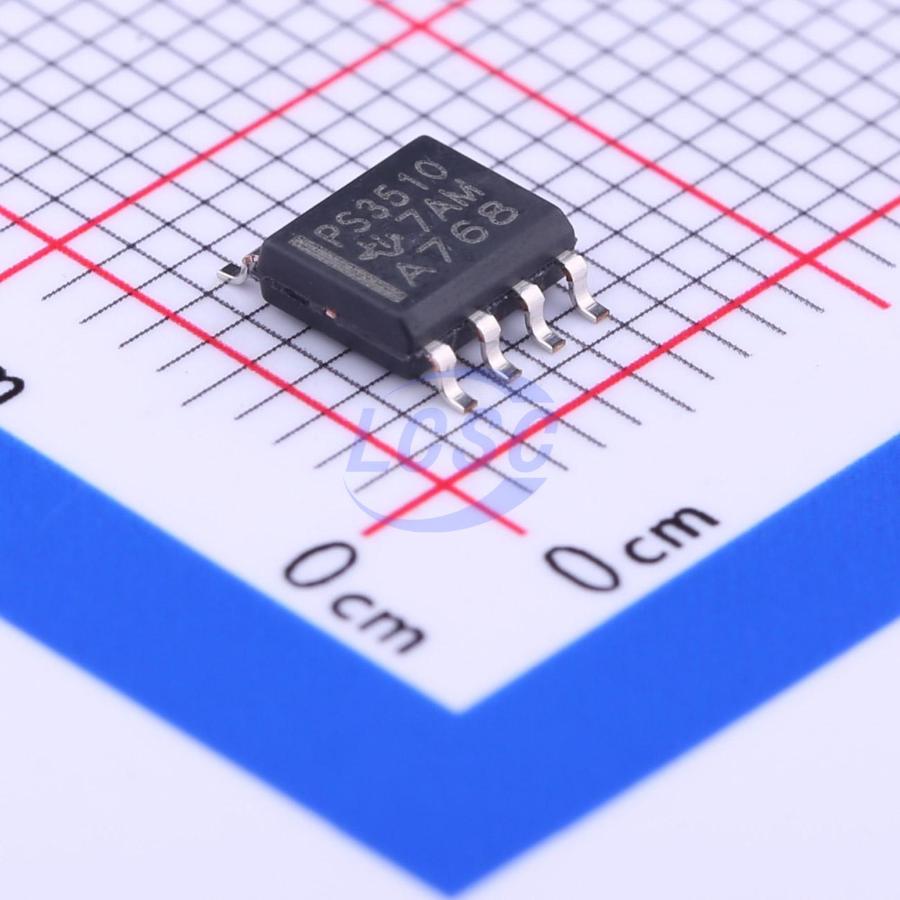

TPS3510DR
200ms Manual reset input Active Low 4V~15V 3 SOIC-8 Supervisors RoHS
PC Power Supply Supervisors
- Manufacturer
- TI
- Manufacturer part #
- TPS3510DR
- Store part #
- C192173
- Package / case
- SOIC-8
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,953 in stock
#C192173
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹136.24 | ₹136.24 |
| 10+ | ₹120.38 | ₹1,203.80 |
| 30+ | ₹105.60 | ₹3,168.00 |
| 100+ | ₹94.53 | ₹9,453.00 |
| 500+ | ₹89.96 | ₹44,980.00 |
| 1,000+ | ₹87.57 | ₹87,570.00 |
1 × ₹136.24
₹136.24
excl. GST
₹160.76 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TPS3510DR
₹136.24 for 1 + GST
Specifications
- Reset Timeout
- 200ms
- Operating Temperature
- -40℃~+85℃@(TA)
- output type
- Open-drain
- Function
- Manual reset input
- Reset Active Level
- Active Low
- standby current
- 1mA
- Voltage - Supply
- 4V~15V
- ChipType
- Voltage monitor
- Threshold Voltage
- 3.3V;5V;12V
- Number of Voltages Monitored
- 3
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.173 g
Overview
The TPS3510/1 is designed to minimize external components of personal-computer switching power supply systems. It provides protection circuits, power good indicator, fault protection output (FPO) and PSON (right arrow) control. Overvoltage protection (OVP) monitors 3.3 V, 5 V, and 12 V (12-V signal detects via VDD pin). Undervoltage protection (UVP) monitors 3.3 V and 5 V. When an OV or UV condition is detected, the power good output (PGO) is set to low and FPO (overline) is latched high. PSON from low to high resets the protection latch. UVP function is enabled 75 ms after PSON (right arrow) is set low and debounced. Furthermore, there is a 2.3-ms delay (and an additional 38-ms debounce) at turnoff. There is no delay during turnon. Power good feature monitors PGI, 3.3 V and 5 V and issues a power good signal when the output is ready. The TPS3510/1 is characterized for operation from -40 ℃ to 85 ℃
Applications
- PC switching power supply systems
Key features
- Overvoltage Protection and Lockout for 12 V, 5 V, 3.3 V
- Undervoltage Protection and Lockout for 5 V and 3.3 V
- Fault Protection Output With Open-Drain Output Stage
- Open-Drain Power Good Output Signal for Power Good Input, 3.3 V and 5 V
- Power Good Delay; 300-ms TPS3510, 150-ms TPS3511
- 75-ms Delay for 5-V and 3.3-V Power Supply
- Short-Circuit Turnon Protection
- 2.3-ms PSON Control to FPO Turnoff Delay
- 38-ms PSON Control Debounce
- 73-μs Width Noise Deglitches
- Wide Supply Voltage Range From 4 V to 15 V
