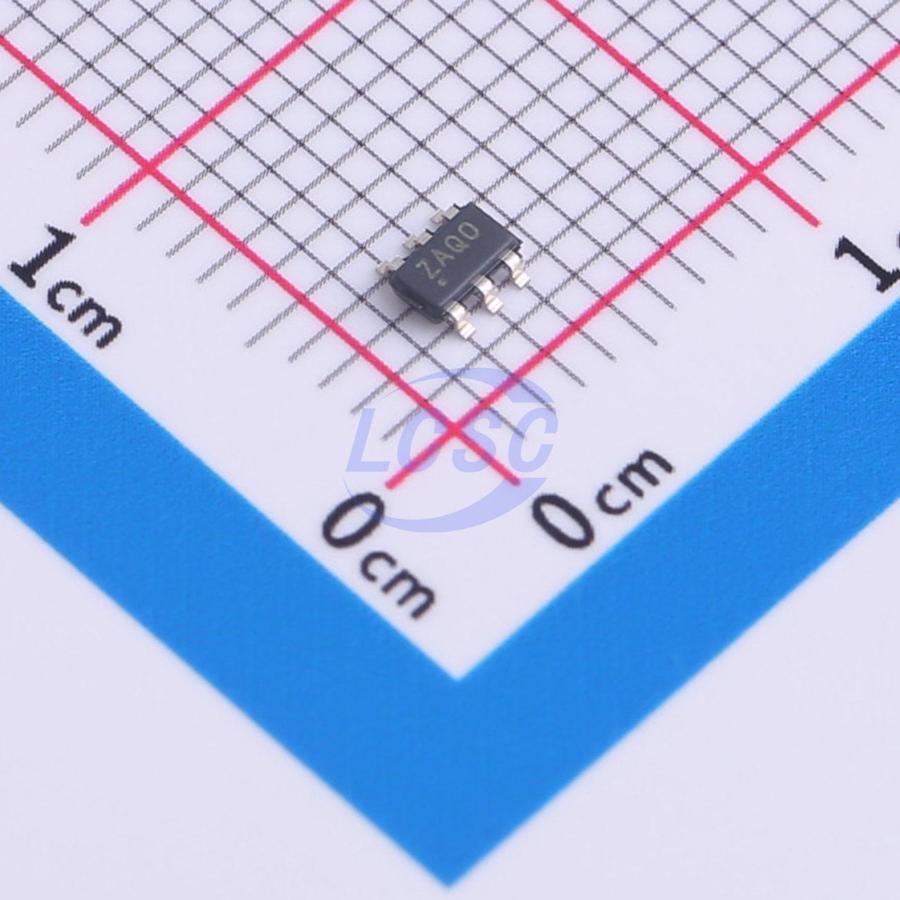

TPS3702CX33DDCR

TPS3702 is an integrated overvoltage and undervoltage window detector in a compact SOT-6 package. This high-accuracy voltage monitor is well-suited for systems with tight power supply tolerances operating from low-voltage rails. The device offers two threshold hysteresis options of 0.55% and 1.0% to prevent false reset signals when the monitored supply voltage is within its nominal operating range. Built-in glitch suppression and noise filtering further eliminate false resets caused by spurious signals. The TPS3702 requires no external resistors to set the overvoltage and undervoltage reset thresholds, improving overall accuracy, reducing solution size, and lowering solution cost. Two available threshold voltages per device are selectable via the SET pin. Separate SENSE input and VDD pins address redundancy requirements in safety-critical and high-reliability systems. The device also provides independent reset outputs for the OV and UV pins; the UV and OV pins can be connected together in an open-drain configuration. The device features a low typical quiescent current of 7μA and is tested for operation over the industrial temperature range (−40°C to 125°C).

Applications

• FPGA and ASIC applications
• DSP-based systems
• Industrial control systems
• Factory automation
• Consumer electronics
• Building automation
• Motor drives

Key features

• Input voltage range: 2V to 18V
• High threshold accuracy: 0.25% (typical), 0.9% (-40°C to 125°C)
• Fixed window thresholds optimized for nominal supply rails between 1V and 5V
• Open-drain outputs for overvoltage and undervoltage indication
• Internal glitch rejection
• Adjustable threshold via SET pin
• Low quiescent current: 7μA (typical)
• Internal threshold hysteresis: 0.55% and 1.0%
• SOT-6 package
