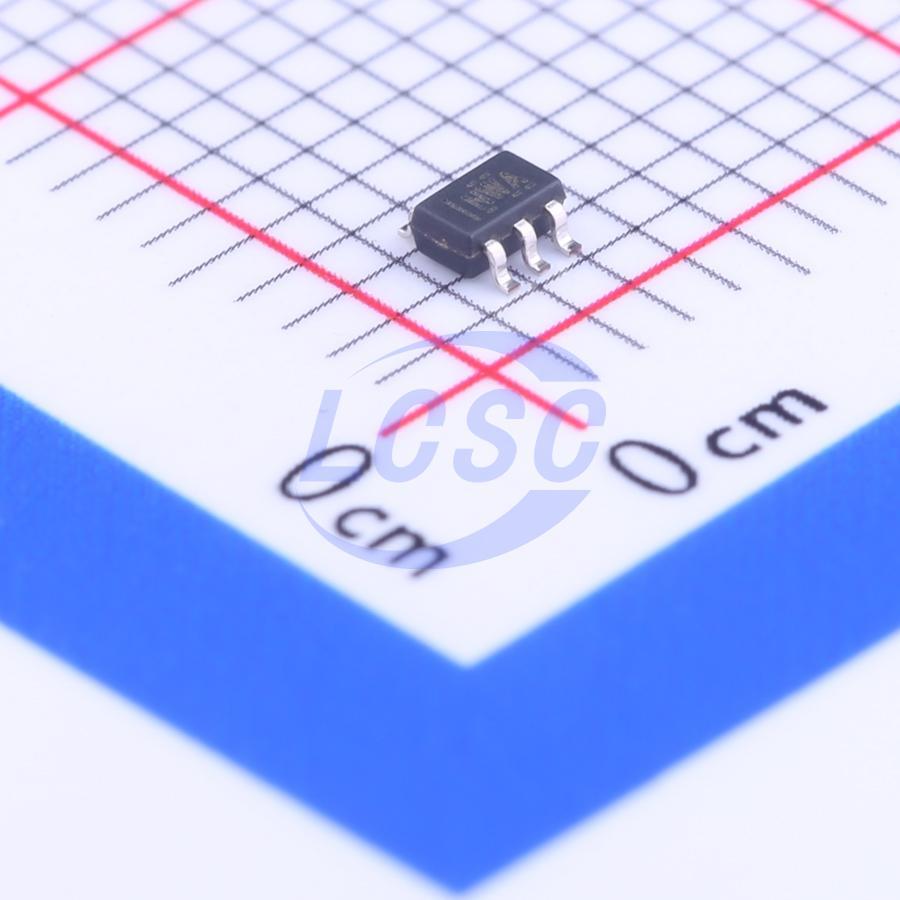

TPS3801K33DCKR

The TPS380x family of supervisory circuits monitor supply voltages to provide circuit initialization and timing supervision, primarily for DSPs and other processor-based systems. These devices assert a push-pull RESET signal when the SENSE (adjustable version) or VDD (fixed version) drops below a preset threshold. The RESET output remains asserted for the factory programmed delay time after the SENSE or VDD return above its threshold. The TPS380x devices, except the TPS3801-01, incorporate a manual reset input (MR). A low level at MR causes RESET to become active. The TPS380x uses a precision reference to achieve an overall threshold accuracy of 2% - 2.5%. These devices are available in a 5-pin SC-70 package, which is only about half the size of a 5-pin SOT-23 package. The TPS380x devices are fully specified over a temperature range of -40°C to +85°C.

Applications

• Applications Using DSPs, Microcontrollers, or Microprocessors
• Wireless Communication Systems
• Portable/Battery-Powered Equipment
• Programmable Controls
• Intelligent Instruments
• Industrial Equipment
• Notebook/Desktop Computers
• Automotive Systems

Key features

• Small, 5-Pin SC-70 (SOT-323) Package
• Supply Current of 9 μA
• Power-On Reset Generator With Fixed Delay Time: TPS3800 = 100 ms, TPS3801 = 200 ms, TPS3802 = 400 ms
• Precision Supply Voltage Monitor: 1.8 V, 2.5 V, 2.7 V, 3 V, 3.3 V, 5 V, and Adjustable
• Manual Reset Input (Except TPS3801-01)
• Temperature Range: -40°C to +85°C
