TPS3803-01DCKR

The TPS3803 and TPS3805 families of supervisory circuits provide circuit initialization and timing supervision, primarily for DSPs and processor-based systems. The TPS3803G15 device has a fixed-sense threshold voltage VΠ set by an internal voltage divider, whereas the TPS3803-01 has an adjustable SENSE input that can be configured by two external resistors. In addition to the fixed sense threshold monitored at VDD, the TPS3805 devices provide a second adjustable SENSE input. RESET is asserted in case any of the two voltages drops below VΠ. During power on, RESET is asserted when supply voltage VDD becomes higher than 0.8 V. Thereafter, the supervisory circuit monitors VDD (and/or SENSE) and keeps RESET active as long as VDD or SENSE remains below the threshold voltage VΠ. As soon as VDD (SENSE) rises above the threshold voltage VΠ, RESET is deasserted again. The product spectrum is designed for 1.5 V, 3.3 V, and adjustable supply voltages. The devices are available in a 5-pin SC-70 package. The TPS3803 and TPS3805 devices are characterized for operation over a temperature range of -40°C to +85°C.

Applications

• Applications Using DSPs, Microcontrollers, or Microprocessors
• Wireless Communication Systems
• Portable/Battery-Powered Equipment
• Programmable Controls
• Intelligent Instruments
• Industrial Equipment
• Notebook/Desktop Computers
• Automotive Systems

Key features

• Single Voltage Detector (TPS3803): Adjustable/1.5 V
• Dual Voltage Detector (TPS3805): Adjustable/3.3V
• High ±1.5% Threshold Voltage Accuracy
• Supply Current: 3μA Typical at VDD = 3.3V
• Push/Pull Reset Output (TPS3805)
• Open-Drain Reset Output (TPS3803)
• Temperature Range: -40°C to +85°C

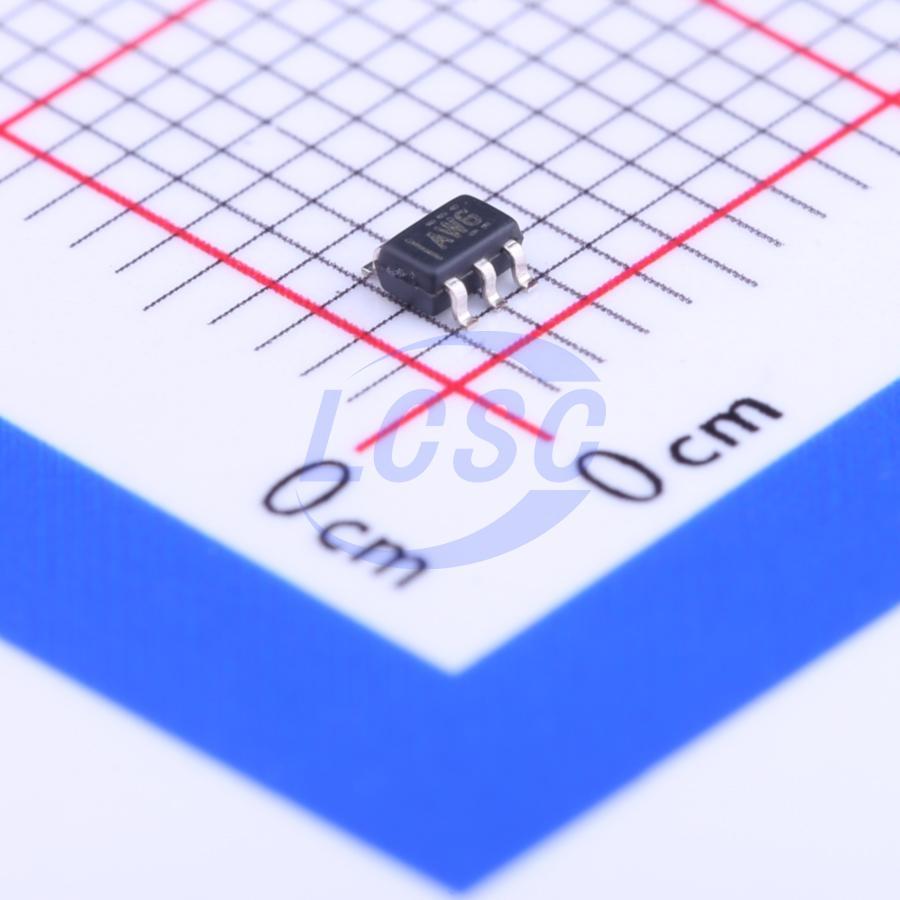

• 5-Pin SC-70 Package
